BUTFERING "SUR 313 RRR" WIDE BELT (50" - 90", 3-HEAD)
Equipment Location: Zeeland, MI
SX-320036   |  Lot # 2471-27
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Amanda Solomon
(877) 580-5844 ext. 374
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com



Opening Bid: $ 3,500   Reserve Not Met
The current Bid has not reached or exceeded the Seller's Reserve price for this Lot.
This Lot will not be sold until the current Bid has reached or exceeded the Seller's Reserve price for this Lot.
Next Bid Increment: $ 3,500


Your Bid:
(
Click or Enter Bid)
  Place Your Bid

Your Proxy Bid:
  Place Proxy Bid  Help

Proxy Bid:

A Proxy bid is the maximum dollar amount you are willing to bid for a specific lot. The system automatically bids up to that amount on your behalf against competing bidders (if any).

EXAMPLE: You enter a "Max Proxy Bid" amount of $500 when the lot's reserve is met and the high bid is $100.  Your Proxy Bid automatically raises your bid to the next minimum bid amount, which in this example is $125, and thus makes you the current high bidder.  When a competing bidder bids $150, the system again automatically places a next increment bid of $175 for you, making you the high bidder again.  If a competing bidder bids again, proxy bidding continues until your "Max Proxy Bid" of $500 is exceeded by a bid from a competing bidder. If your high bid is not exceeded by the end of the Auction, then you win the lot.

ADVANTAGES: Should your schedule prevent you from participating near the closing of an Auction, your "Proxy Bid" quickly bids on your behalf.  Also, when your and a competing bidder's proxy bids are of equal amount ($500 in the example) at the end of the Auction, your bid wins, because you entered your $500 "Proxy Bid" amount first.

# of Bids: 0
End Time:
Auction Closed.
Auto Refresh:   Enable Refresh Every

Brand/Model: BUTFERING "SUR 313 RRR"
Year MFG: 2007
Machine Type: WIDE BELT (50" - 90", 3-HEAD)
Serial #: 0412200061/62
Elect./Voltage: 460 V, 60 Cy, 3 Ph.
Location: Zeeland, MI
Condition: Requires repair
Dimensions: 0" L  x  0" W  x  0" H
Weight: Lbs (estimate)
Loading: Rigger Required
Comment: Bottom 3-Head w/ Powered infeed and Tie-in Conveyor!
Buyer Premium: 12.5%

Description:

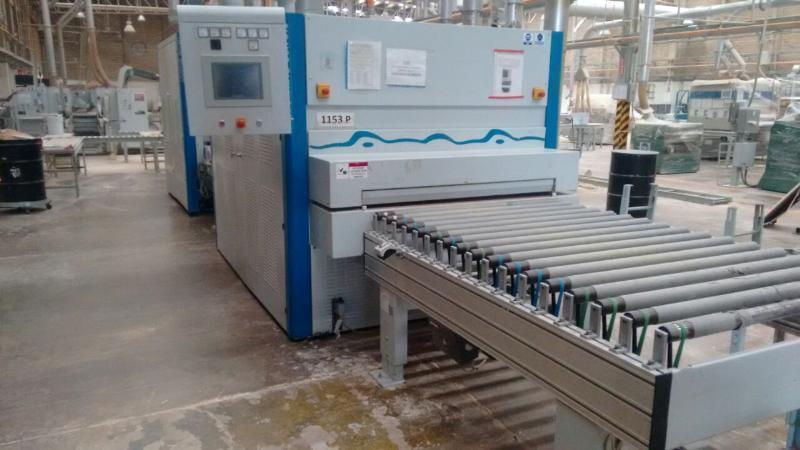

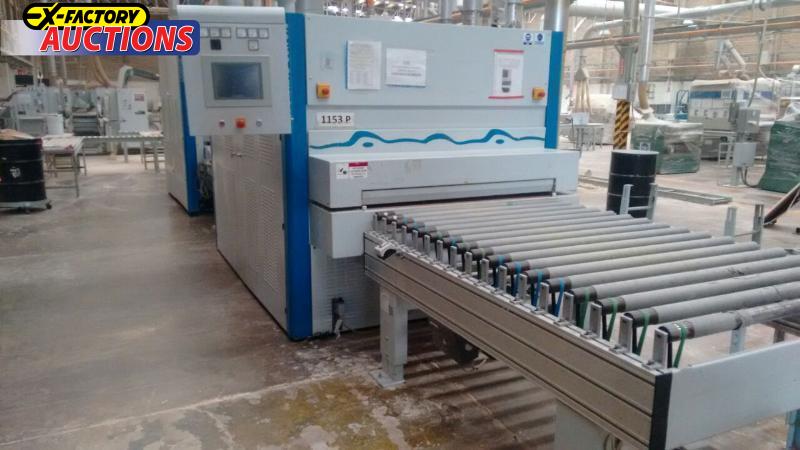

BUTFERING - Profiline, ...SUR 313 RRR  Bottom Wide Belt Sander with Powered Infeed & Connect to Top Sander (...see SX-012684 - OPTIMAT SCO 413 RRRR, ...Top Head Wide Belt)

Bottom 3-Head, 53" Width Capacity Wide Belt Sander.

Head Configuration

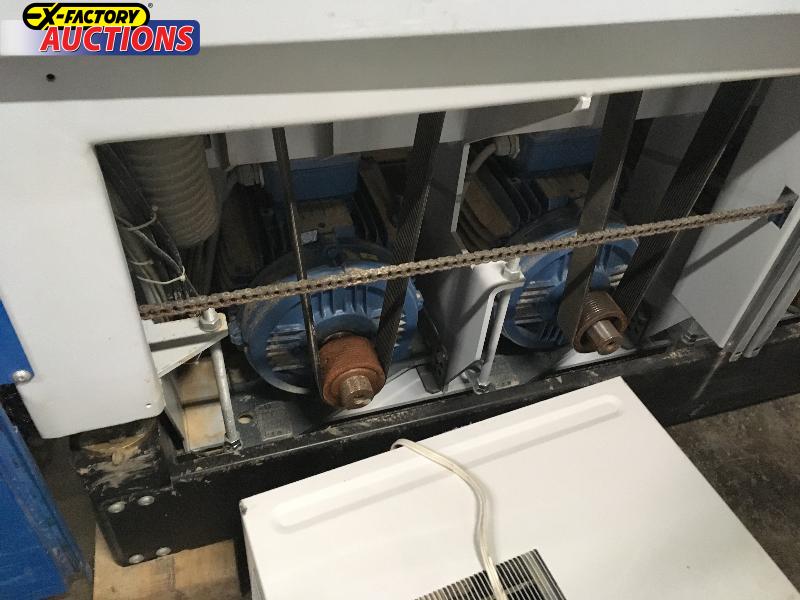

  • 1st Head: Steel Contact Roll, 240 mm (9-1/2") dia., 22 kW (30 HP) motor.
  • 2nd Head: Rubber covered Contact Roll, 65 Shore, 320 mm (12-1/2") dia., 22 kW (30 HP) motor; Rotation with or against feed direction.
  • 3rd Head: Rubber covered Contact Roll, 55 Shore, 320 mm (12-1/2") dia., 18.5 kW (25 HP) motor; Rotation with or against feed direction.

    Features & Specifications:
  • Outfeed Rotary Panel cleaning brush with: Abrasive grit, 5.5 kW (7.5 HP) motor.
  • 950 mm (37") Section of free-standing power driven infeed roller track.
  • 54" x 103" Abrasive belts, electronic abrasive belt tracking, and all heads with Servo driven grit compensation and motorized positioning. Abrasive belt Air Jet blowers on all heads.
  • Vacuum conveyor belt feed with: Variable feed speed 5 - 25 MPM (16-1/2 - 82 FPM); automatic conveyor belt tracking; infeed & outfeed spring loaded rubberized holddown rollers; outfeed extension for linking to transfer conveyor, connecting Bottom head to Top head Sander.
  • Constant pass line of 900 mm (35-1/2") by adjustment upper machine frame via (4) large dia. threaded spindles.
  • Tie In conveyor: To connect to Top Head Sander; 1,500 mm (59"), 5 - 25 MPM (16-1/2" - 82 FPM), synchronized with machine bed conveyor speed.
  • Color touch screen control with: (1,000) Programs, 1/8" - 5-1/2" motorized thickness adjustment; "quick-set" automatic thickness adjustment with LED readout; infeed panel "over-thickness" sensor.

    Complete with:
  • Infeed & outfeed emergency stops; safety interlocks on all doors; roller infeed conveyor extension; motor load meters and electronic brakes for all sanding head motors.
  • Operator and Maintenance manuals (in Spanish); spare parts drawings, spare parts list, and wiring diagram.

    NOTE:
  • BUTFERING - PROFILINE SUR, ...Bottom Sander and OPTIMAT SCO, ...Top Sander are being offered as a "Complete System/Line" with Infeed & Transfer Connect; (1) Common Control for both machines to operate as a Line.  Copy of original quote with detailed specifications is available upon request.

    Asking Price with this "SX-012681" listing is for the Bottom Head Sander only - Open to reasonable offers.

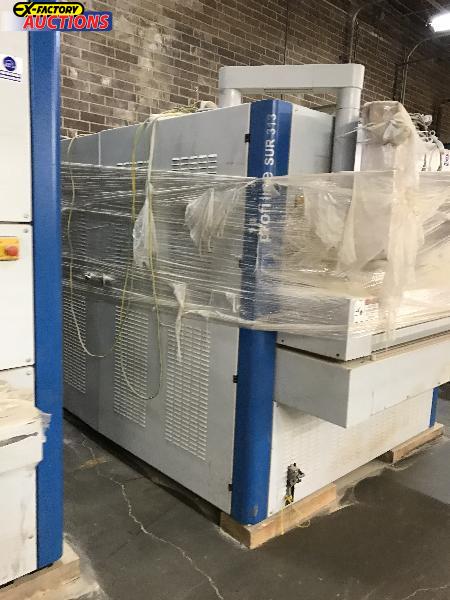

    Machine State: Cleaned & placed in storage

    Inspection: Available for Inspection (By Appointment Only)
Final Removal Date: 2/15/2023
