FIN "SC2R 1600" LAMINATING LINE (TOP & BOTTOM)
LA-230099   |  Lot # 003
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Kevin Welker
(877) 580-5844 ext. 316
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com

[LA-011173]


This is a non-auction item up for sale. If interested, please call Kevin Welker at (877) 580-5844 ext. 316 or click on the link below.

Item Sold

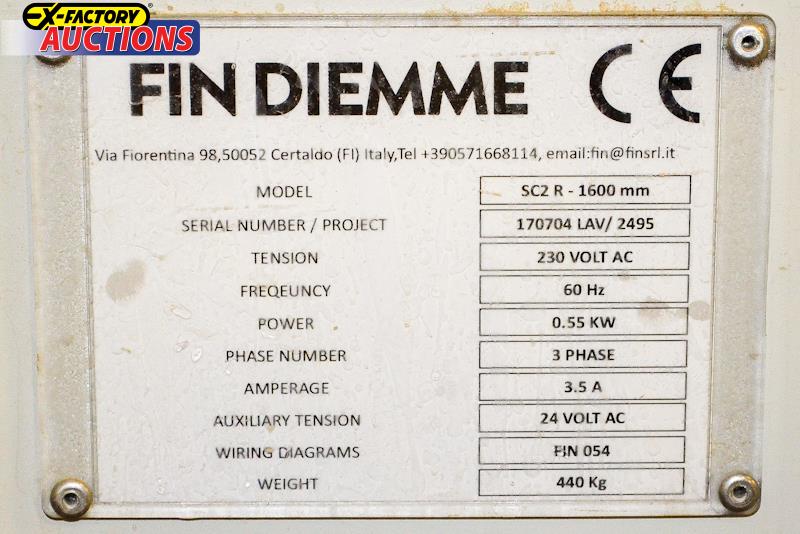

Brand/Model: FIN "SC2R 1600"
Year MFG: 2017
Machine Type: LAMINATING LINE (TOP & BOTTOM)
Serial #: 170704
Elect./Voltage: 230 V, 60 Cy, 3 Ph.
Location: COMMERCE, GA
Value New: $ 80,000
Negotiable Price: $      Make an Offer
Condition: Excellent condition
Dimensions: 448" L  x  88" W  x  75" H
Weight: 5,336 Lbs (estimate)
Loading: Rigger Required
Comment: Barely looks used!

Description:

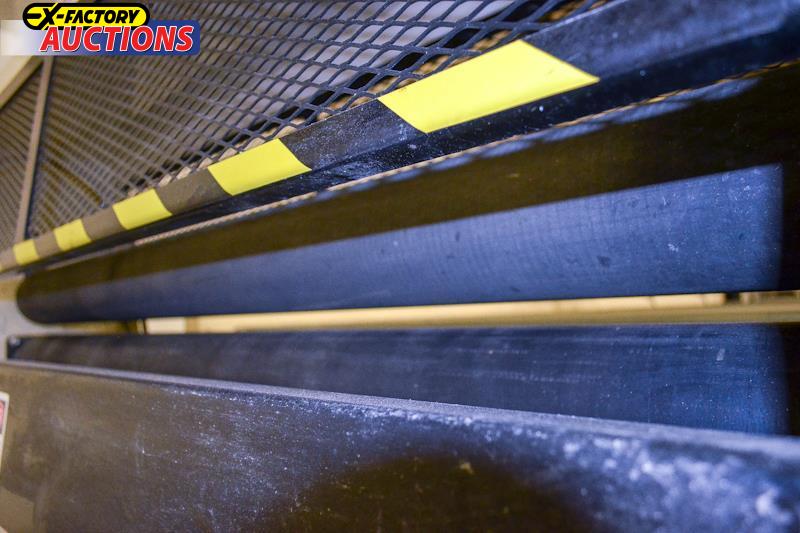

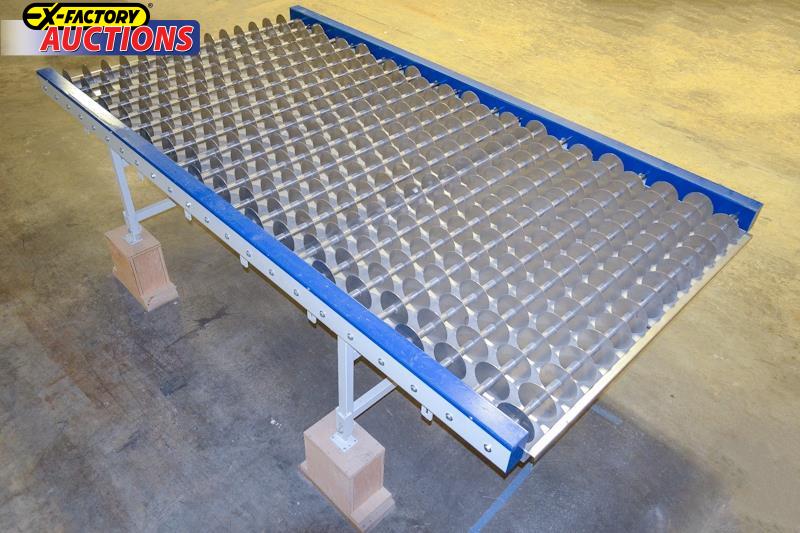

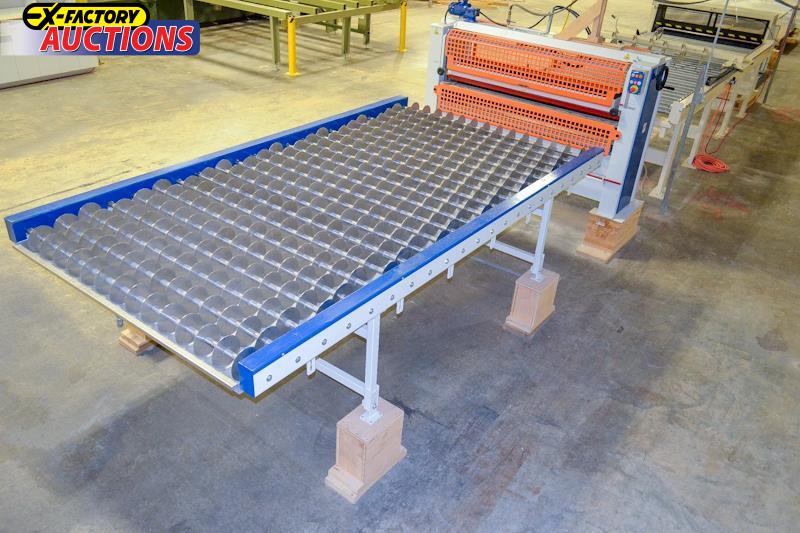

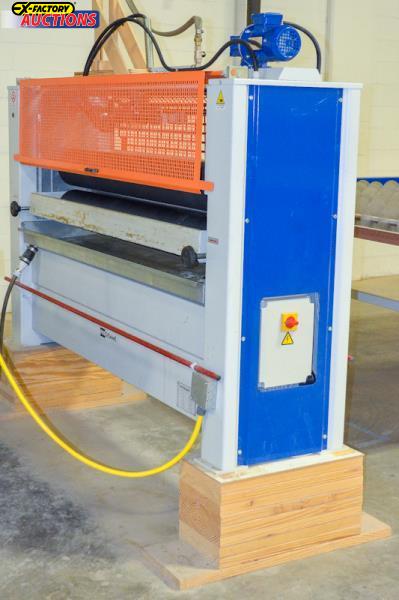

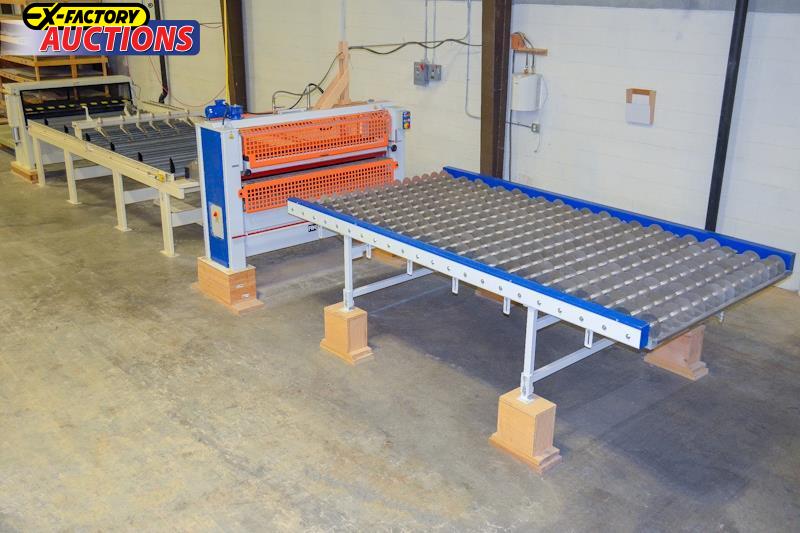

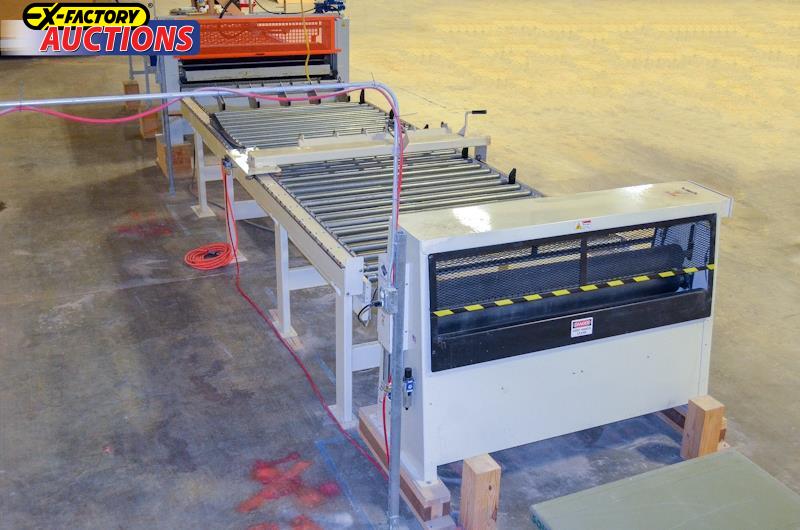

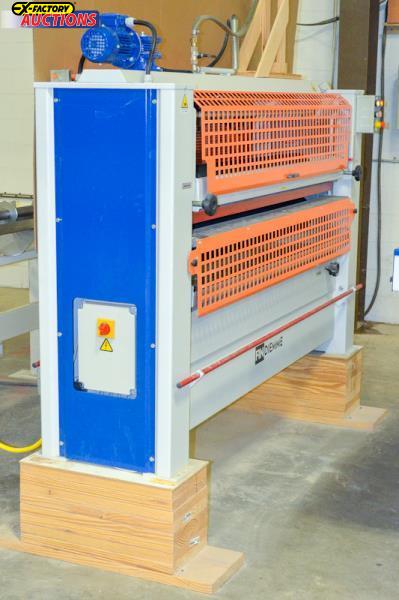

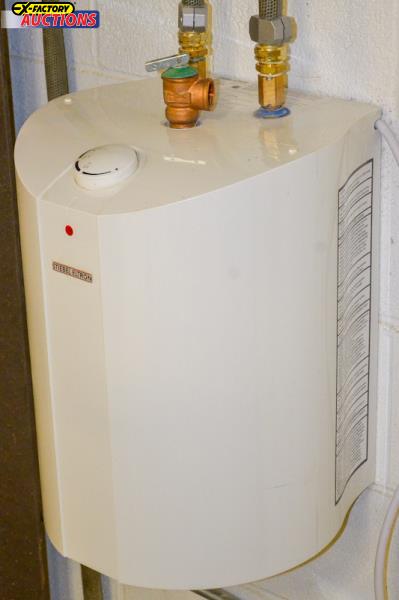

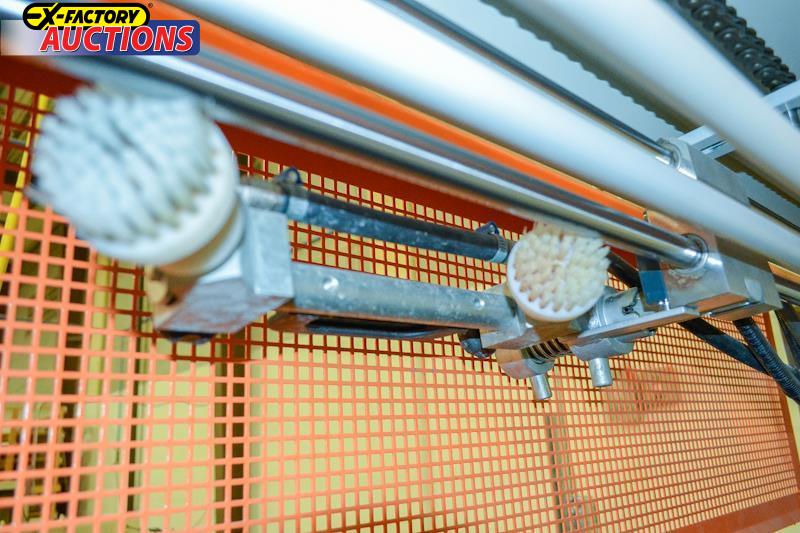

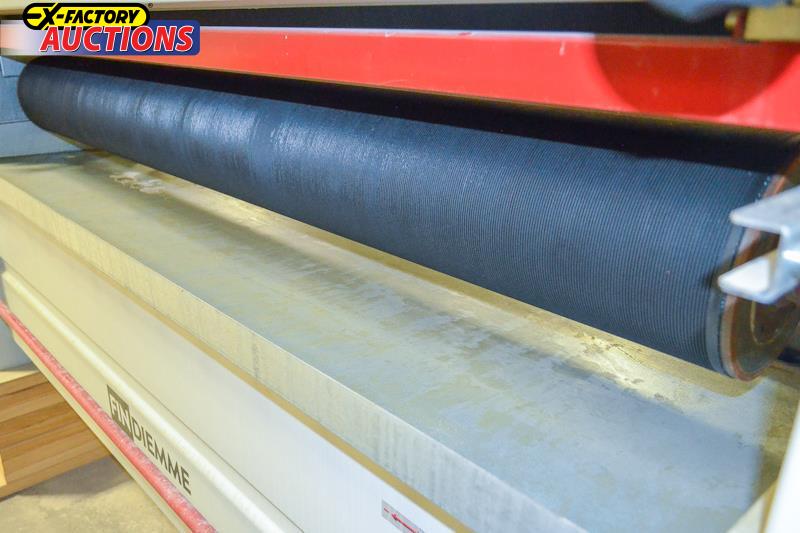

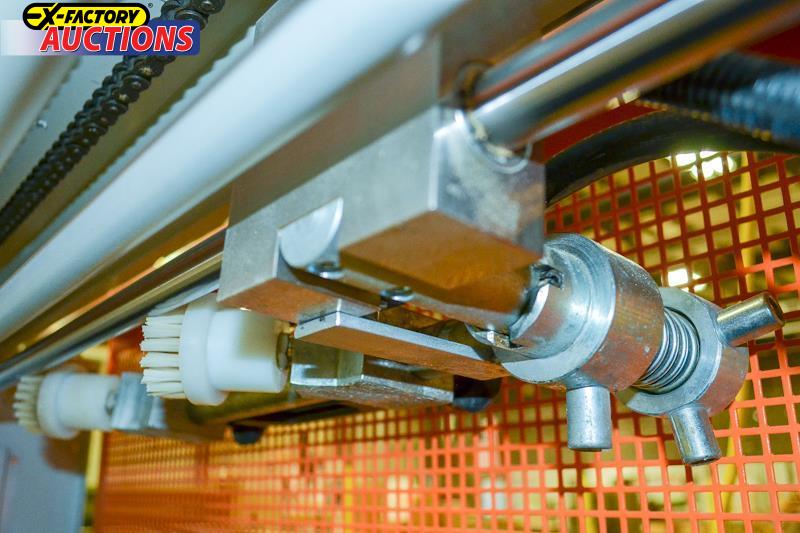

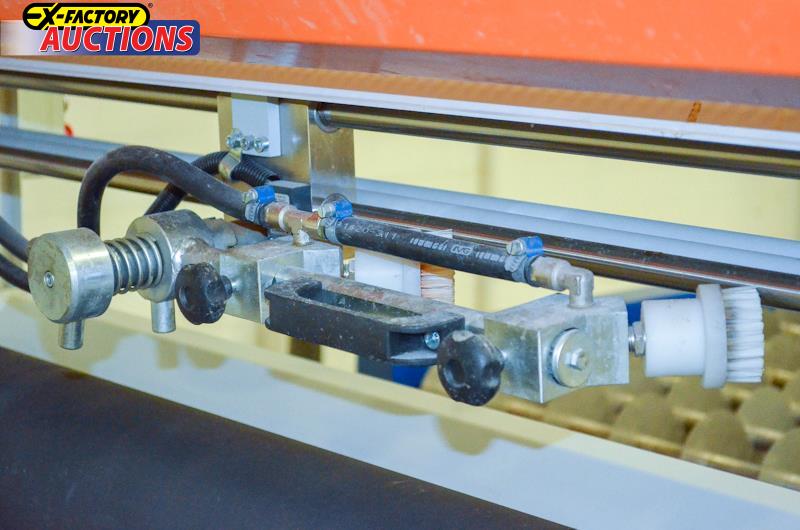

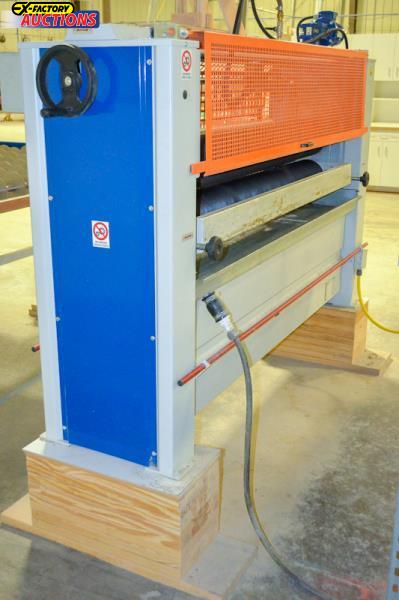

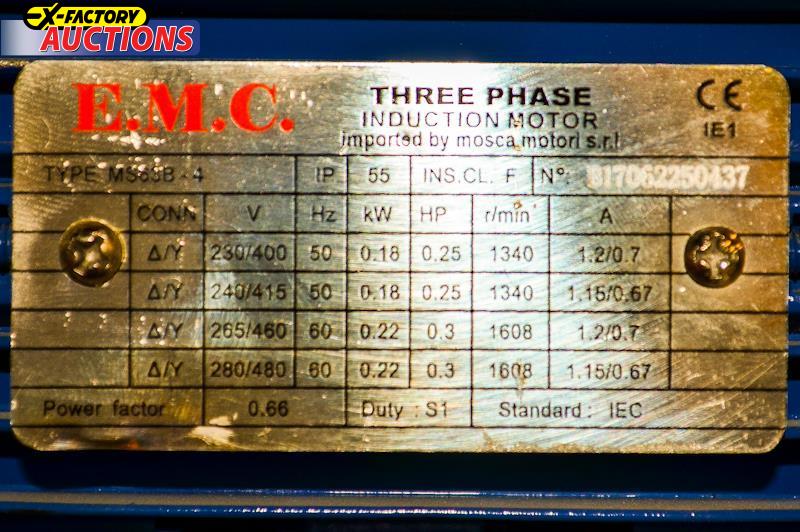

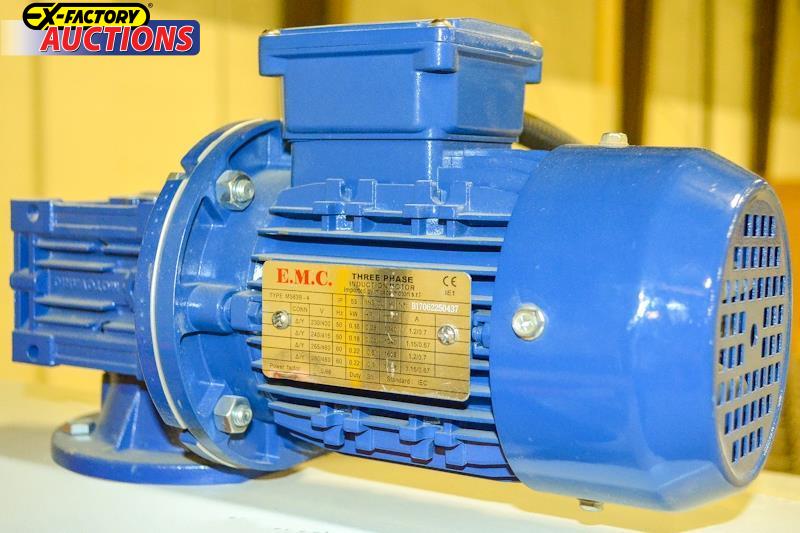

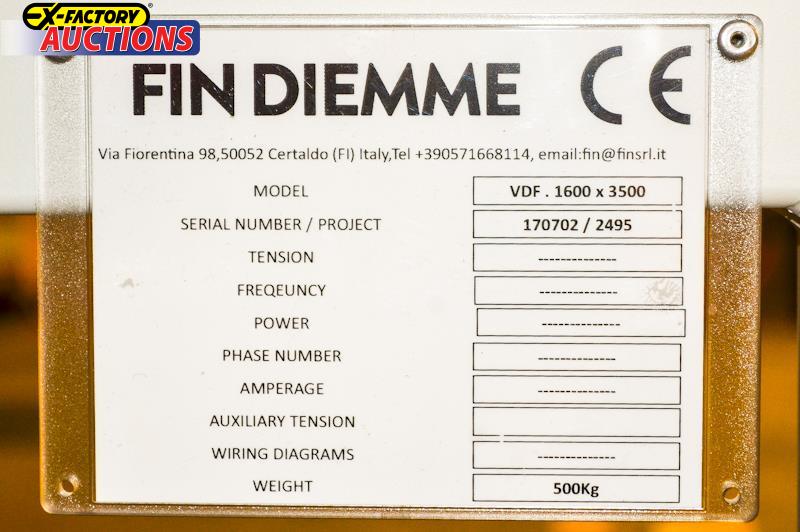

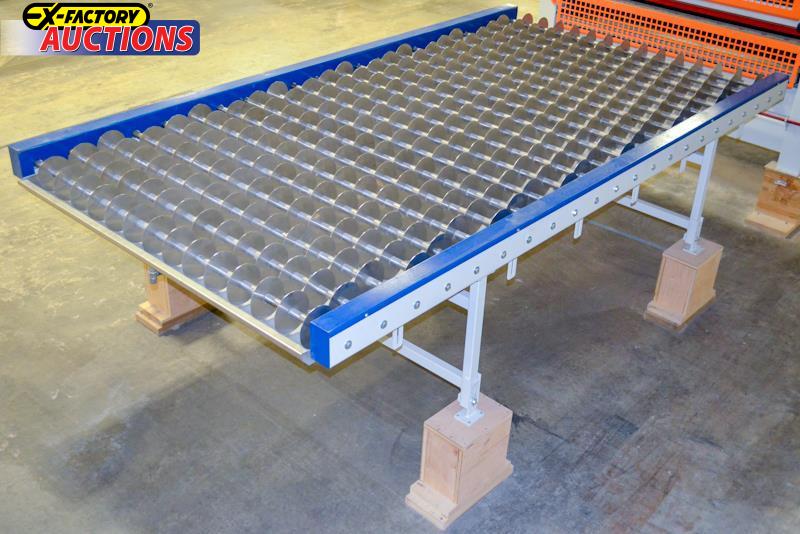

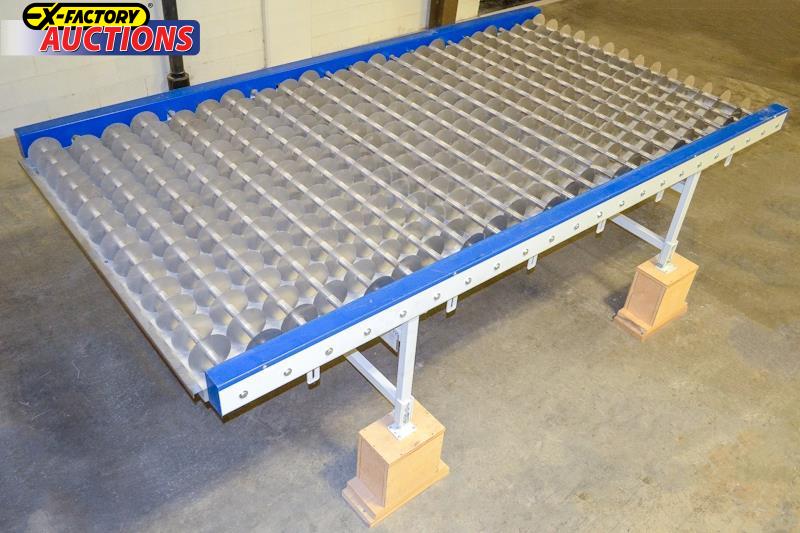

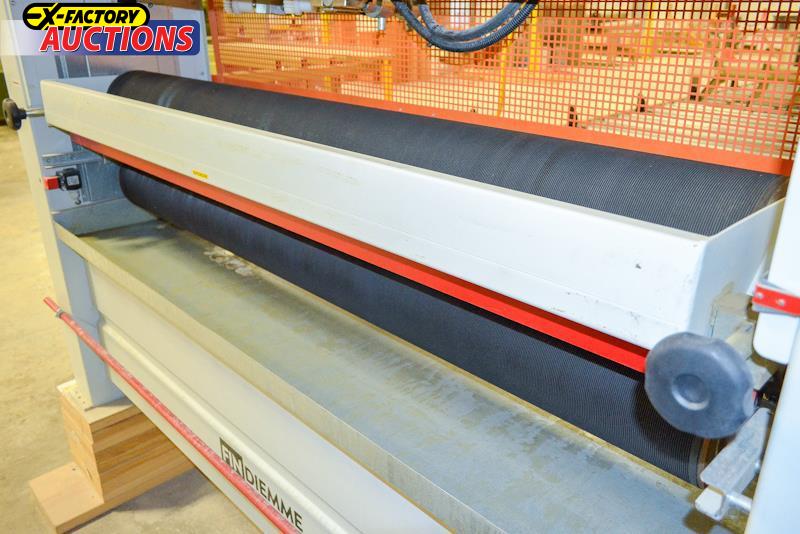

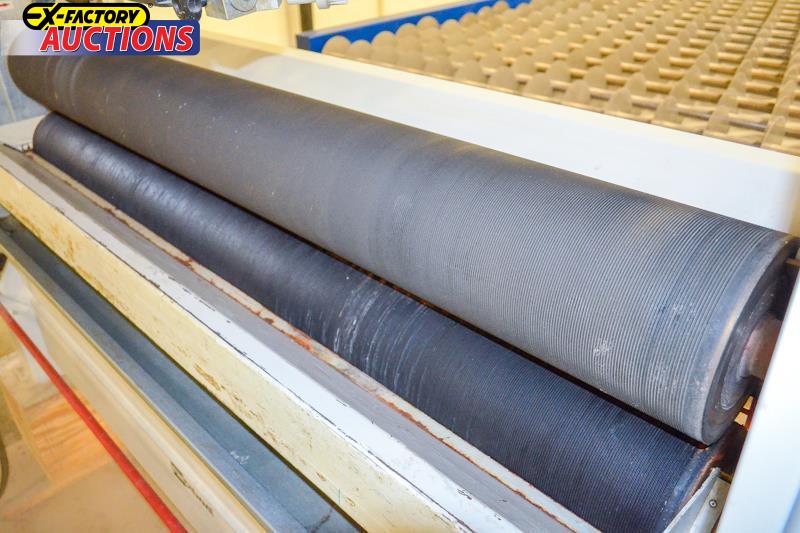

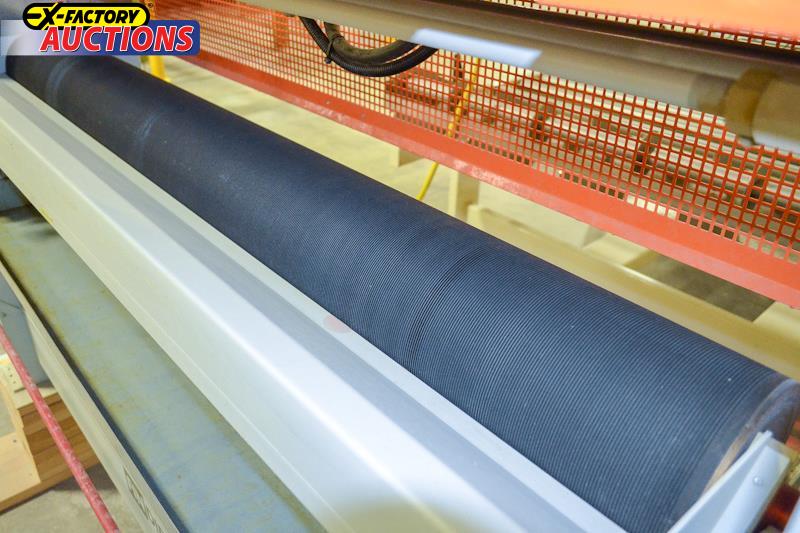

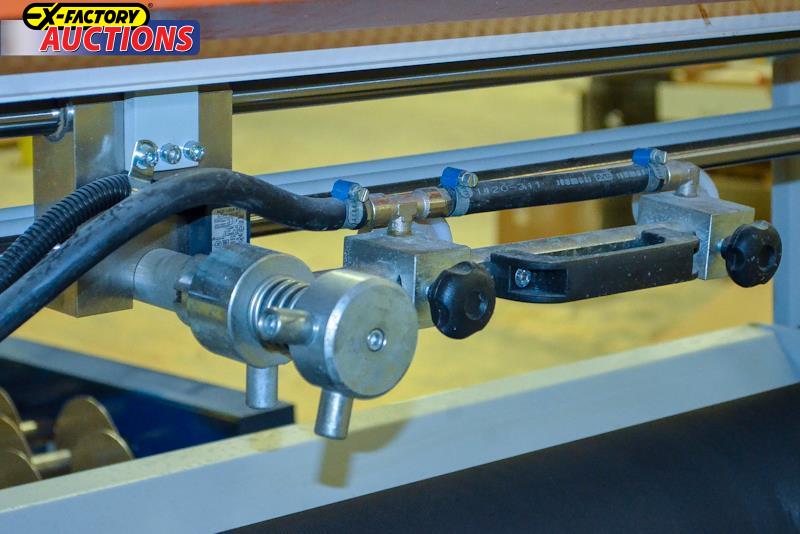

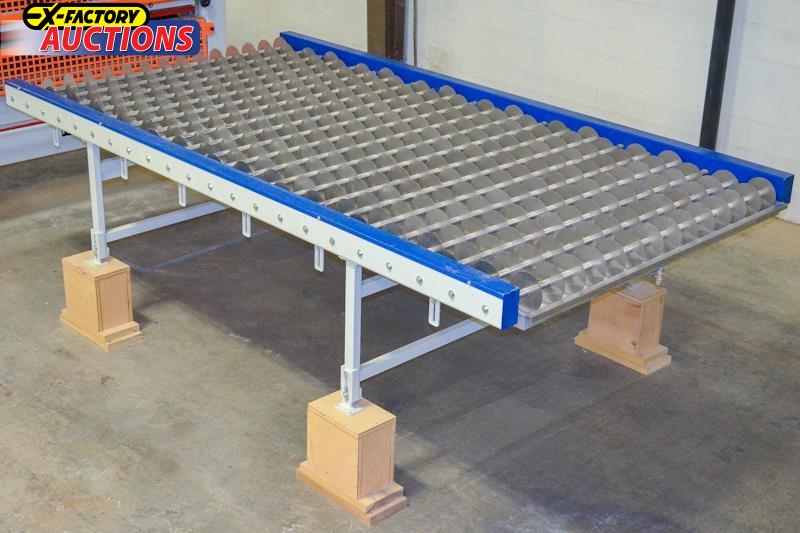

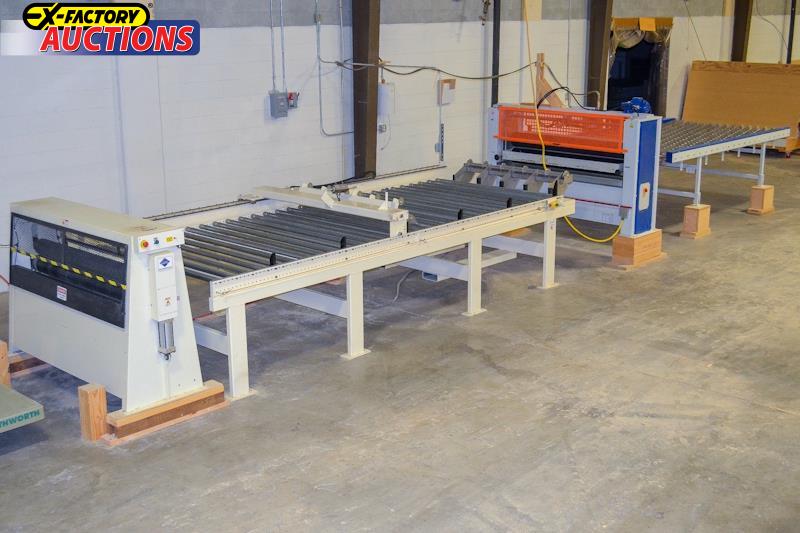

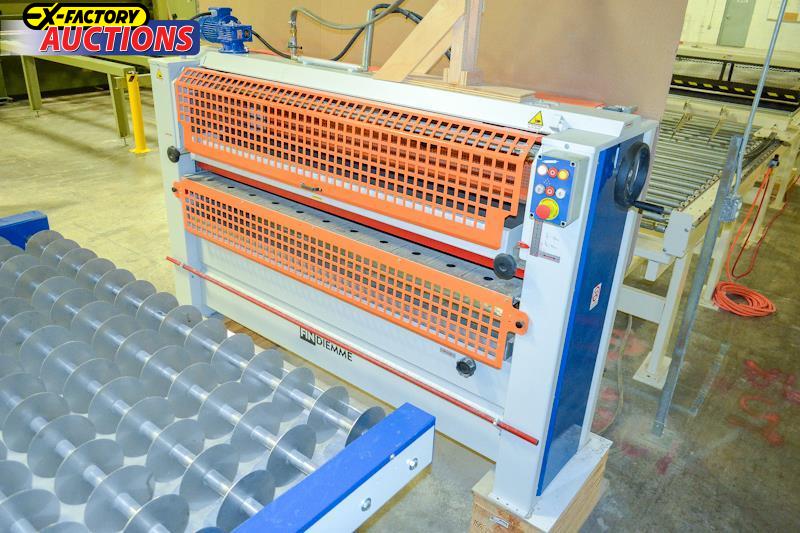

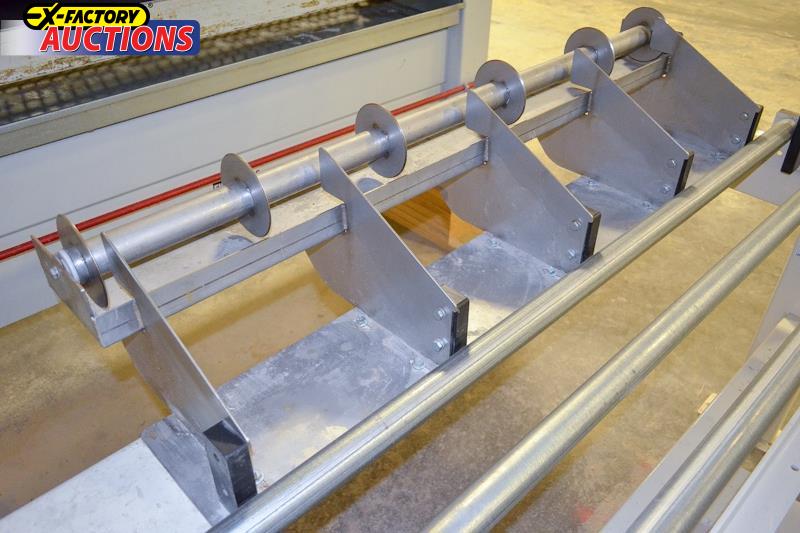

FIN/EVANS 63" Top & Bottom Laminating Line, Overall dimensions 448" x 88" x 75" H, Overall weight 5,336 Lbs., Consisting of: FIN VDF . 1600 X 3500 1,600 mm W x 3,500 mm L (62.99" W x 11-1/2' L) Idle Disc Conveyor, S/N 170702 Pass line height 29-1/2" - 34-1/2", Tray depth 2", Dimensions 142" x 75" x 31" H, Overall height with wood base 46-1/2", Weight 500 kg (1,100 Lbs.) (22) Rows of (14) 6" Discs with Rows on 6" Centers & Discs on 4-3/4" Centers FIN SC2 R - 1600 MM 1,600 mm (62.99") Top & Bottom Glue Spreader, S/N 170704 Maximum opening size 120 mm (4-3/4"), Roll diameter 185 mm (7.28"), Roll adjustment 13 cm (5.12"), Water tray depth 2-1/2", Feed speed 19 MPM (62 FPM), Dimensions 90" x 25" x 60" H, Overall height with wood base 75", Weight 440 kg (970 Lbs.) Anti-acid grooved rubber spreading rolls, with (16) grooves/inch & 1/2 HP Feed motor with Bronze end seals & Watertight bearings, Self-adjusting chain drive, Top sliding automatic roller cleaning head, with 0.3 HP Motor & Water hose hook-up Glue film thickness adjustment, with Mechanical micro-control of doctor knives on each adhesive reservoir, Galvanized collecting tank, Front & Rear lift-up safety guards Includes: STIEBEL ELTRON "SHC 4" 4 Gallon Wall-Mounted Mini-Tank Electric Water Heater, 1,300 W, with Maximum operating pressure 150 PSI, Maximum temperature 140° F, Recovery time 27 Min. EVANS 4283 62" W x 18' L Lay-Up Table, S/N 4283-18048 Maximum board size 62" X 145", Minimum board size 24" X 24", Maximum thickness 2", Infeed height 45-1/2", Outfeed height 37-1/2", Dimensions 198" x 81" x 55" H, Weight 2,500 Lbs. Self-cleaning minimal contact disc rollers, with (6) 5" Discs & 1-3/4" D Water tray, 1-7/8" Diameter Gravity feed rollers on 6" Centers, Pneumatic clamping, with (6) Hold-down arms, Adjustable leveling feet EVANS 0257 62" Pinch Roller, S/N 0257-17037 Maximum thickness 2", Roll diameter 5-1/4", Pass line height 30-1/2", Feed speed 50 FPM, Adjustable pressure 50 - 100 PSI, Dimensions 78" x 28" x 49" H, Overall height with wood base 55-1/2", Weight 766 Lbs. 5" Diameter Smooth solid top & bottom rollers, with 1/2 HP Motor & Forward & Reverse feed, Pneumatic roll adjustment, Foot pedal control, Infeed & Outfeed safety gates Includes: (3) Pair of Spacers
