KOCH "SPRINT-PTP" CNC BORE, GLUE & DOWEL INSERTER
Equipment Location: Wadsworth, OH
GD-230205   |  Lot # 009
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Talice Luna
(877) 580-5844 ext. 379
Intl. +1 (704) 841-2001





Current Bid: $ 500   Reserve Not Met
The current Bid has not reached or exceeded the Seller's Reserve price for this Lot.
This Lot will not be sold until the current Bid has reached or exceeded the Seller's Reserve price for this Lot.
Next Bid Increment: $ 525


Your Bid:
(
Click or Enter Bid)
  Place Your Bid

Your Proxy Bid:
  Place Proxy Bid  Help

Proxy Bid:

A Proxy bid is the maximum dollar amount you are willing to bid for a specific lot. The system automatically bids up to that amount on your behalf against competing bidders (if any).

EXAMPLE: You enter a "Max Proxy Bid" amount of $500 when the lot's reserve is met and the high bid is $100.  Your Proxy Bid automatically raises your bid to the next minimum bid amount, which in this example is $125, and thus makes you the current high bidder.  When a competing bidder bids $150, the system again automatically places a next increment bid of $175 for you, making you the high bidder again.  If a competing bidder bids again, proxy bidding continues until your "Max Proxy Bid" of $500 is exceeded by a bid from a competing bidder. If your high bid is not exceeded by the end of the Auction, then you win the lot.

ADVANTAGES: Should your schedule prevent you from participating near the closing of an Auction, your "Proxy Bid" quickly bids on your behalf.  Also, when your and a competing bidder's proxy bids are of equal amount ($500 in the example) at the end of the Auction, your bid wins, because you entered your $500 "Proxy Bid" amount first.

# of Bids: 1
End Time:
7 Days, 5 Hours, 35 Minutes
(12/14/2023  3:15pm EST)
Auto Refresh:   Enable Refresh Every

Event: THE OHIO GROUP

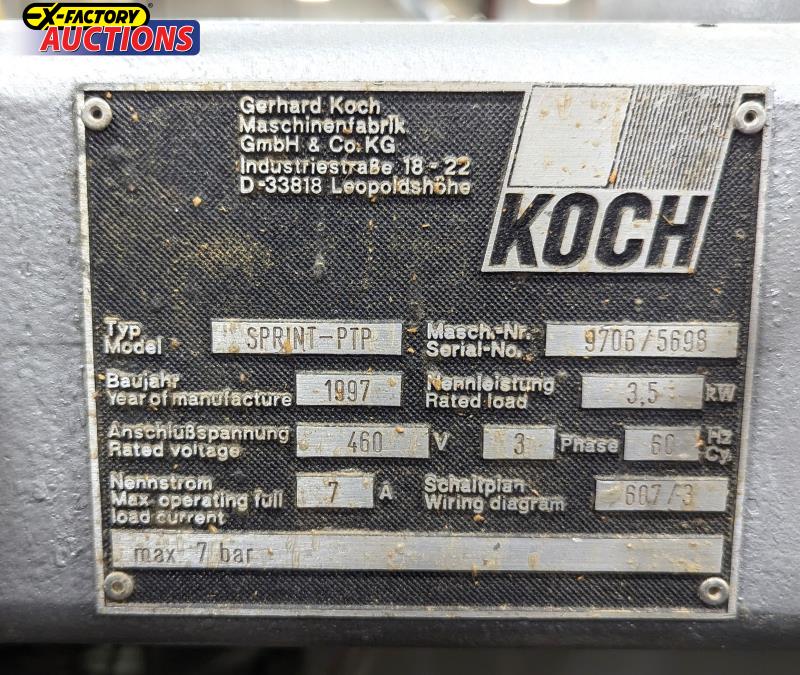

Brand/Model: KOCH "SPRINT-PTP"
Year MFG: 1997
Machine Type: CNC BORE, GLUE & DOWEL INSERTER
Serial #: 9706/5698
Elect./Voltage: 480 V, 60 Cy, 3 Ph.
Location: Wadsworth, OH
Condition: Good condition
Dimensions: 0" L  x  0" W  x  0" H
Weight: Lbs (estimate)
Loading: Rigger Required
Comment:
Buyer Premium: 15%

Description:

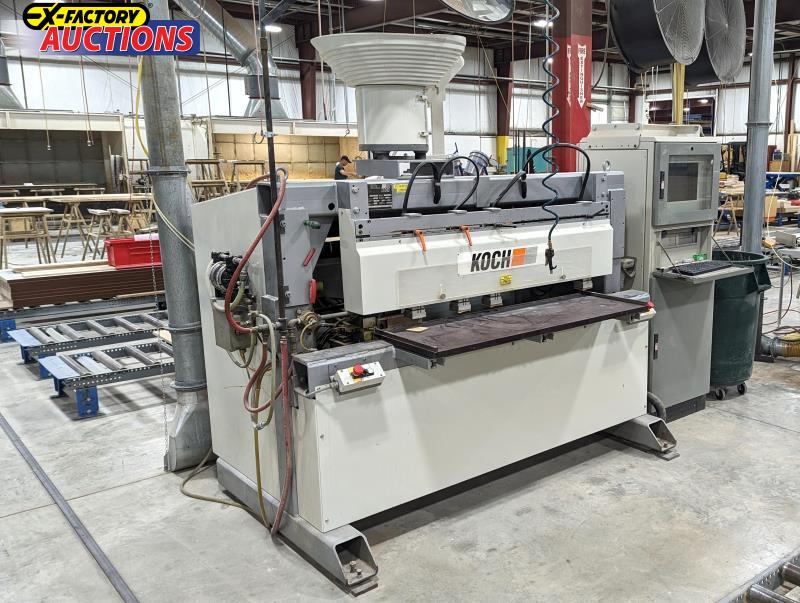

KOCH SPRINT PTP ... CNC Bore Glue & Dowel Inserter

CNC Bore Glue & Dowel Inserter with automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces at random spacing.

Work Capacity:

  •  1,370 mm worktable between end stops, Center-stop for 4 working fields
  • 610 mm on each side of center-stop
  • "X" 100-800mm, "Y" 20-1200mm, "Z" 10-40mm

    Features:
  • Positioning speed of all working units at 160 MPM (97 FPM), boring & insertion capacity up to (60) dowels/Min.
  • (2) Independent work zones; (1) side can be processed while the other is being unloaded & loaded.

    Equipped with:
  • (1) Horizontal Boring Unit: 1x 0.9kW 7000-16000
    RPM drill unit
  • 80 mm manually adjustable drilling stroke, 28 mm Max drill depth, R-R rotation,10 mm Drill mount

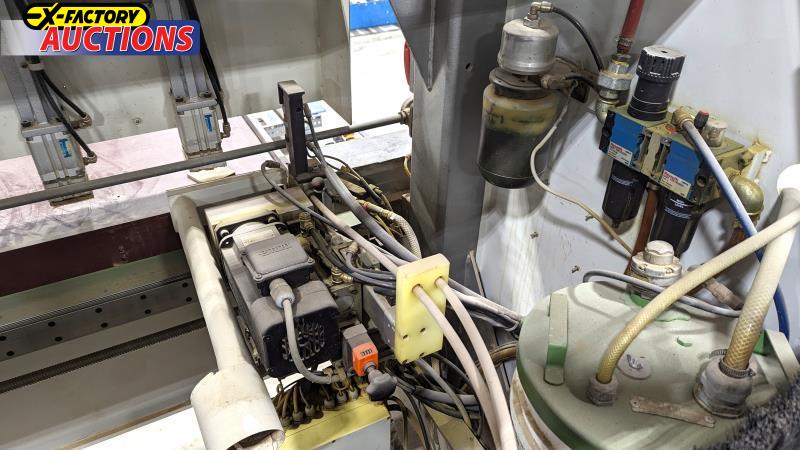

  • (1) Dowel Insertion Unit with high pressure glue pump, patented "KOCH ELC" Electronic Glue Detection System special patented glue injection unit & dowel inserter head.

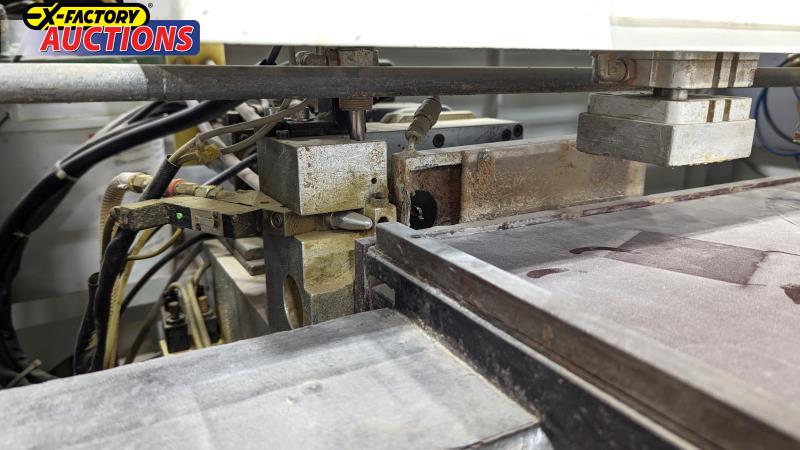

  • (4) Adjustable dual-action clamping cylinders (vertical/horizontal) for horizontal or vertical drilling of work-pieces.
  • (2) Fixed fences (RH & LH side) with (1) @ sensor confirming work-piece in place.

    Operator & Machine Control:

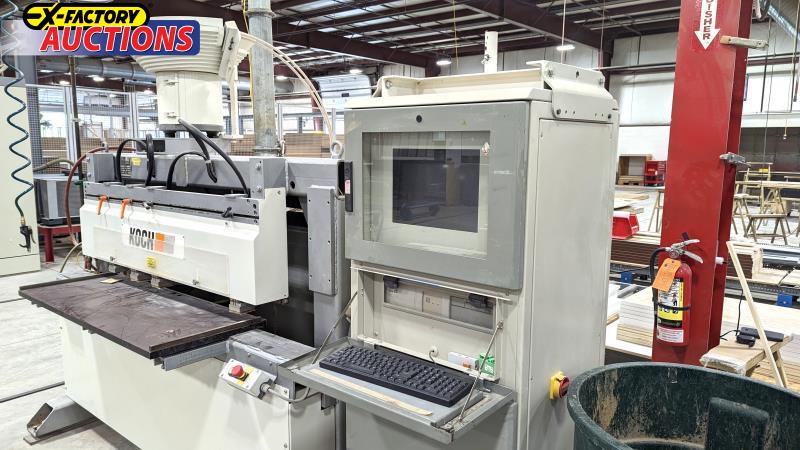

  • CNC Control with MS-OS Windows 98 w/monitor built into free-standing operator control cabinet, menu driven screen for function control & graphic illustration of machine functions.
  • Set-up for networking with office computer (engineering work-station).

    Complete with: Overhead vibrating hopper for dowel feeding, 8 x 35 mm Dowels, KOCH WOP with parametric and individual programming Barcode Reader.
    SPECIAL NOTE: Cannot be removed prior to 12/1/2024

    NOTE:  Above specs taken from literature and thought to be accurate.  As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

Final Removal Date: 1/5/2024
