LOT OF (2) BIESSE "ROVER 24 FTS" FLAT TABLE MACHINES (W/ATC/BORING)
Equipment Location: ZEELAND, MI
FT-230046   |  Lot # 001
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Kevin Welker
(877) 580-5844 ext. 316
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com



Current Bid: $ 9,000   Reserve Not Met
The current Bid has not reached or exceeded the Seller's Reserve price for this Lot.
This Lot will not be sold until the current Bid has reached or exceeded the Seller's Reserve price for this Lot.
Next Bid Increment: $ 9,100
% met

Your Bid:
(
Click or Enter Bid)
  Place Your Bid

Your Proxy Bid:
  Place Proxy Bid  Help

Proxy Bid:

A Proxy bid is the maximum dollar amount you are willing to bid for a specific lot. The system automatically bids up to that amount on your behalf against competing bidders (if any).

EXAMPLE: You enter a "Max Proxy Bid" amount of $500 when the lot's reserve is met and the high bid is $100.  Your Proxy Bid automatically raises your bid to the next minimum bid amount, which in this example is $125, and thus makes you the current high bidder.  When a competing bidder bids $150, the system again automatically places a next increment bid of $175 for you, making you the high bidder again.  If a competing bidder bids again, proxy bidding continues until your "Max Proxy Bid" of $500 is exceeded by a bid from a competing bidder. If your high bid is not exceeded by the end of the Auction, then you win the lot.

ADVANTAGES: Should your schedule prevent you from participating near the closing of an Auction, your "Proxy Bid" quickly bids on your behalf.  Also, when your and a competing bidder's proxy bids are of equal amount ($500 in the example) at the end of the Auction, your bid wins, because you entered your $500 "Proxy Bid" amount first.

# of Bids: 25
End Time:
Auction Closed.
Auto Refresh:   Enable Refresh Every

Event: BIESSE ROVER FLAT TABLE MACHINING CENTERS
Brand/Model: LOT OF (2) BIESSE "ROVER 24 FTS"
Year MFG: 2003
Machine Type: FLAT TABLE MACHINES (W/ATC/BORING)

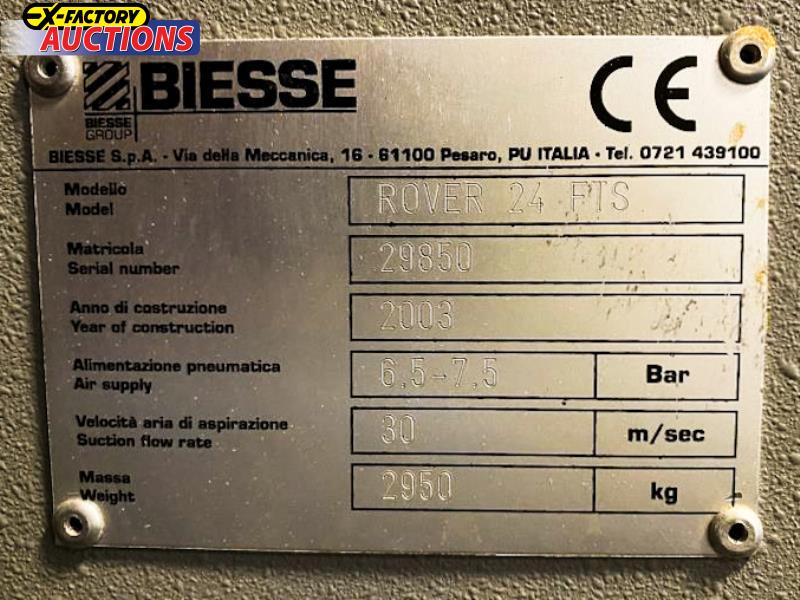

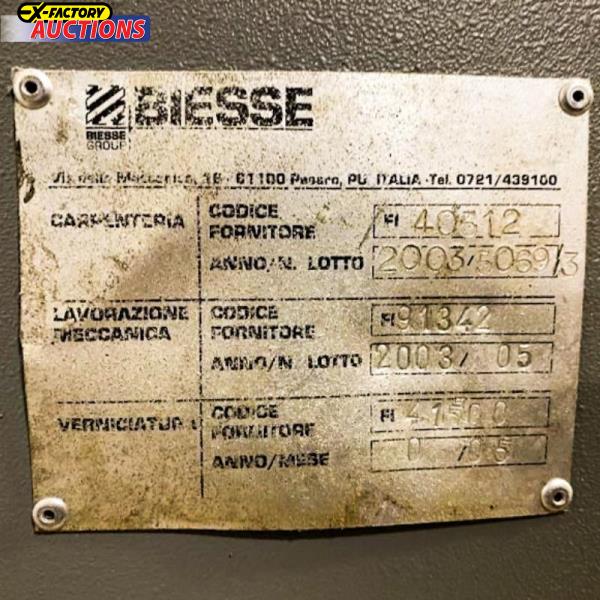

Serial #: 29850/29858
Elect./Voltage: SEE DESCRIPTION
Location: ZEELAND, MI
Condition: Good condition
Dimensions: 264" L  x  90" W  x  117" H
Weight: 13,000 Lbs (estimate)
Loading: Seller Loading
Comment: One machine purchased as a backup, with less than 1,500 hrs.!
Buyer Premium: 15%

Description:

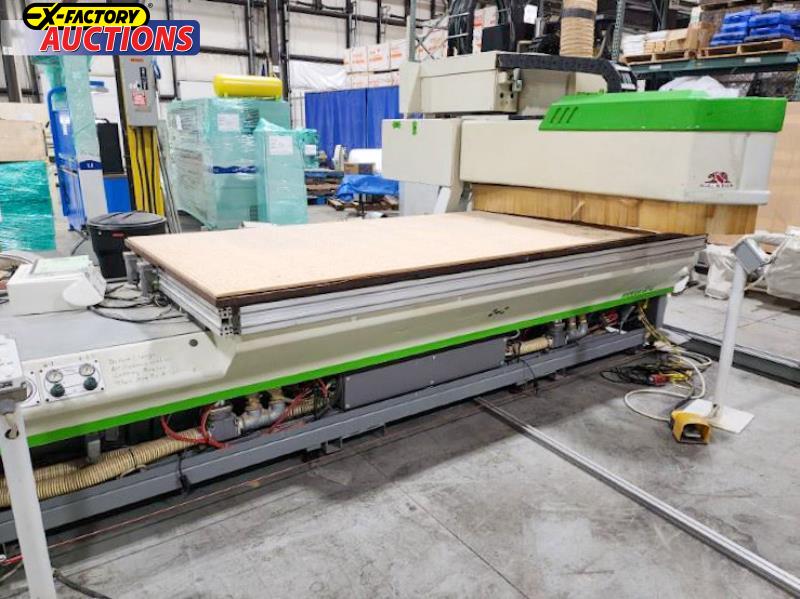

LOT OF (2) 2003 BIESSE "ROVER 24FTS" 4' x 10' CNC Flat Table Machining Centers

  • NOTE: One Machine Needs Control Repaired, Vacuum Pumps Not Included But Available For an Additional Cost)

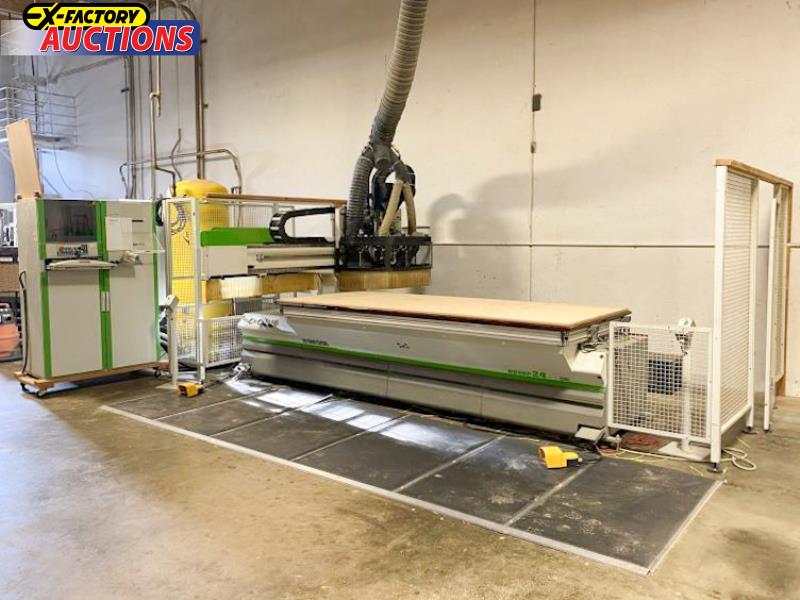

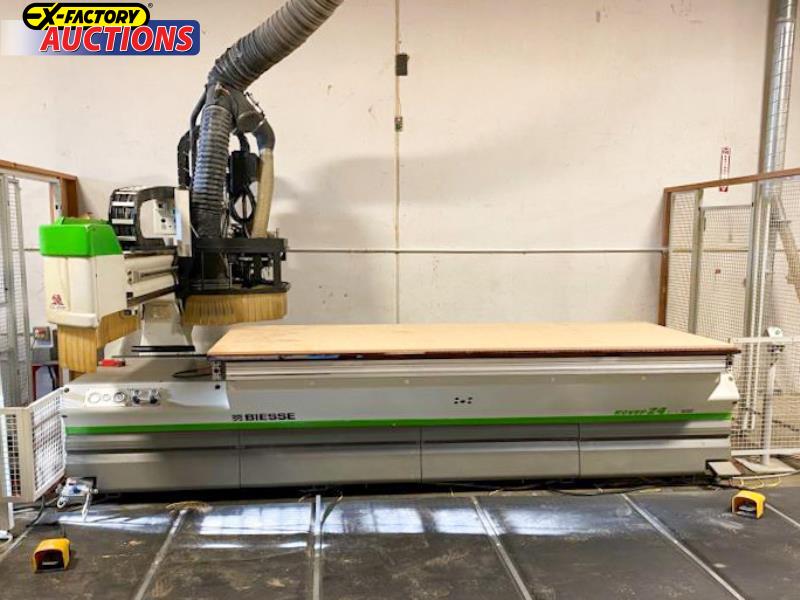

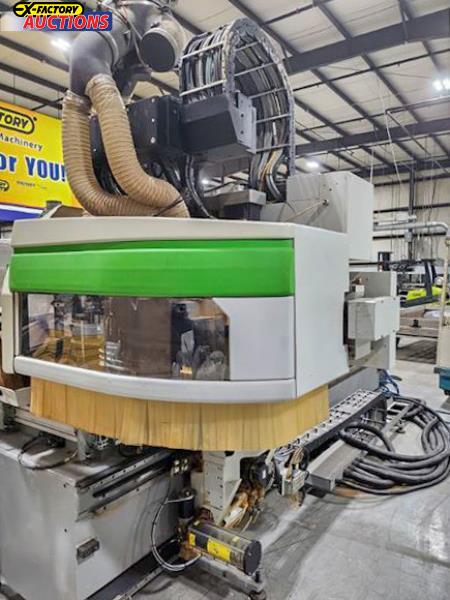

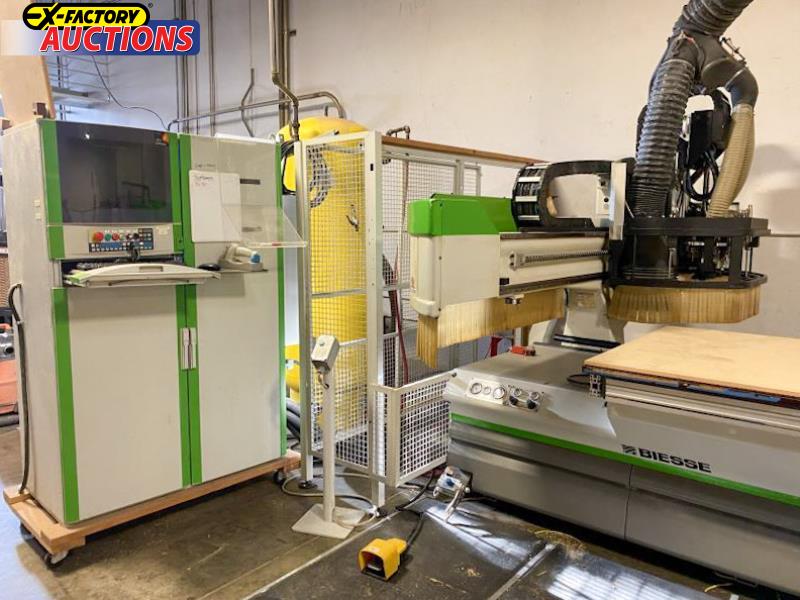

    S/N 29850 (Photos #1 - #17) (Currently under power & available for inspection.) with:

  •  Working Capacity: X-Axis 122" (3,100 mm), Y-Axis 49.2" (1,250 mm), Z-Axis Stroke 6.1" (155 mm)

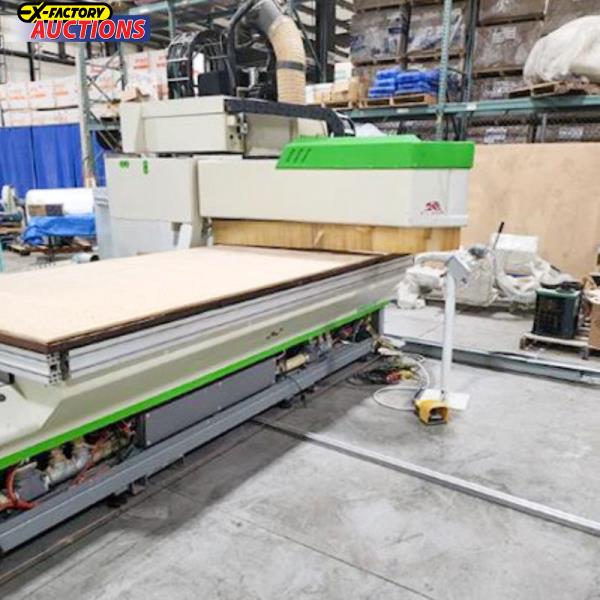

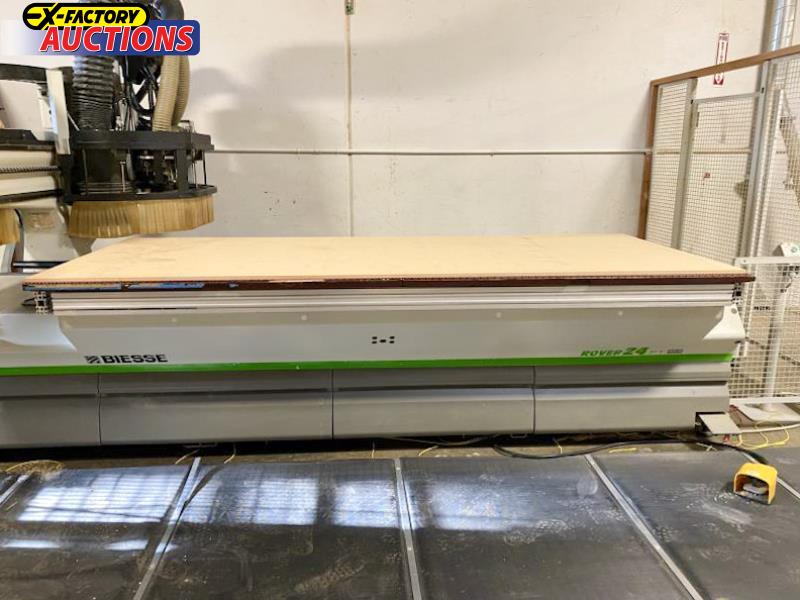

  •  Work Area: 4' x 10' "Matrix" Grid phenolic surface for "Nested Base Manufacturing" or Single part processing using (optional) pods or jigs, (2) Side & (4) Rear Pop-up reference pins

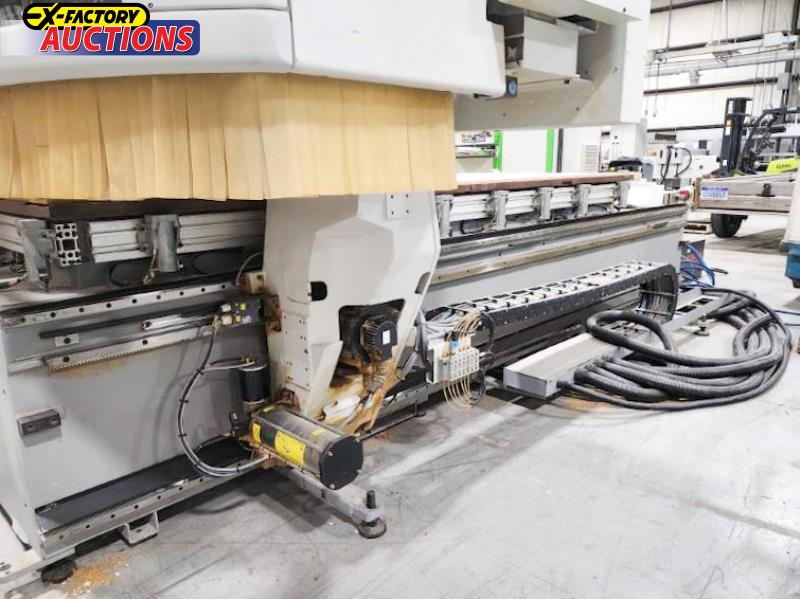

  •  Positioning Speed: X & Y-Axis 262 FPM (80 MPM), Z-Axis 98 FPM (30 MPM), Helical rack & pinion system for X-Axis, Precision ball screws for Y & Z-Axis, Precision linear guides/ways & Digital, brushless AC Servo motors for all axes, Automatic forced lubrication system for guides & ball screws

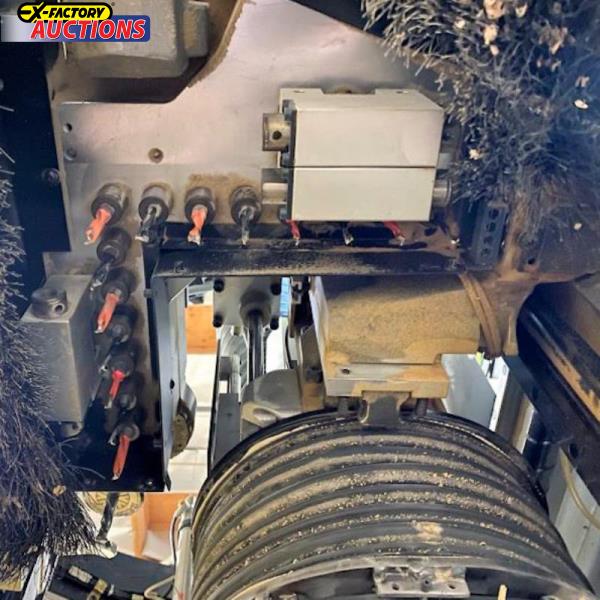

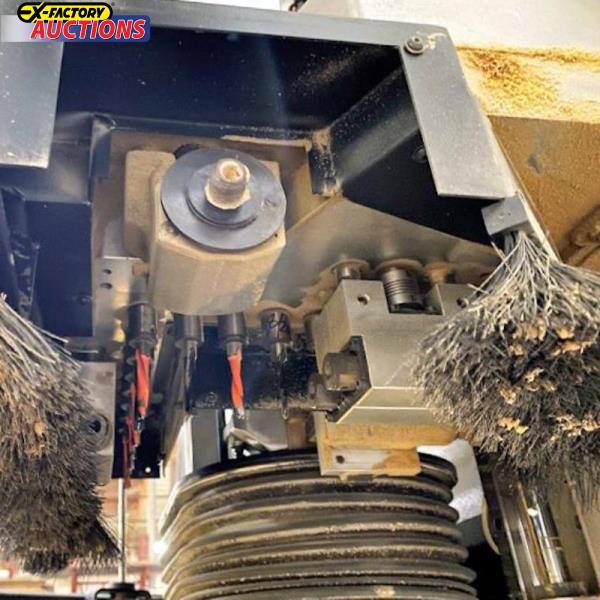

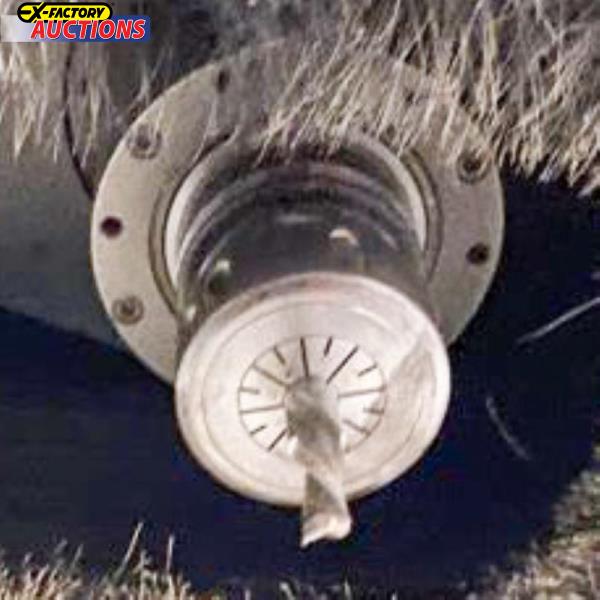

  •  Boring Unit: (1) 4 HP (3.3 kW) - 4,000 RPM Motor, (14) Independent vertical spindles with (7) in X-Axis & (7) in Y-Axis, (6) Horizontal spindles with (2 + 2) in X-Axis & (1 + 1) in Y-Axis

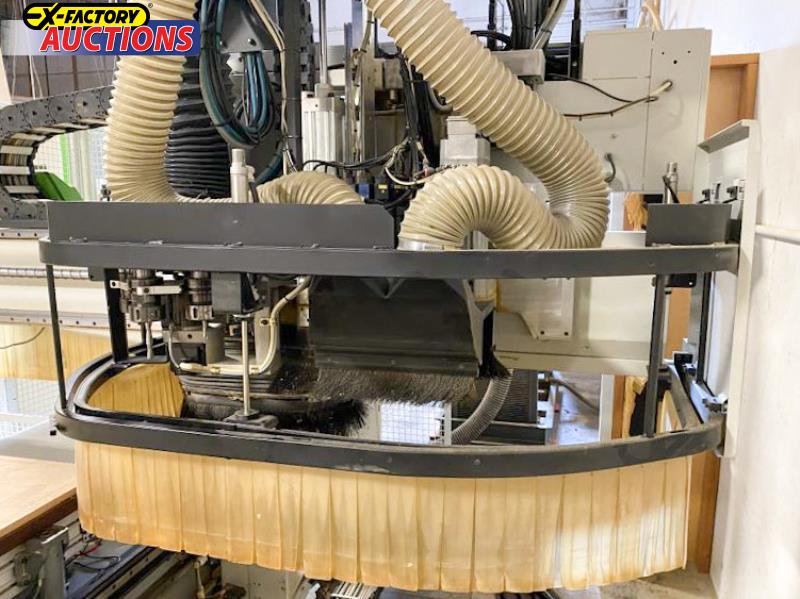

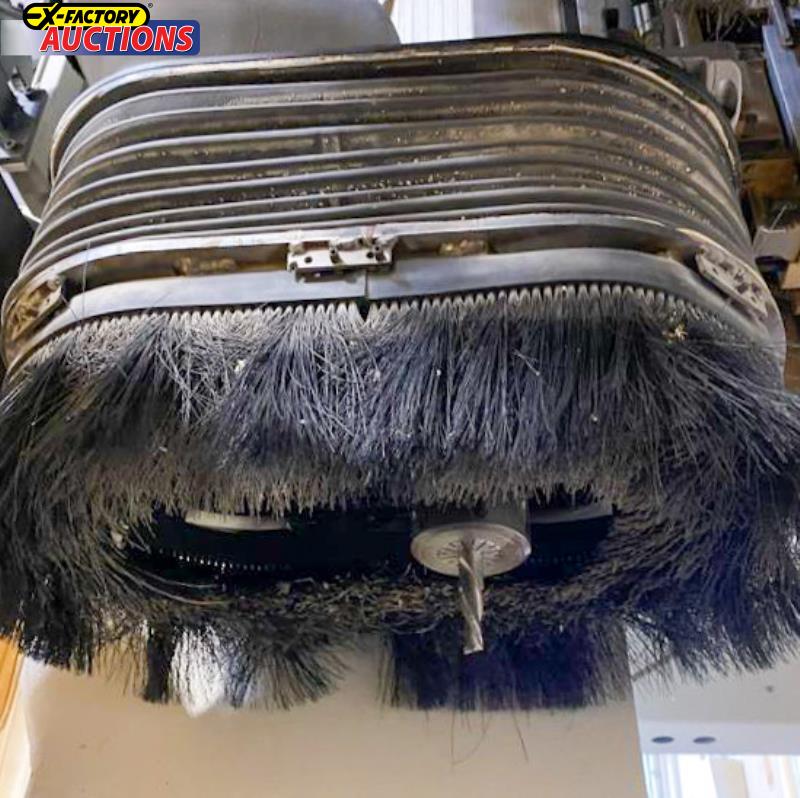

  • Machining: (1) 16 HP (12 kW) Liquid-cooled vertically-mounted HSD Electro-spindle router with HSK F63 Adaptor, Inverter-driven, with Variable speeds 1,000 - 20,000 RPM, Maximum torque 12,000 - 20,000 RPM

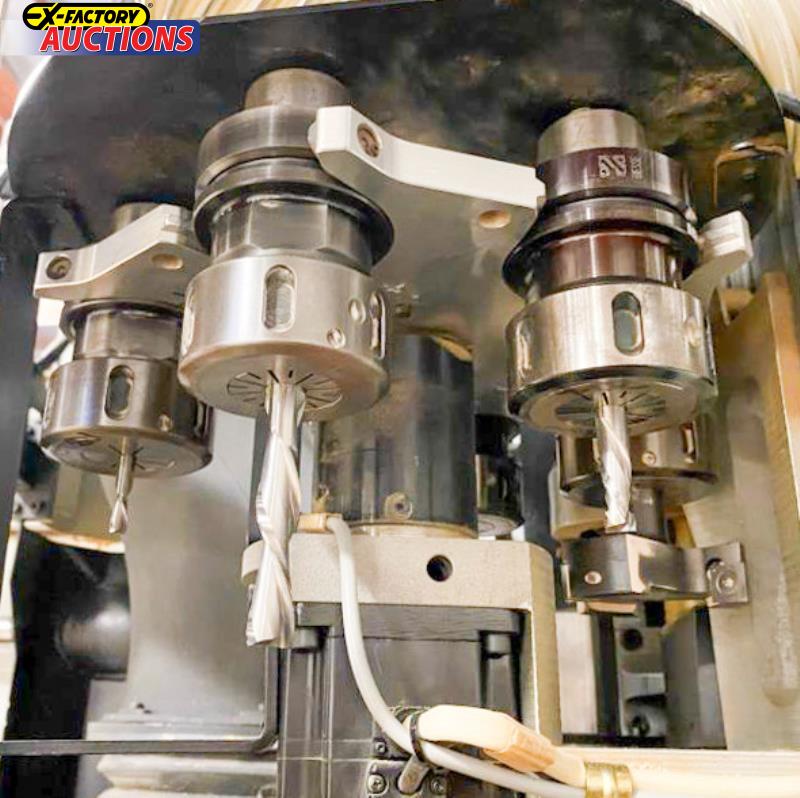

  • ATC: (1) 6-Position "Ride Along" Automatic tool changer for "on-the-fly" ATC

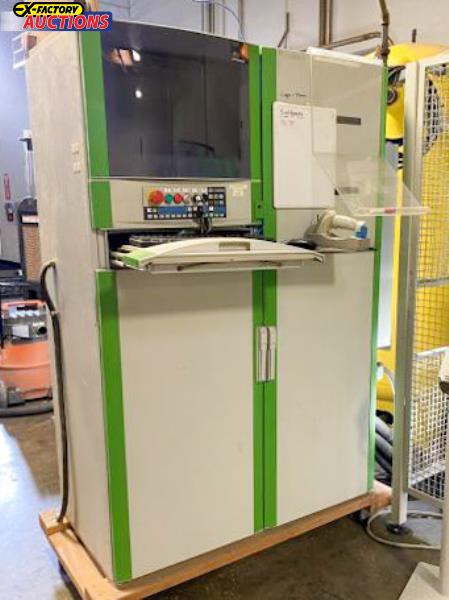

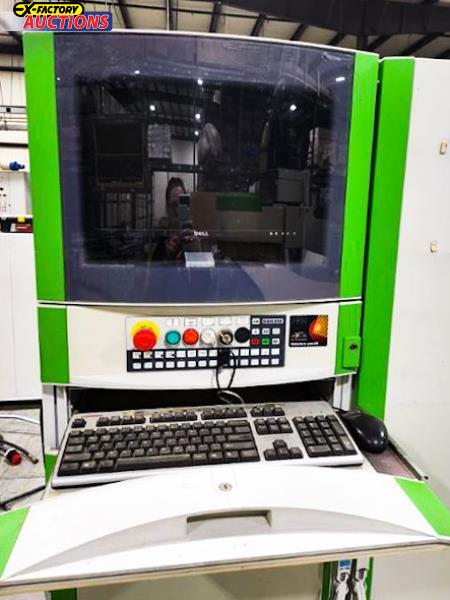

  •  Operator & Machine Control: PC Front End with BIESSE "XP600" + MICROSOFT "WINDOWS XP" Operating system, 15" Color CRT display, 40 GB Hard drive, Ethernet port, Programs can be transferred via disk or downloaded by wire

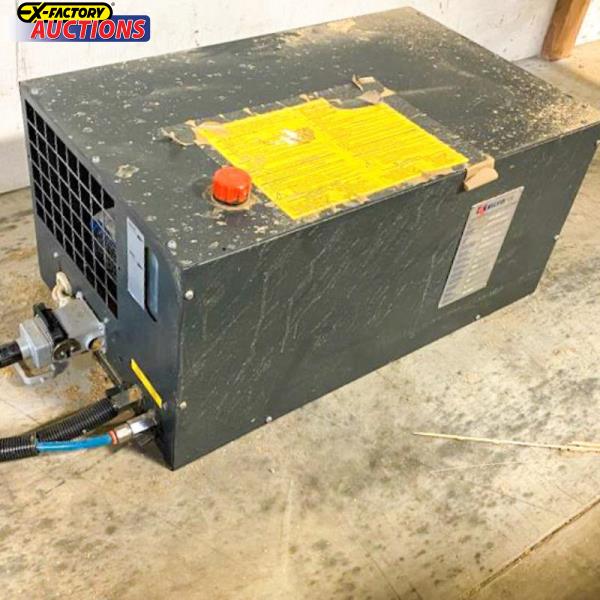

  •  Includes: Safety Perimeter Devices, 11 KVA Stabilized Autotransformer for 220 - 600 V, & Quantity of BIESSE Spare Parts, Including Motherboards

  • Electrical: 460 V, 60 Cy, 3 Ph.

  •  Dimensions: 264” x 90” x 117” H

  •  Weight: 6,500 Lbs.

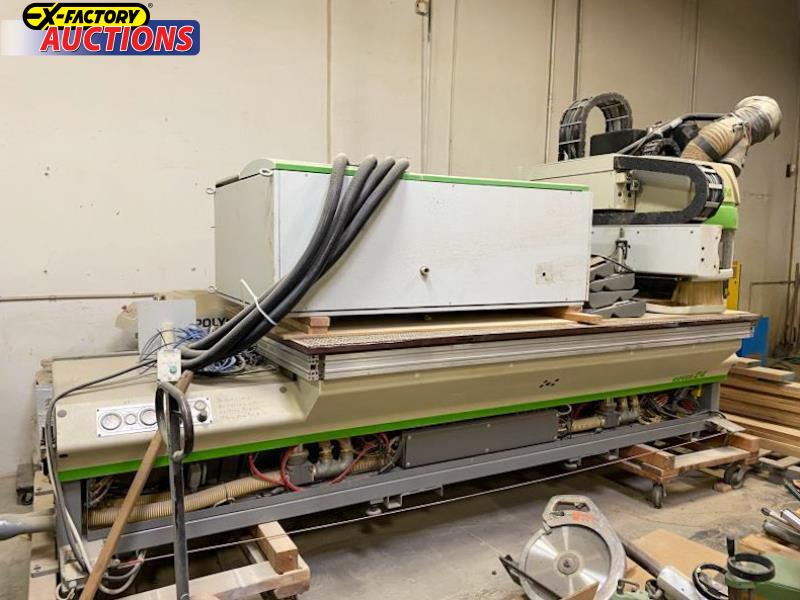

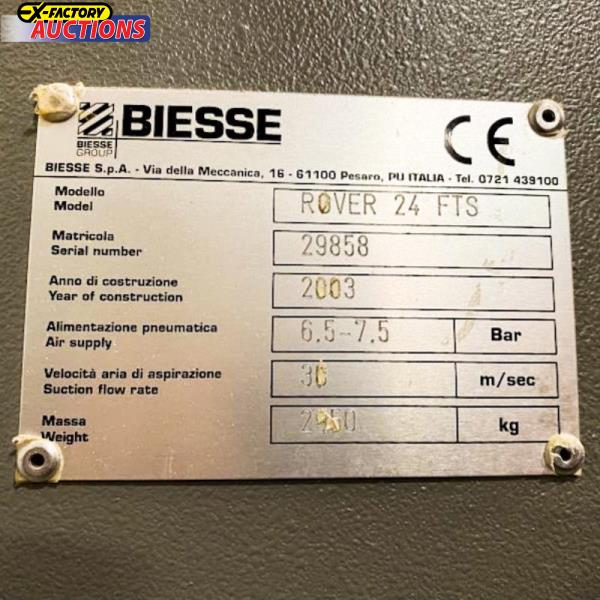

    S/N 29858 (Photos #18 - #28) (Purchased as a backup, with less than 1,500 hours, but PLC needs to be replaced. Currently de-installed & ready to ship.) with:

  •  Working Capacity: X-Axis 122" (3,100 mm), Y-Axis 49.2" (1,250 mm), Z-Axis Stroke 9.8" (250 mm), Maximum material thickness 6.1" (155 mm)

  •  Work Area: 4' x 10' "Matrix" Grid phenolic surface for "Nested Base Manufacturing", (2) Independent working areas, External pop-up reference pins are adjustable & can be placed on front, back, right side, or left side of table, Prepared for (optional) "Quick Fit" vacuum outlets for optional clamping of small or awkward shaped parts, Each work zone with (1) "Quick Connect" vacuum outlet for custom vacuum fixtures

  •  Positioning Speed: X & Y-Axis 328 FPM (100 MPM), Z-Axis 98 FPM (30 MPM), Helical rack & pinion system for X-Axis, Precision ball screws for Y & Z-Axis, Precision linear guides/ways & Digital, brushless AC Servo motors for all axes, Lubrication system for all motion components

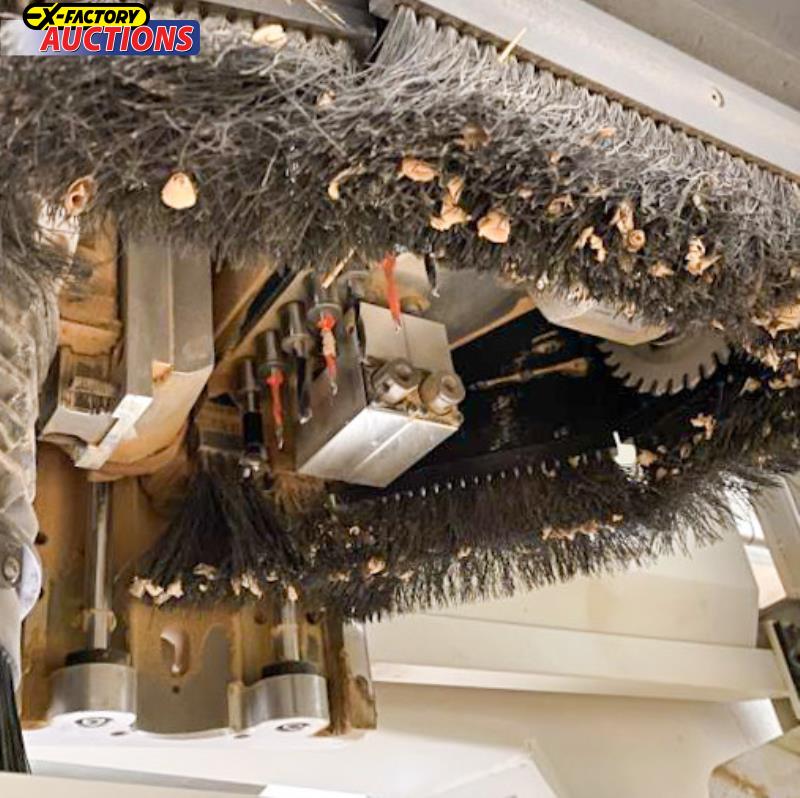

  •  Boring Unit: (1) 2-1/2 HP (1.7 kW) - 4,000 RPM Motor, (14) Independent vertical spindles with (7) in X-Axis & (7) in Y-Axis, (6) Horizontal spindles with (2 + 2) in X-Axis & (1 + 1) in Y-Axis, (1) X-Axis Grooving saw with 4.72" (120 mm) Maximum blade diameter

  • Machining: (1) 10.2 HP (7.6 kW) Electro-spindle router, with Variable speeds 1,000 - 20,000 RPM

  • ATC: (1) 6-Position "Ride Along" Automatic tool changer for "on-the-fly" ATC

  •  Operator & Machine Control: PC Front End with BIESSE "NC 1000" + MICROSOFT "WINDOWS NT" Operating system, 15" Color CRT display, 40 GB Hard drive, Floppy & CD Drives, Ethernet port

  •  Includes: Safety Perimeter Devices, Manuals, & Quantity of BIESSE Spare Parts, Including Motherboards

  • Electrical: 200-600 V, 50/60 Cy, 3 Ph.

  •  Dimensions: 264” x 90” x 117” H

  •  Weight: 6,500 Lbs.
Final Removal Date: 6/30/2023
