MORBIDELLI "N 100" FLAT TABLE MACHINE (W/ATC/BORING)
Equipment Location: BATON ROUGE, LA
FT-230045   |  Lot # 001
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Kevin Welker
(877) 580-5844 ext. 316
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com

[FT-010788]


This is a non-auction item up for sale. If interested, please call Kevin Welker at (877) 580-5844 ext. 316 or click on the link below.

Item Sold

Event: SUPERIOR MILLWORKS

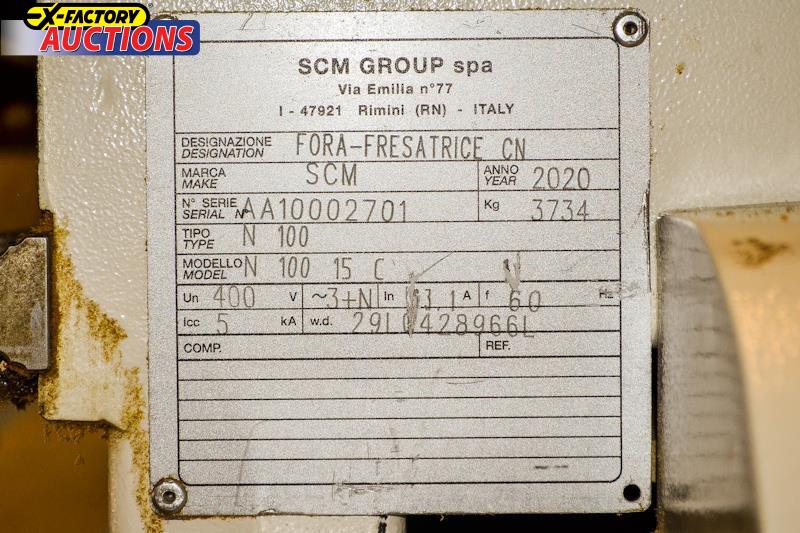

Brand/Model: MORBIDELLI "N 100"
Year MFG: 2020
Machine Type: FLAT TABLE MACHINE (W/ATC/BORING)
Serial #: AA10002701
Elect./Voltage: 400 V, 60 Cy, 3 Ph.
Location: BATON ROUGE, LA
Value New: $ 140,000
Negotiable Price: $ 85,000     Make an Offer
Condition: Excellent condition
Dimensions: 231" L  x  112" W  x  111" H
Weight: 8,500 Lbs (estimate)
Loading: Seller Loading
Comment: Why wait for brand new when you can buy a 2 year old now?!

Description:

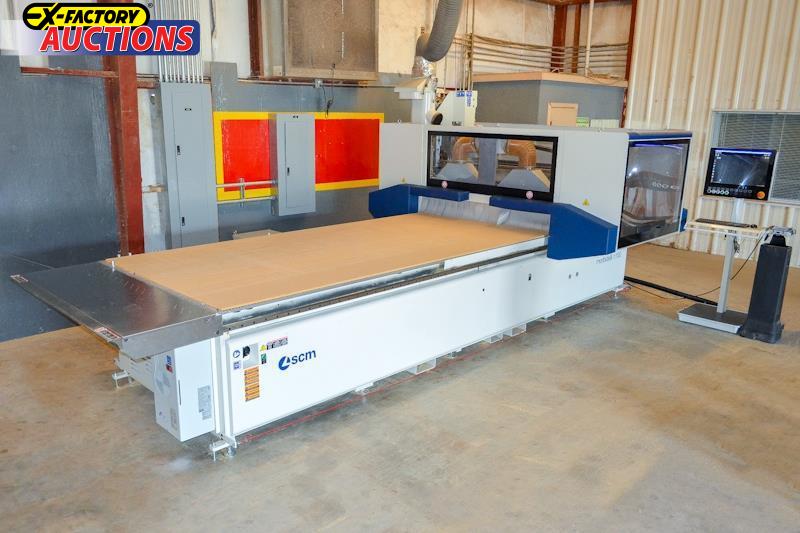

“N 100 15 C” 5' x 12' CNC Flat Table Machining Center, with ATC, Boring & Rake

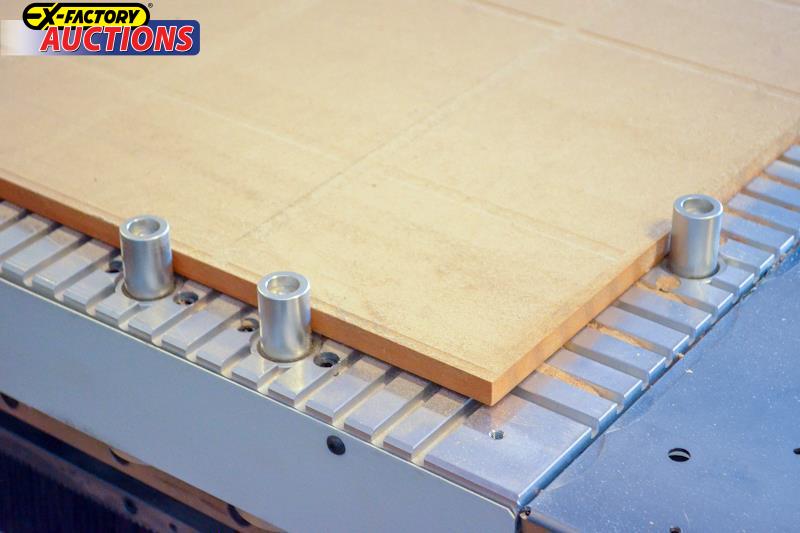

  •  Work Table: 5' x 12' x 37" H High efficiency laminate aluminum with Magnetic locking system of vacuum, Grid pattern allows use of vacuum pods or closed cell rope gasket material & use of spoil boards for nested base machining, Part location pop-up pins mounted on table perimeter, Chips conveying device

  •  Working Area: X Axis 3,686 mm (145.12"), Y Axis 1,555 mm (61.22"), Z Axis 150 mm (5.91")

  • Travels: X Axis 4,230 mm (166.54), Y Axis 1,985 mm (78.15"), Z Axis 250 mm (9.84")

  •  Positioning Speeds: X & Y Axes 35 MPM (114 FPM), Moving Gantry, High precision rack & pinion system for X & Y Axes, Ground ball screws for Z Axis, All axes ride on extra-large precision profile linear guide ways

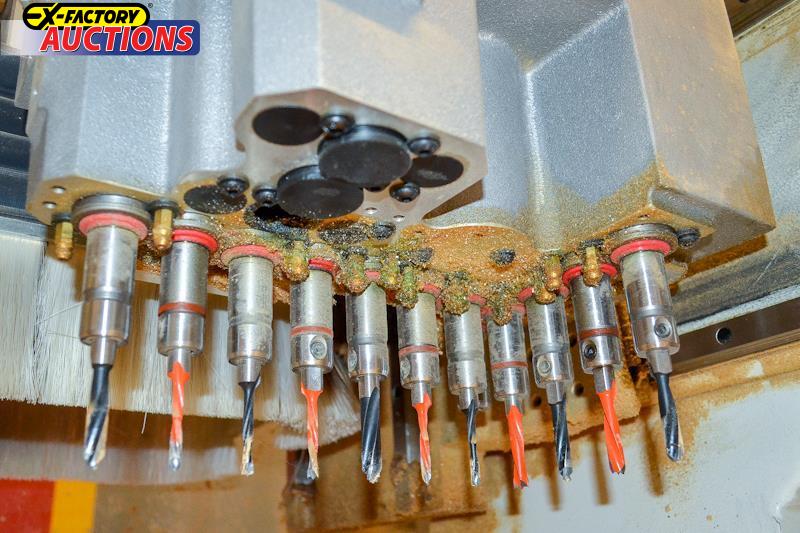

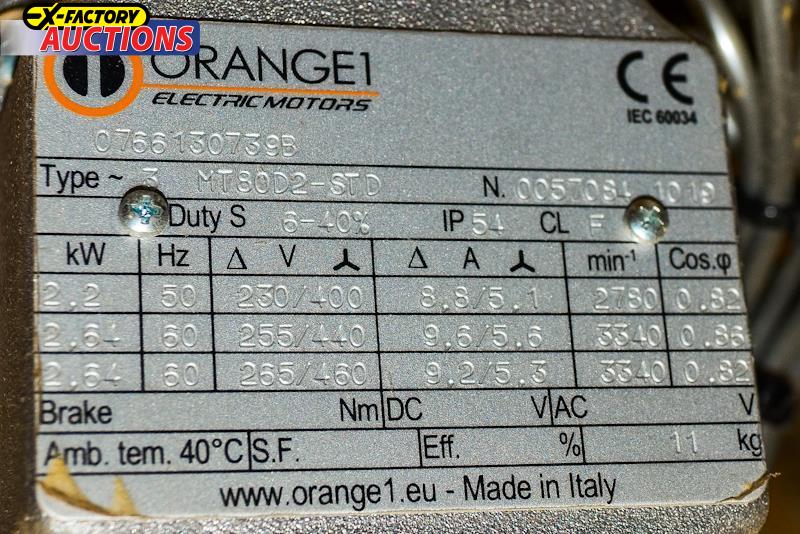

  •  Boring Unit: 2.2 kW (3 HP) Motor, (12) Independent vertical rotoaxial spindles with (8) in X Axis & (4) in Y Axis, Maximum spindle speed 8,000 RPM

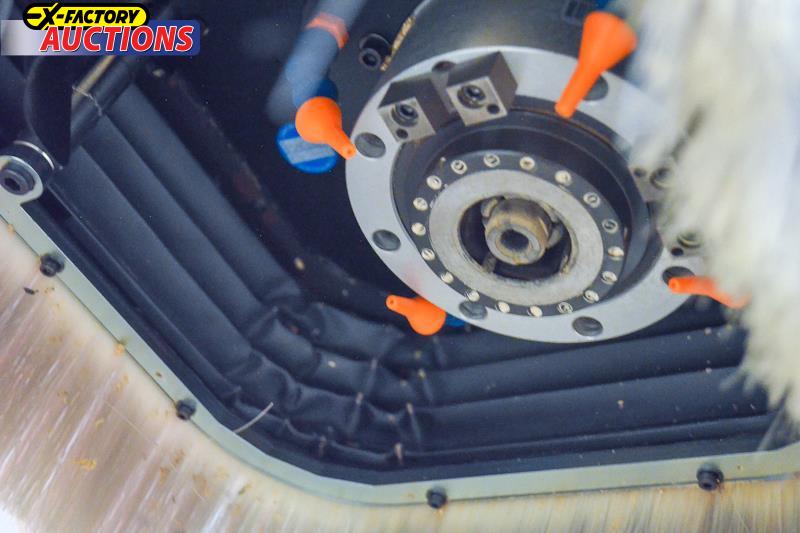

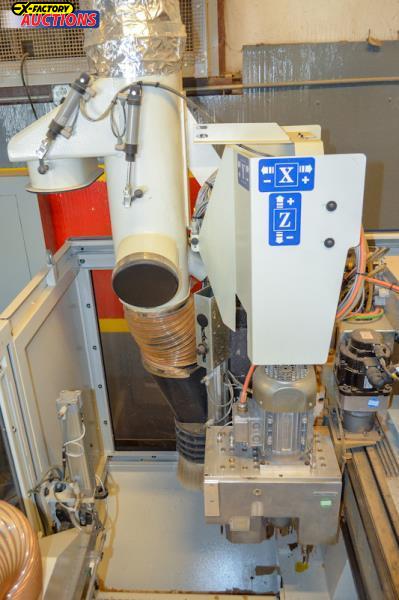

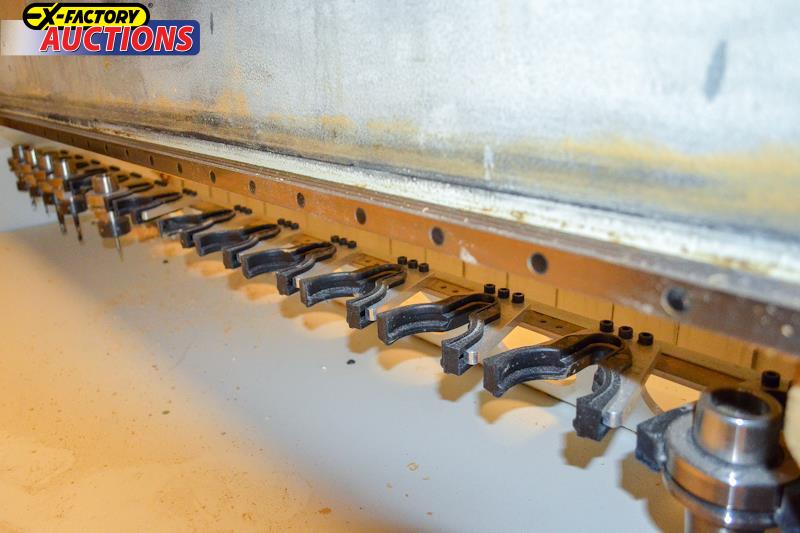

  •  Machining: (1) 15 kW (21 HP) Air-cooled electro spindle with HSK F63 Adaptor, Variable spindle speeds to 24,000 RPM, (1) 14-Position TR side tool changer

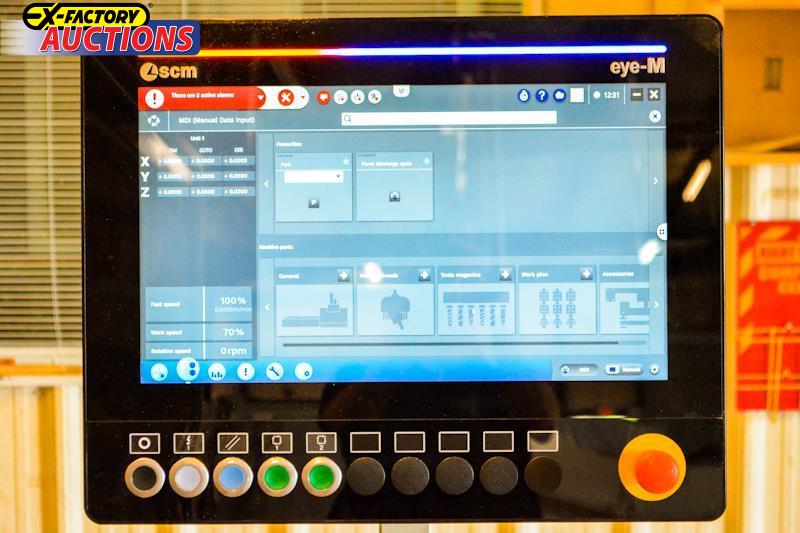

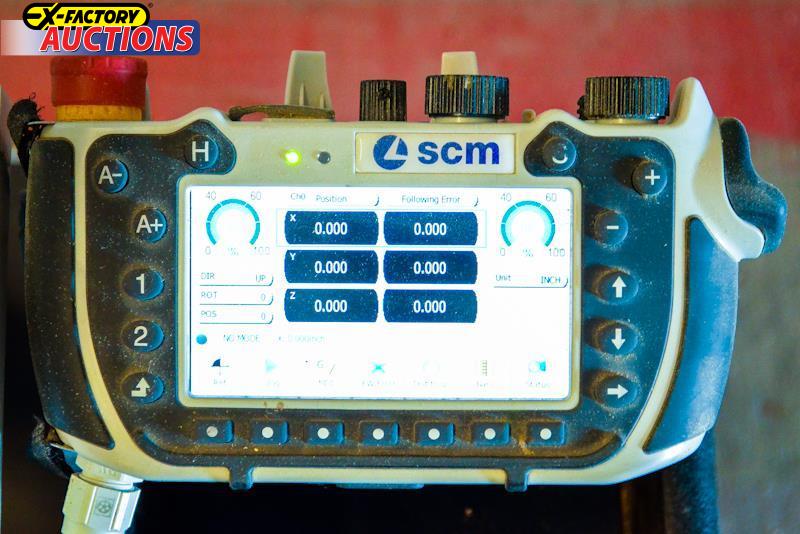

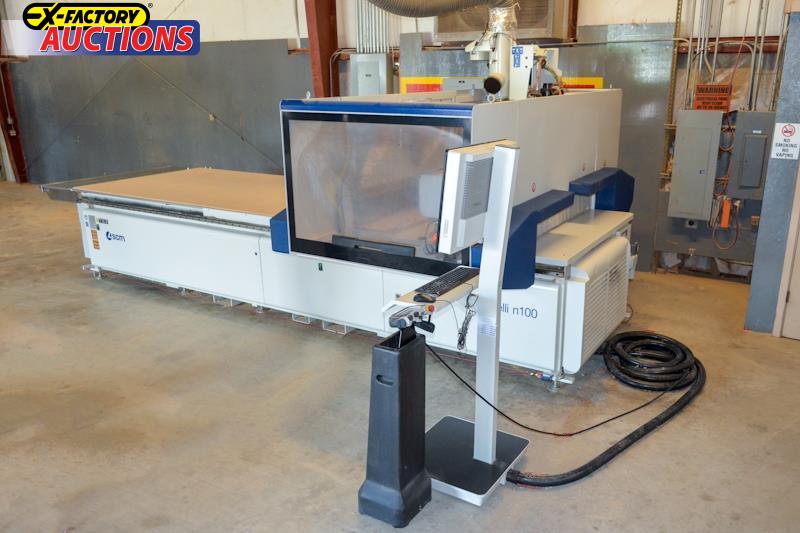

  •  Operator & Machine Control: Mobile console with Integrated PC “EYE-M” Industrial PC with 21-1/2" Full HD Multi-touch color touchscreen, "WINDOWS" Operating system, "MAESTRO SUITE" with Auto-diagnostic to Zooming, Controlled acceleration & deceleration, Encoder feedback, Dynamic tool correction via PLC due to active tool wear using space-and-time criteria, "TECPAD" Remote pendant with 7" Color touchscreen

  •  Includes: PRO-SPACE safety system which allows work table access to all sides of machine, (1) 300 m³/Hr. Vacuum pump, Automatic lube system, Tooling (As pictured)

  •  NOTE: Machine was de-installed by a technician in 2022 and is currently in storage.
