CEFLA "UNOSPRAY" SPRAYING SYSTEM (RECIPROCATING FEED THRU)
Equipment Location: REGINA, SK
FE-230577   |  Lot # 001A
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Kevin Welker
(877) 580-5844 ext. 316
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com

[FE-011013]


This is a non-auction item up for sale. If interested, please call Kevin Welker at (877) 580-5844 ext. 316 or click on the link below.

Item Sold

Event: PRECISION WOOD PRODUCTS II

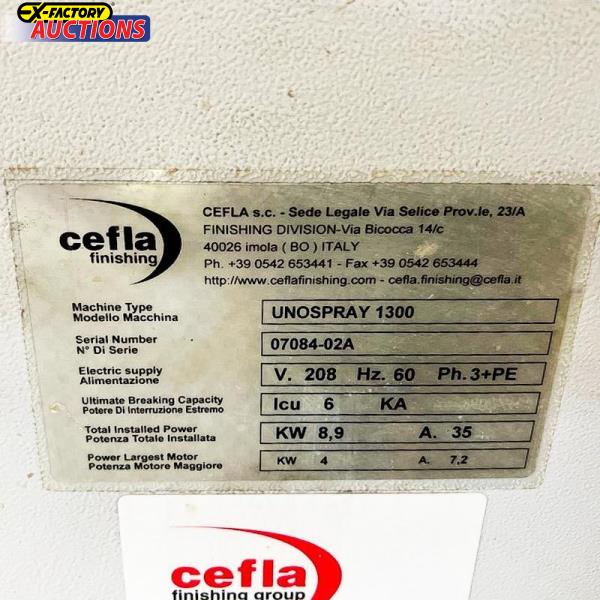

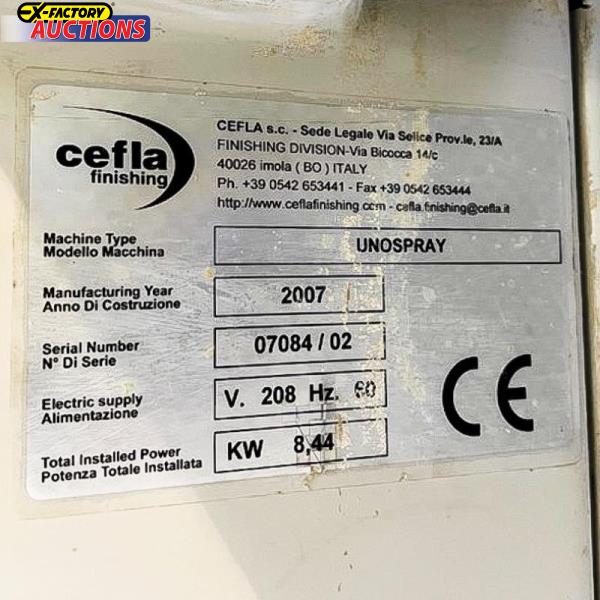

Brand/Model: CEFLA "UNOSPRAY"
Year MFG: 2007
Machine Type: SPRAYING SYSTEM (RECIPROCATING FEED THRU)
Serial #: 07084-02A
Elect./Voltage: 208 V, 60 Cy, 3 Ph.
Location: REGINA, SK
Value New: $ 195,000
Negotiable Price: $      Make an Offer
Condition: Very good condition
Dimensions: 0" L  x  0" W  x  0" H
Weight: Lbs (estimate)
Loading: Rigger Required
Comment: Also available as a Finishing Line with Drying Tunnel, EXF #FS-230113

Description:

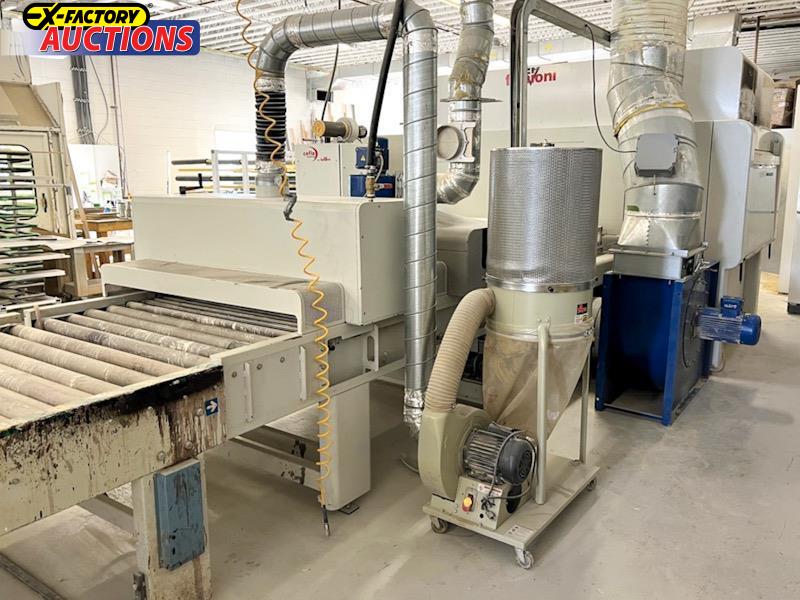

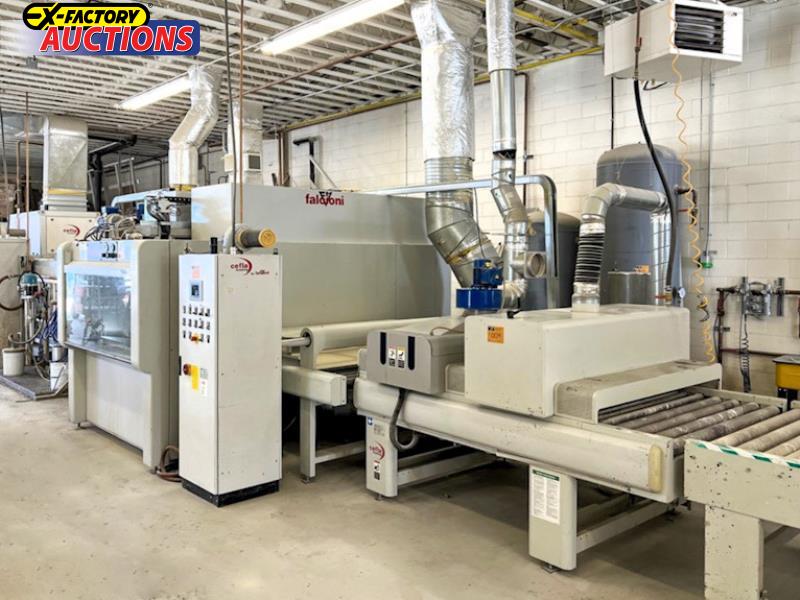

Spray Coating Line, Consisting of:

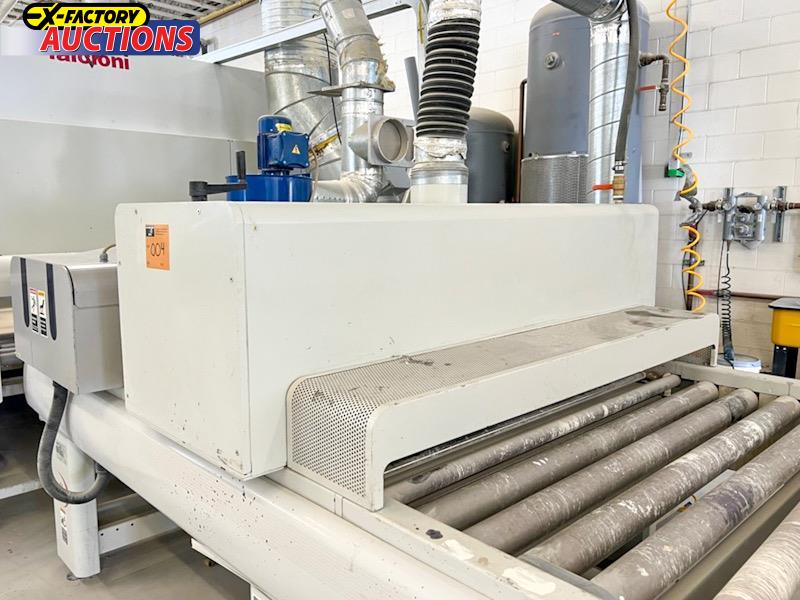

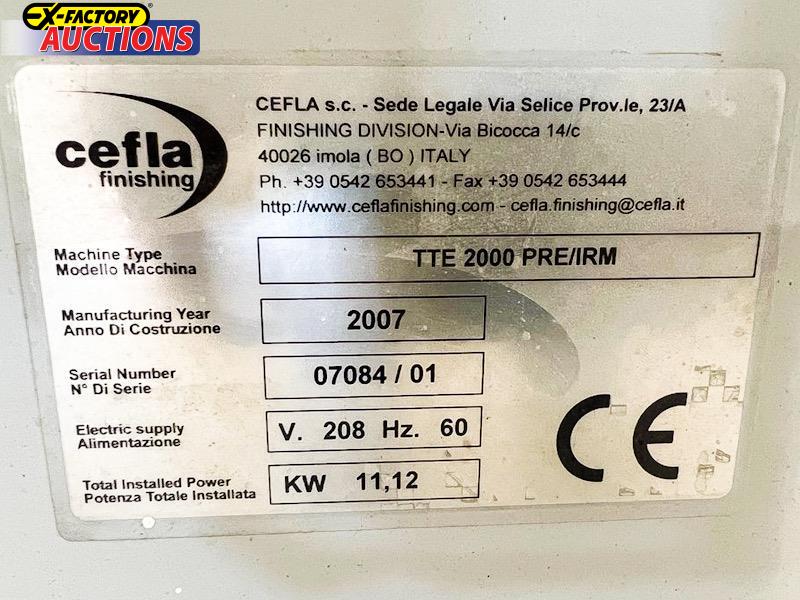

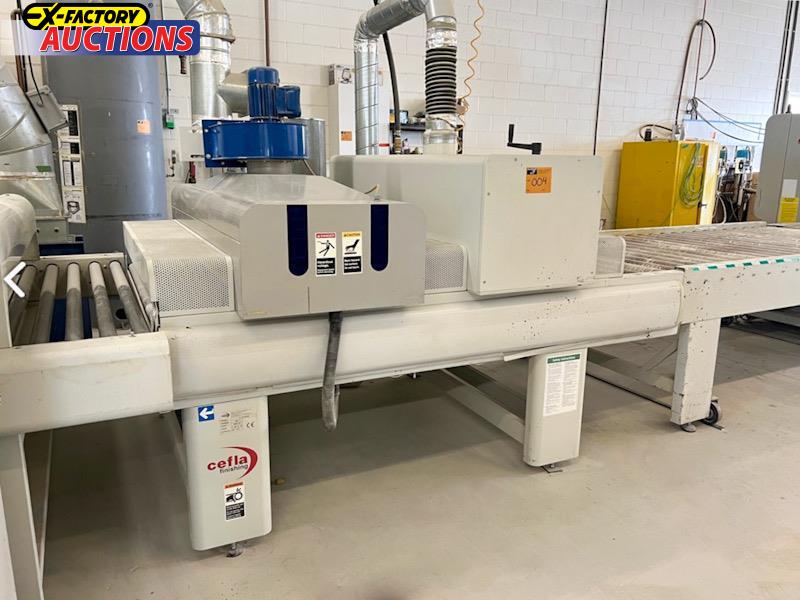

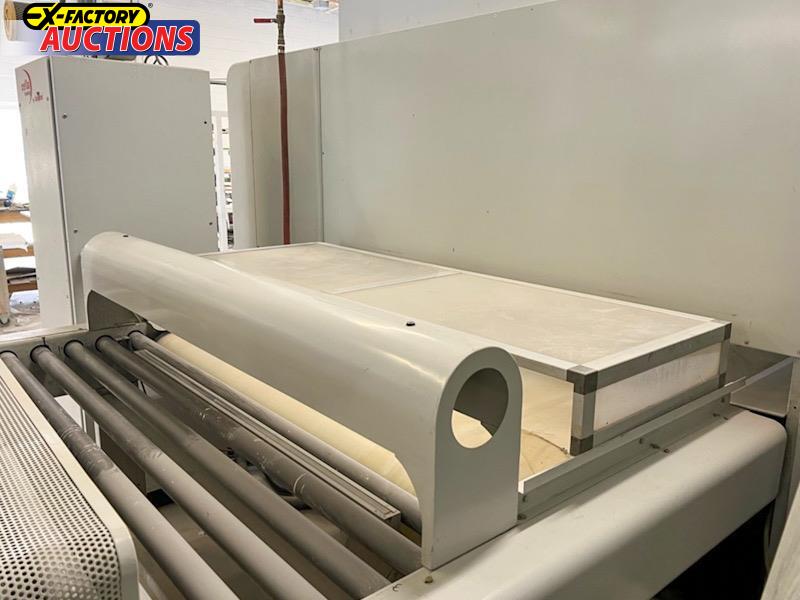

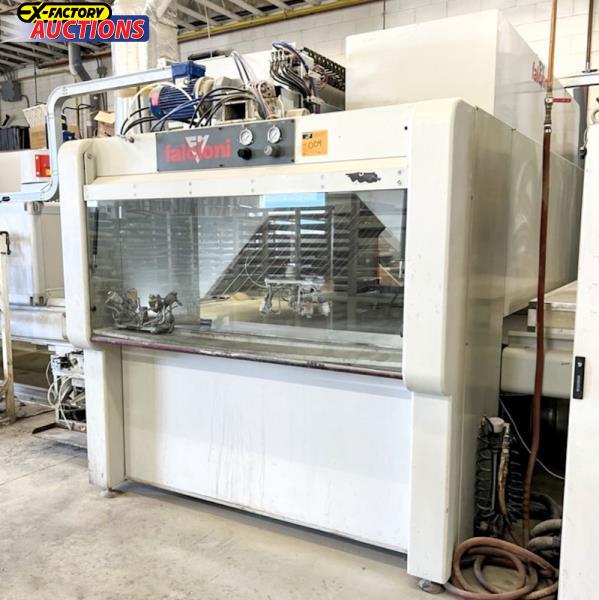

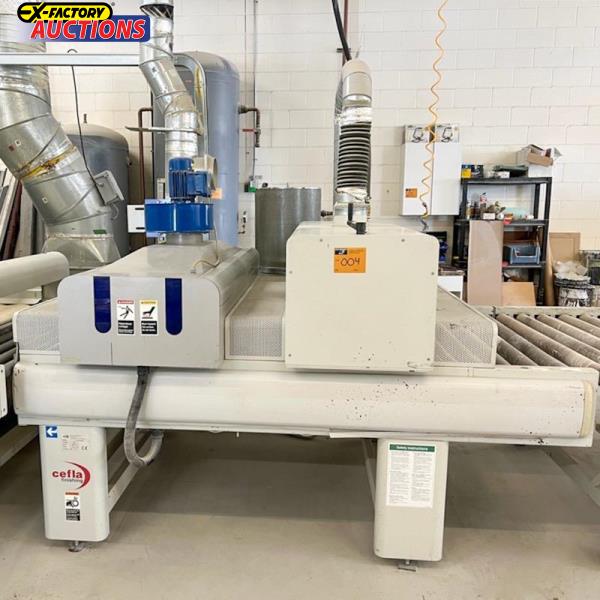

  •  2007 CEFLA/FALCIONI "TTE 2000 PRE/IRM" Rotary Air Blow-Off Panel Cleaner, S/N 07084-01, Includes: Infrared Heater to heat substrate before spraying to insure even spray coat

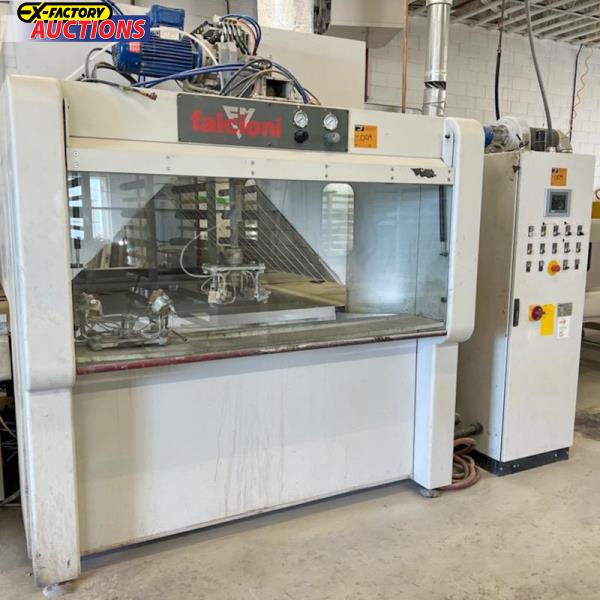

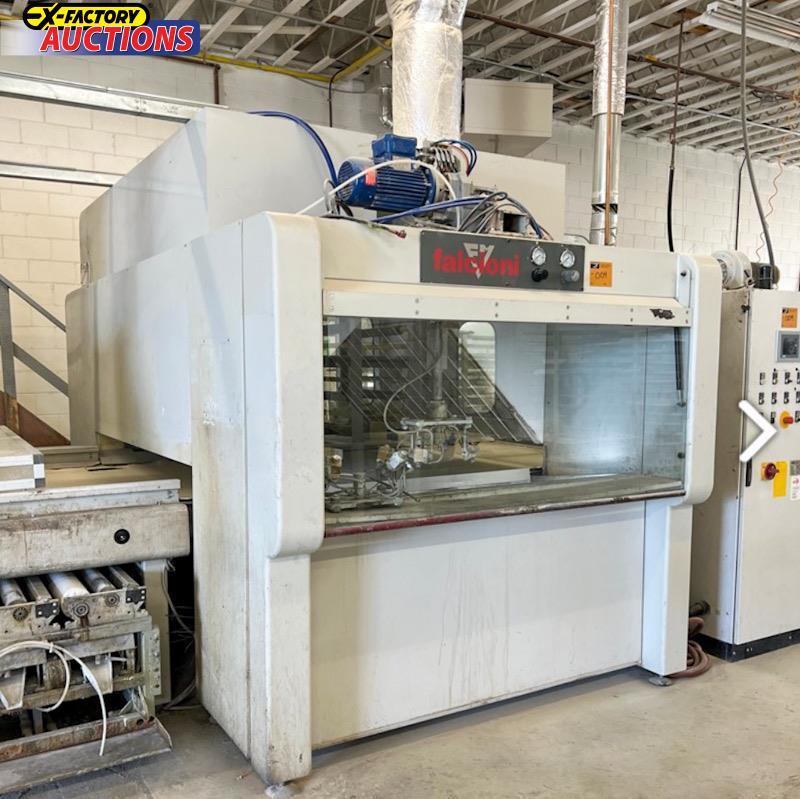

  •  2007 CEFLA/FALCIONI "UNOSPRAY 1300" Automatic Spraying System, S/N 07084-02A, Ideal for Water-based & UV Drying lacquers to reduce environmental impact, Width 7.87" - 51.18", Minimum length 300 mm (11.81"), Thickness 4 - 50 mm (0.16" - 1.97"), Includes:

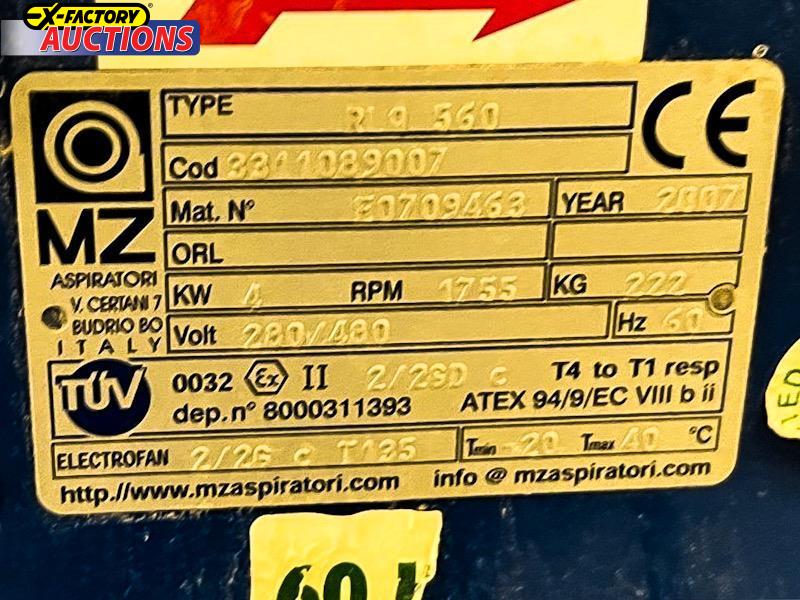

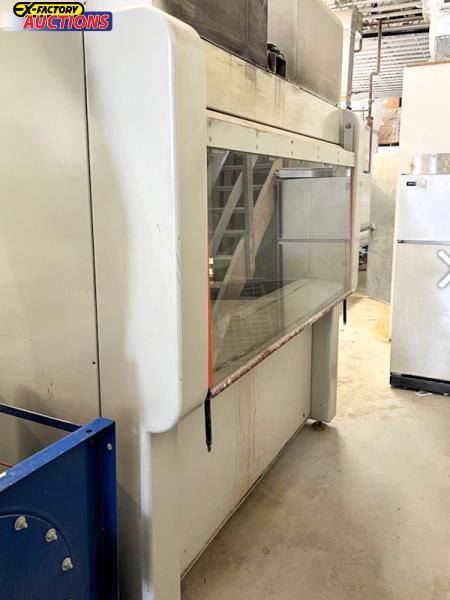

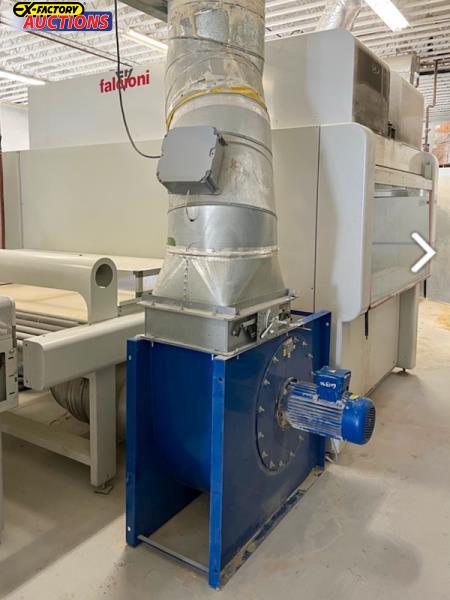

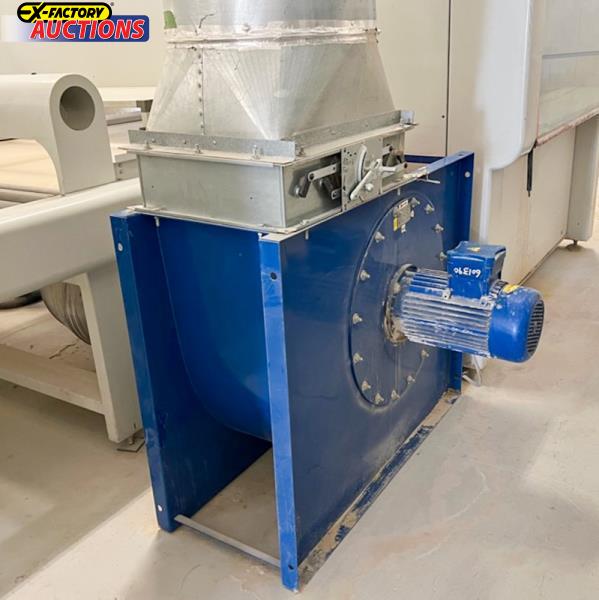

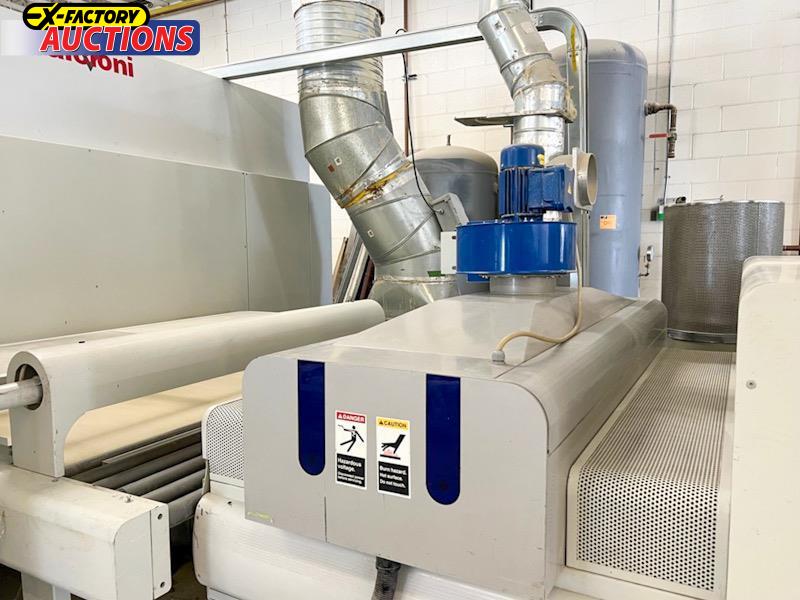

  •  4,280 mm (168.50") W x 2,140 mm (84.25") L Fully-pressurized spray enclosure, Machine body height 2,812 mm (110.71"), Maximum height 4,100 mm (161.42"), Upper air diffusion plenum connected with (2) Inlet fans (Intake from inside), 3 kW (4 HP), with Total flow rate 8,000 cbm/Hr. & Filters, & 7.5 kW (10 HP) Suction tower exhaust fan with Flow rate 8,000 cbm/Hr.

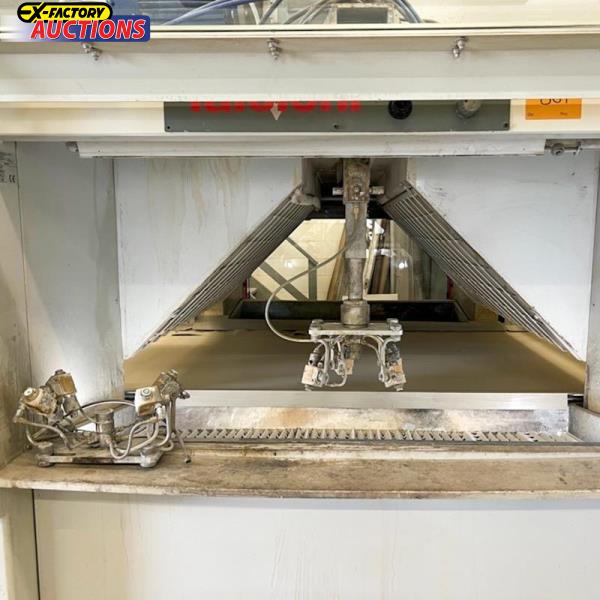

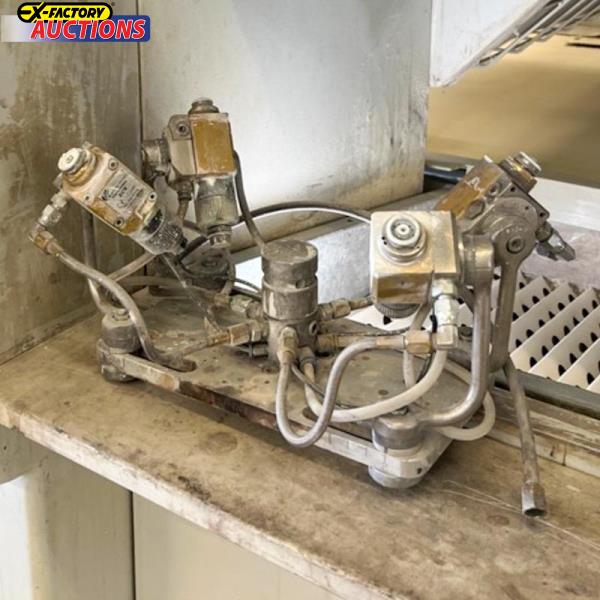

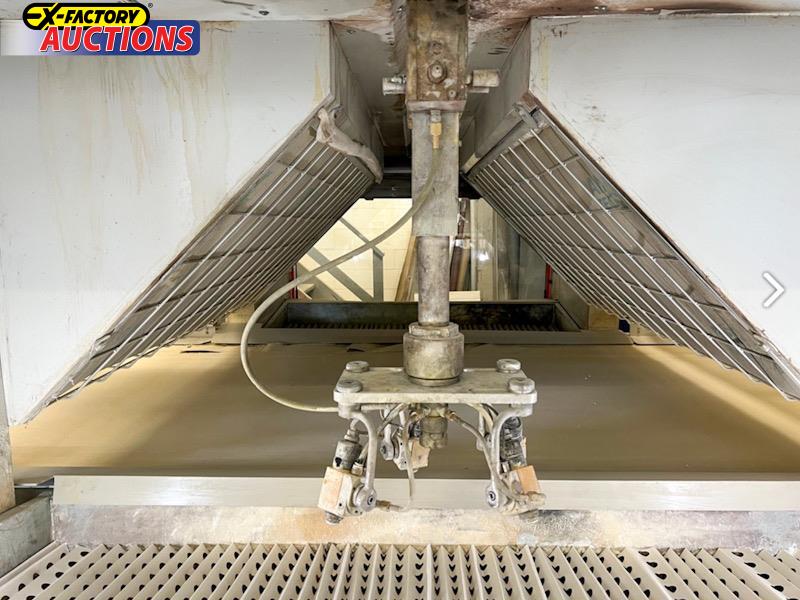

  •  Quick-change gun supporting trolley, Driven by toothed timing belts, with Brushless motor with Electronic control, Reciprocating slider, Variable speed, & (4) Lacquer feeding circuits with Filter

  •  Light barrier gun control, with (104) Electro-diodes sensors to send material size to programmable controller which opens & closes guns

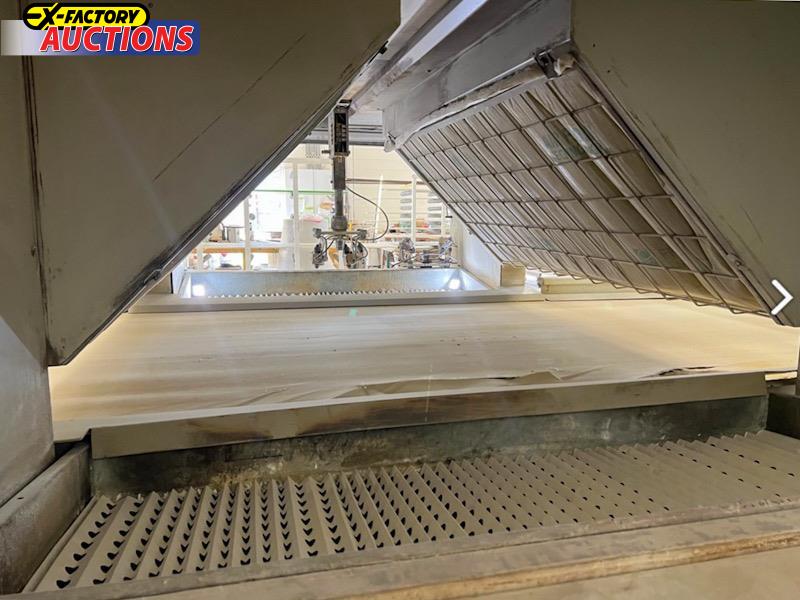

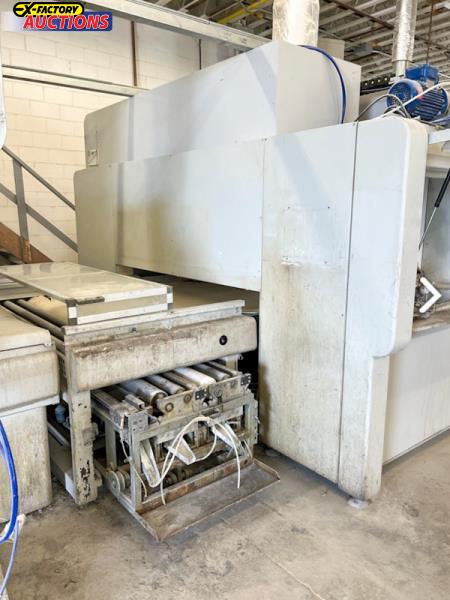

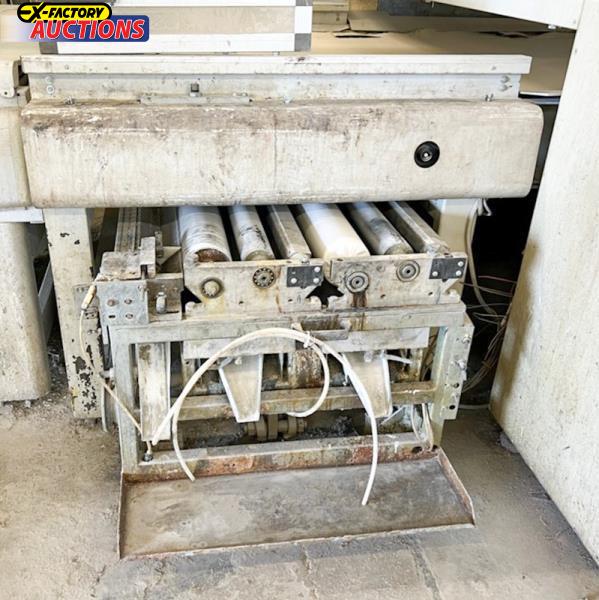

  •  Conveyor system, with Solvent-proof continuous belt made in CFB, & Removable 500 mm (19.69") Infeed roller section with 100 mm (3.94") Diameter Rollers with Light barrier gun control with (104) Electro-diodes sensors

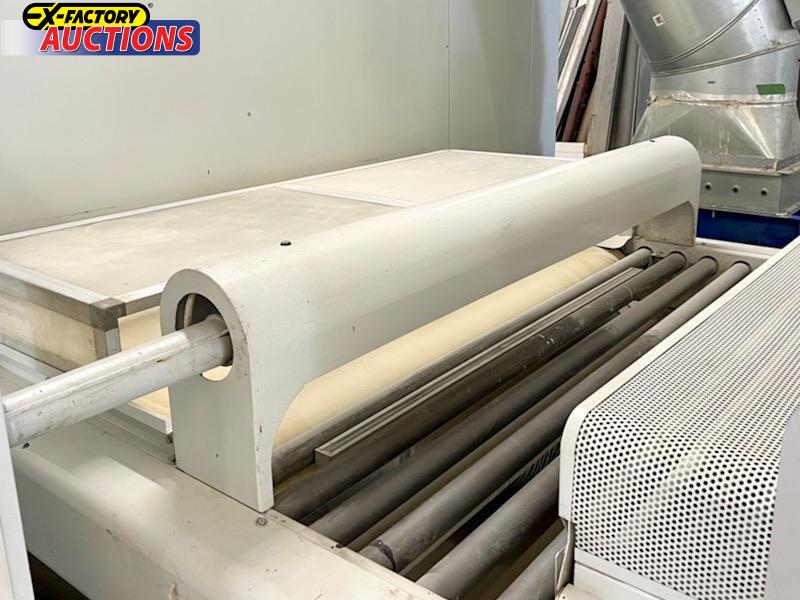

  •  Automatic continuous belt cleaning lacquer recovery system, For maximum efficiency & reduced maintenance, with (4) Chromium-plated reverse rollers with electronic position control, Chromium-plated roller, Scraper & Pneumatic device for overspray collection, & Removable trolley with Final counter-rotary rollers

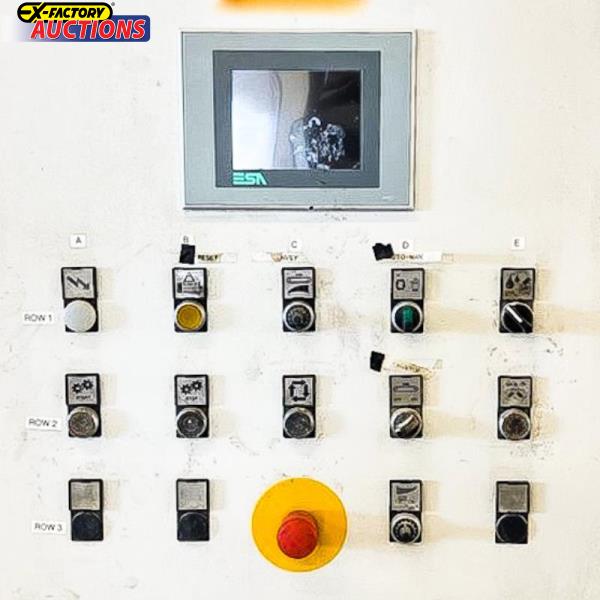

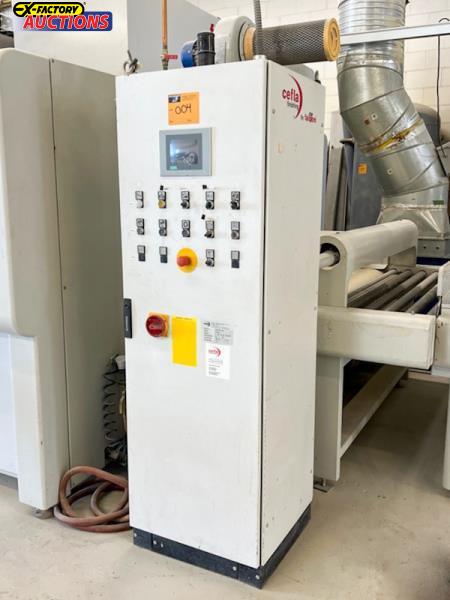

  •  Microprocessor control

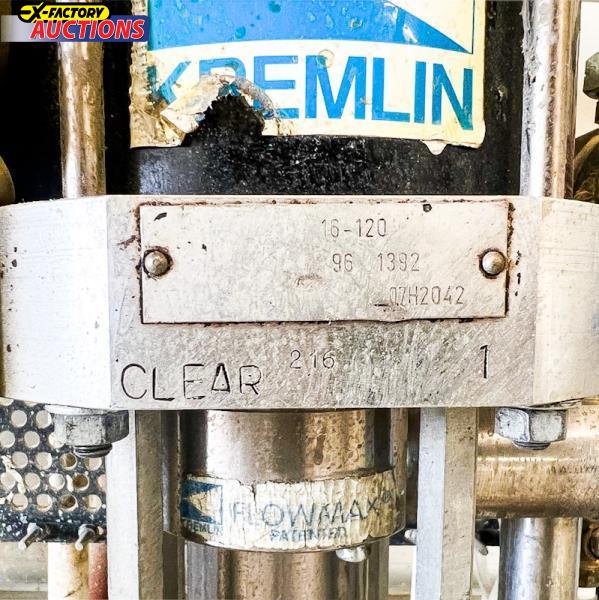

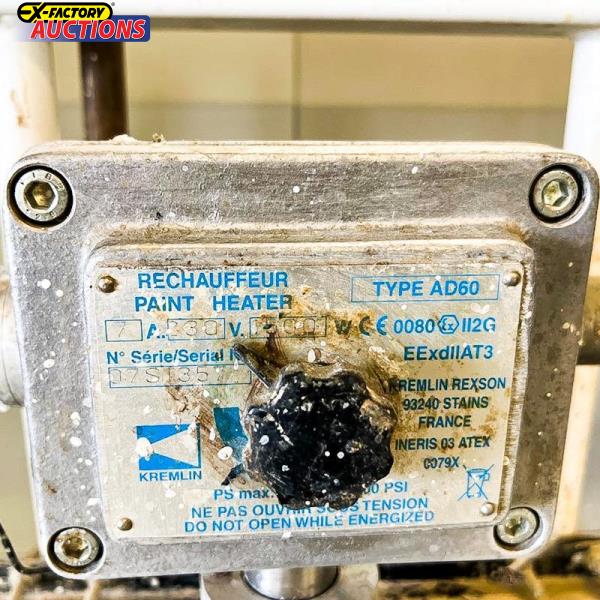

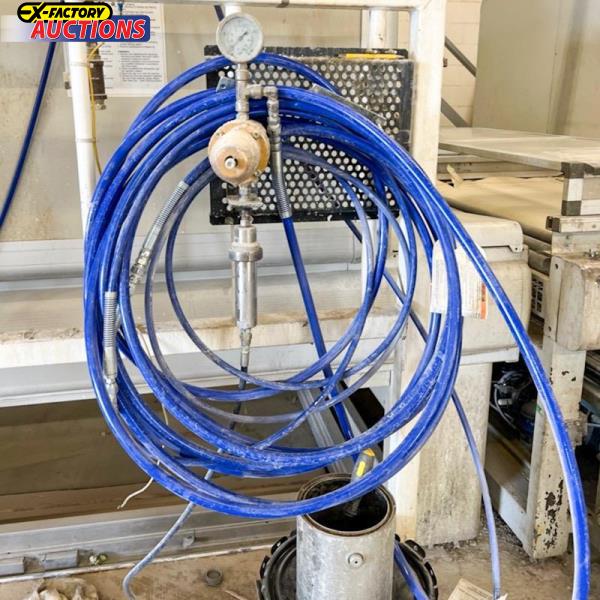

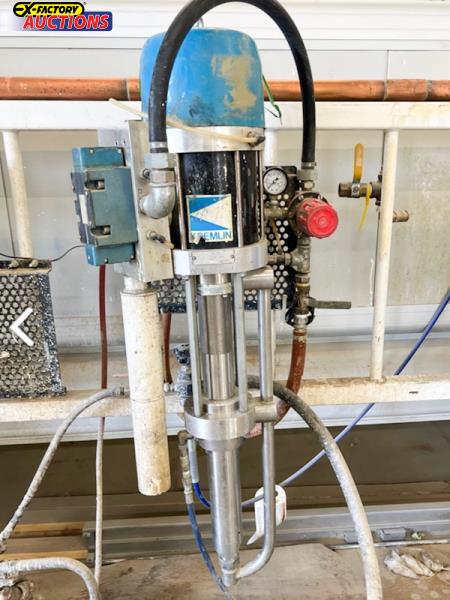

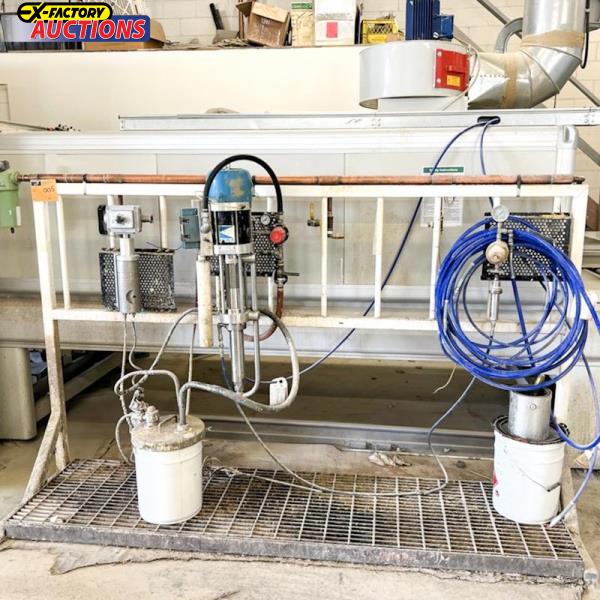

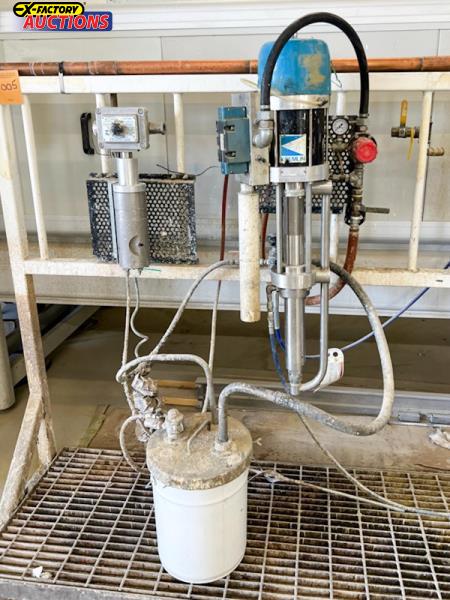

  • 2006 KREMLIN Pump station

  •  CEFLA Motorized Belt Conveyor, On tracks allowing to be pushed out of way

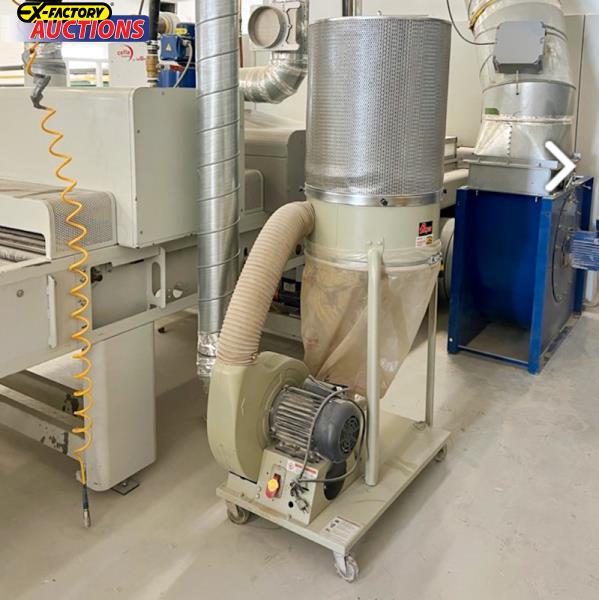

  •  Cartridge-Type Dust Collector

  •  NOTE: Also available as a Finishing Line with 2007 CEFLA/FALCIONI "FEV E3/4 TT 7000 SCR" Hot Air/Hot Water Drying Tunnel, EXF #FS-230113.
