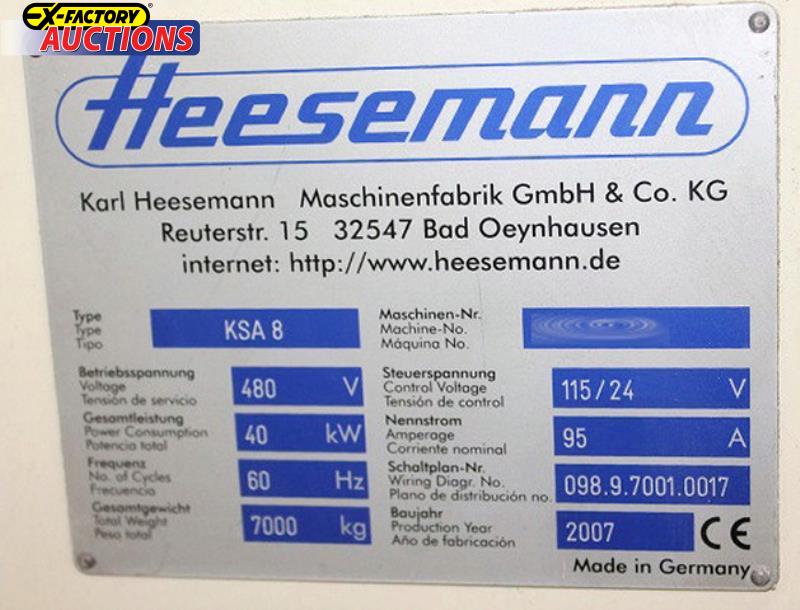

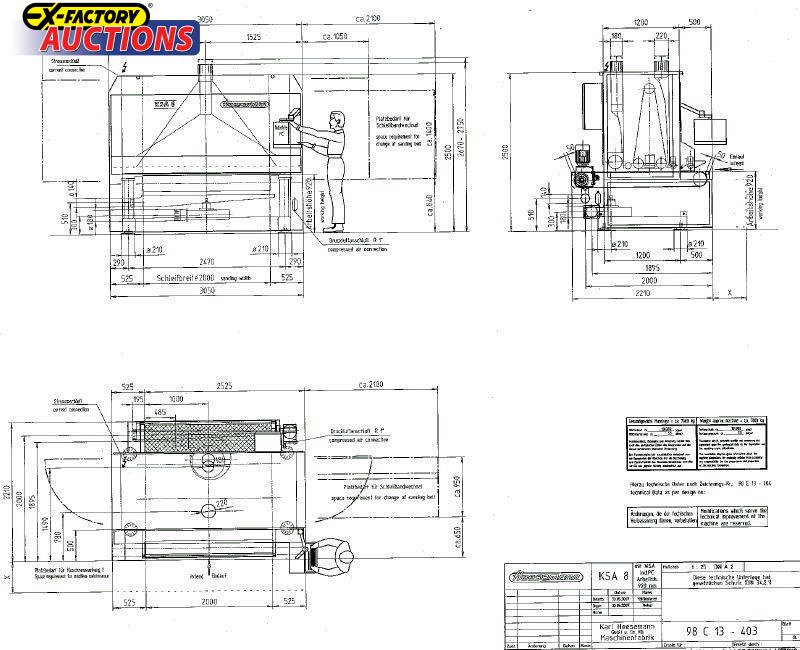

Brand/Model: HEESEMANN "KSA 8"
Year MFG: 2007
Serial #: 2007.07.231
Elect./Voltage: 480 V, 60 Cy, 3 Ph.
Location: Zeeland, MI
Condition: Requires repair
Dimensions: 0" L  x  0" W  x  0" H
Weight: Lbs (estimate)
Loading: $ 0 Loading fee
Comment: For those Extra wide parts that need to be Sealer or Primer sanded!
Buyer Premium: 12.5%

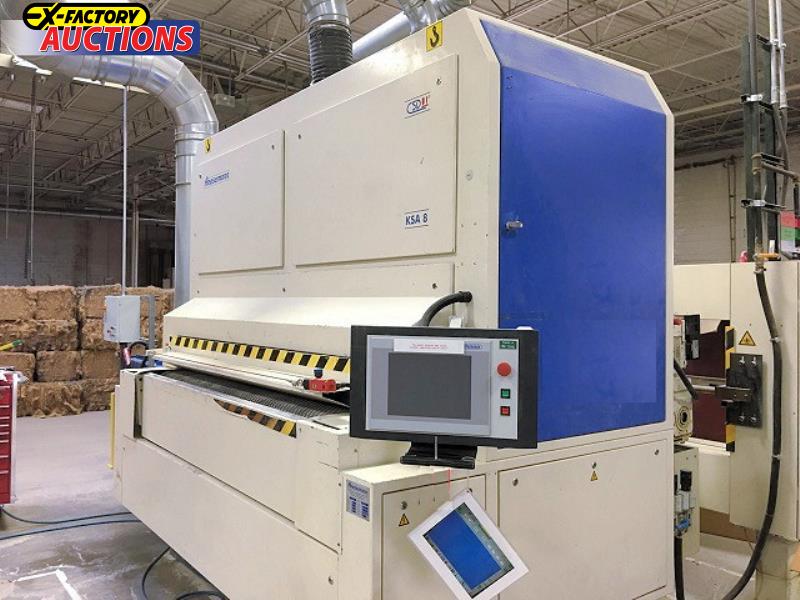

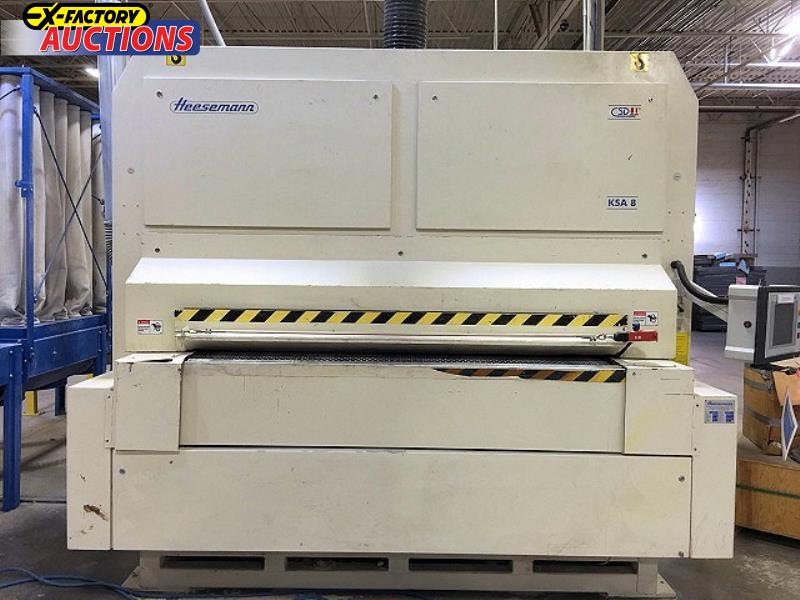

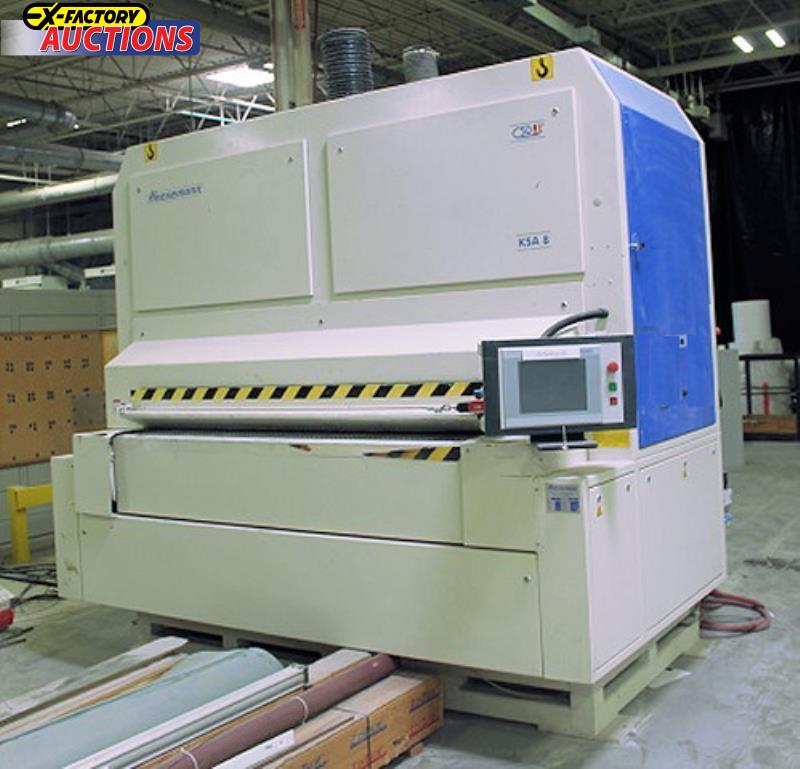

This is a Very Special Extra Wide HEESEMANN KSA 8 CSD "Lacquer / Sealer" Sander with a Belt width of 80 inches !!

Equipped with HEESEMANN's patented "CSD" selective pressure adjustment system, sensors placed every 5/8" (16 mm) sense part configuration; pressure for each segment can be pre-programmed to provide less pressure on the outer edges or more in the center if desired. The "CSD" computer control will hold a maximum of (20) programs.

Equipped with:

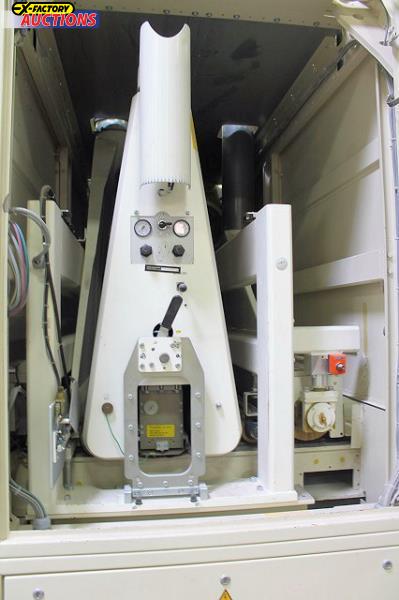

  • Segmented Polishing Platen, segments are computer controlled to conform to irregular shaped panels sanding pressure on panel edges is adjustable.
  • Platen will accept panel thickness variation up to 5/64" (2 mm).

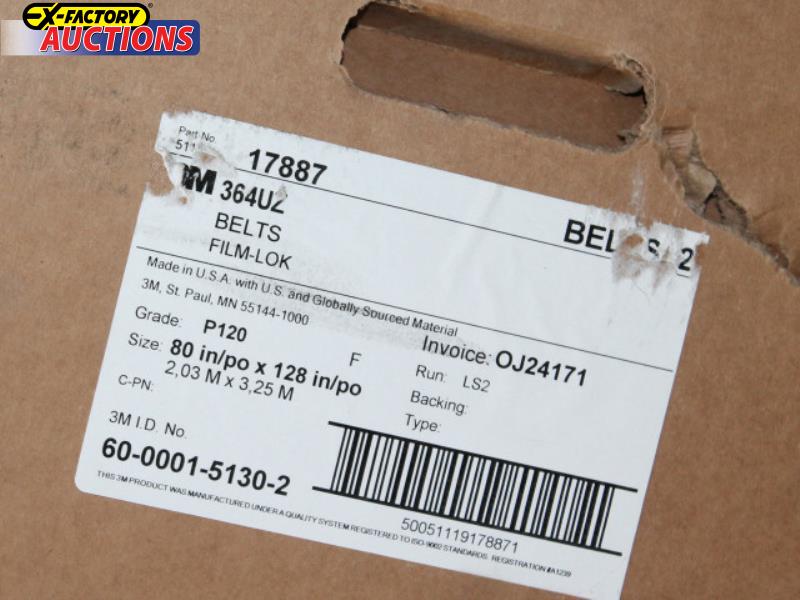

  • 26 & 31 kW (35 & 42 HP) dual speed motor, 10 + 20 m/Sec. (33 + 66 FPM) abrasive belt speed, abrasive belt size 2,050 mm x 3,250 mm (80.7" X 128"), pneumatic air tension and tracking control.
  • 250 mm Dia. Rotary Panel Cleaning Brush, 5 HP motor, and 150 mm Outfeed Rotary Panel Cleaning Brush, 2 HP motor.

    Additional features:
  • Vacuum bed assembly to ensure flatness of parts and feeding of small parts.
  • Computer control and monitor, light indication of panel movement; electronic abrasive belt tracking.

    Feed System:

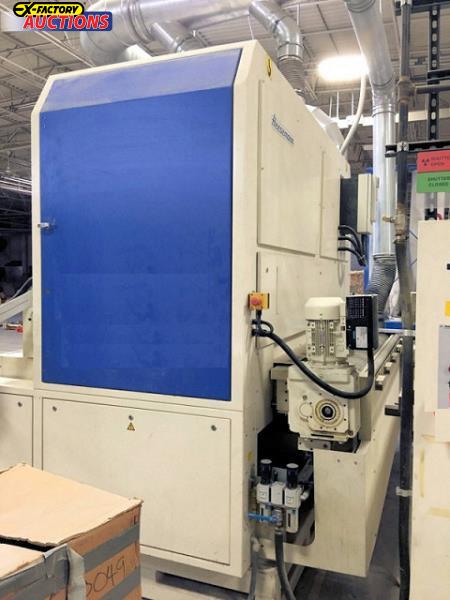

  • Variable feed speed 5 - 15 m/Min. (16 - 49 FPM), 4 kW (5 HP) feed motor, motorized thickness opening.

    NOTE:  This sander had a Brand New $17,000 display/control installed shortly before it was taken out of service in 2016. The machine has been in storage since that time.


    Machine State: Cleaned & placed in storage

    Inspection: Available for Inspection (By Appointment Only)
Final Removal Date: 2/15/2023
