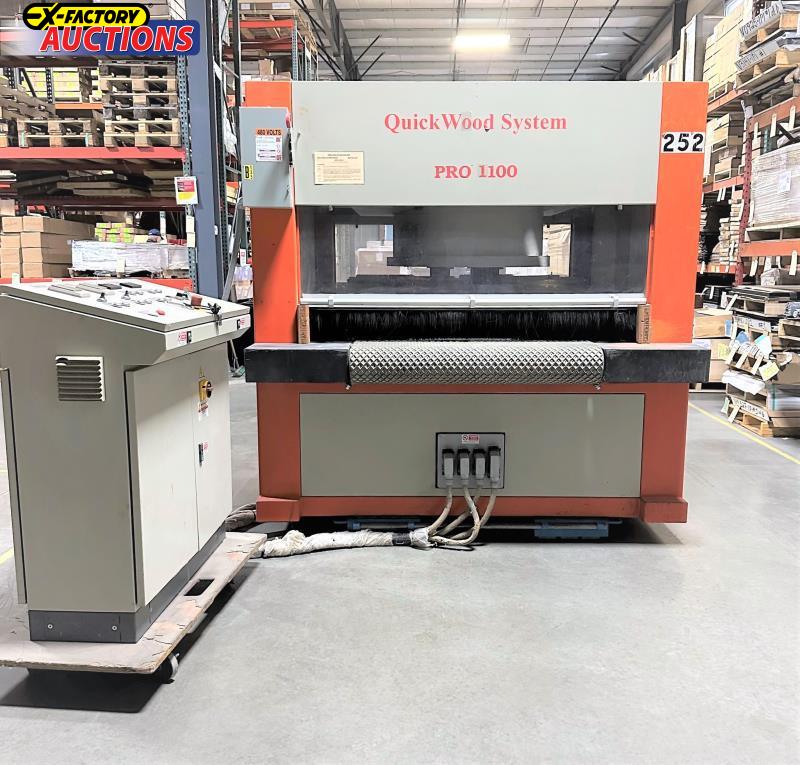

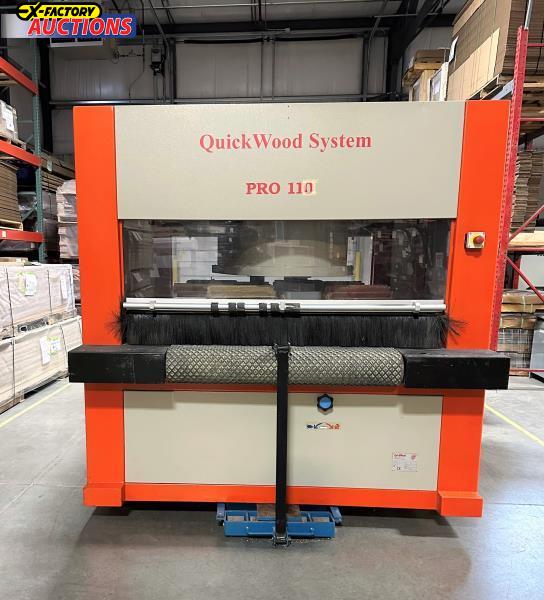

QUICKWOOD "PRO-1100" DENIBBING SANDER (44" 8 HEAD BRUSH)
Equipment Location: Suring, WI
FD-230110   |  Lot # 010
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Talice Luna
(877) 580-5844 ext. 379
Intl. +1 (704) 841-2001





This is a non-auction item up for sale. If interested, please call Talice Luna at (877) 580-5844 ext. 379 or click on the link below.


Brand/Model: QUICKWOOD "PRO-1100"
Year MFG: 2003
Machine Type: DENIBBING SANDER (44" 8 HEAD BRUSH)

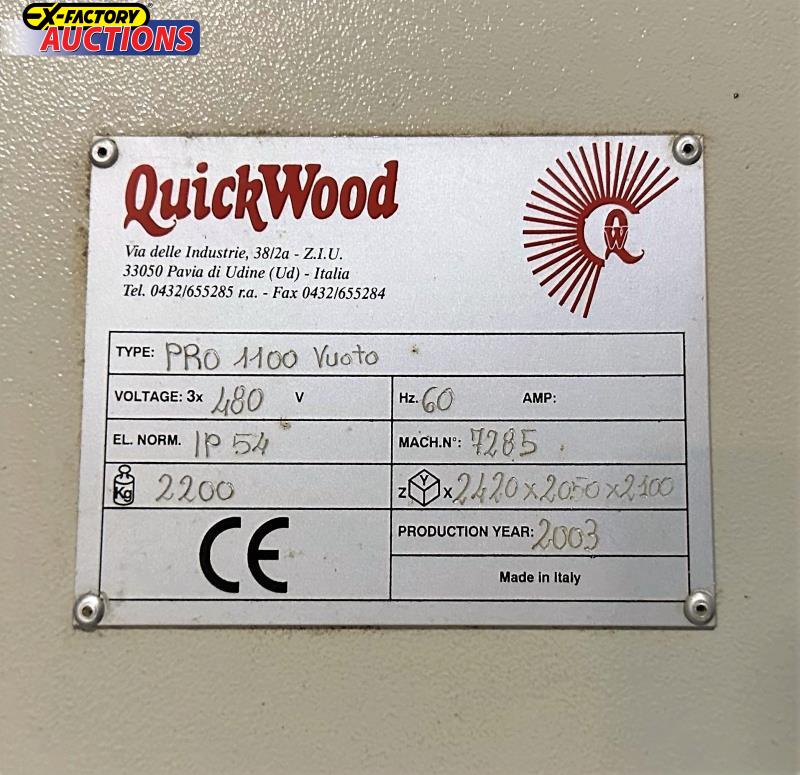

Serial #: 7285
Elect./Voltage: 480 V, 60 Cy, 3 Ph.
Location: Suring, WI
Value New:
Negotiable Price:      Make an Offer
Condition: Good condition
Dimensions: 8" L  x  8" W  x  7" H
Weight: 5,500 Lbs (estimate)
Loading: Rigger Required
Comment:

Description:
8 Head Brush Denibbing Sander

Specifications:

  • (1) 8-Head with brush loadings, 44" max. width cap.

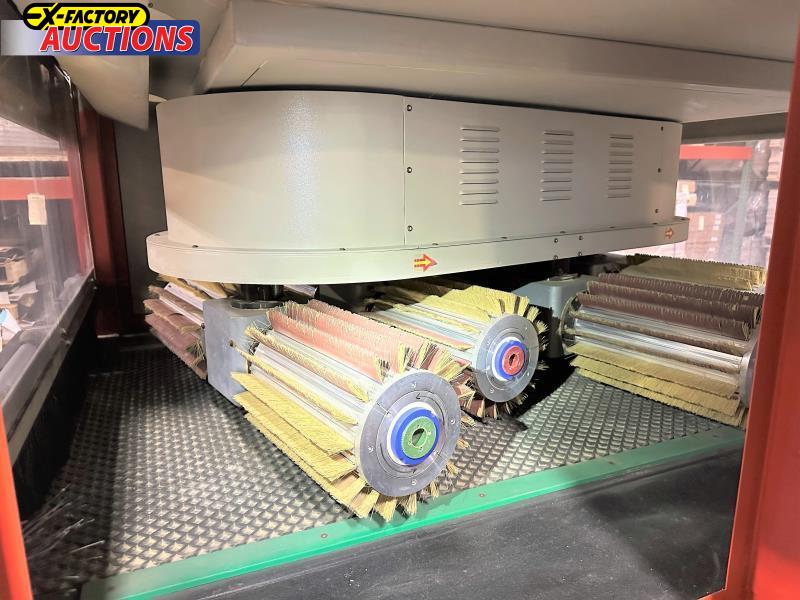

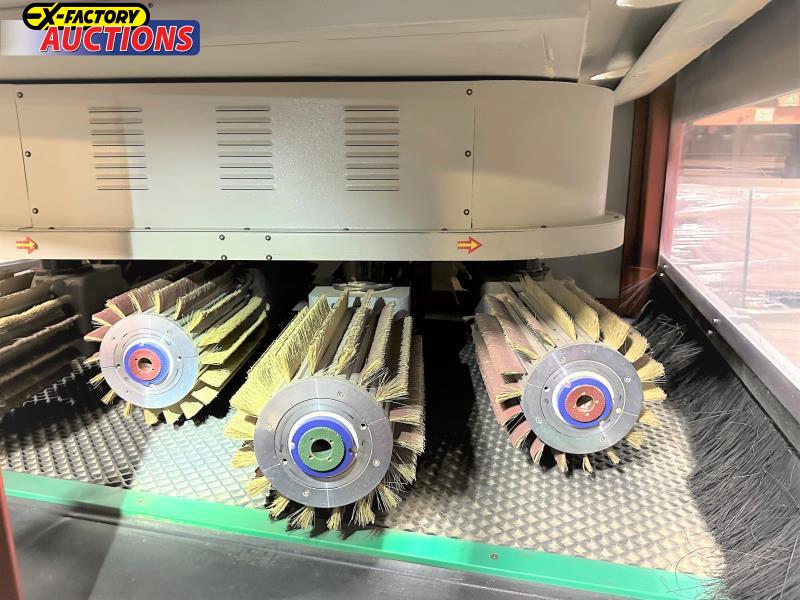

  •   (1) Carousel head with (4) double arbor heads consisting of (8) counter-rotating spindles
  • The (4) heads are staggered left/right and center mounted for a carousel operation; each head with a 3 HP motor and 200 to 1,200 RPM spindle speed

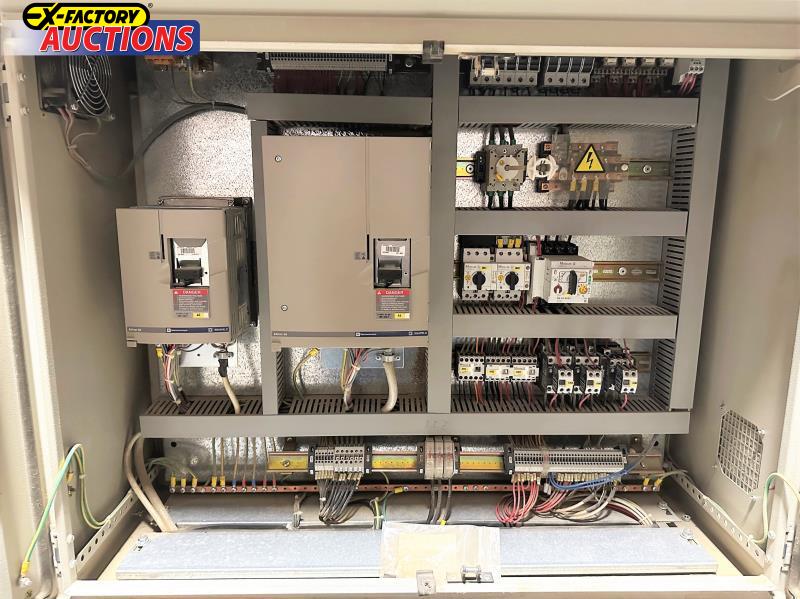

  • Inverter controlled with keypad and RPM readout, 15-1/2" long spindles extend out each side of head drive

    Features:  Carousel speed 4 to 28 RPM, 3 HP drive motor, speed inverter controlled with keypad and RPM readout.
  •  Spindles hold discs or a combination of QUICK abrasive Discs

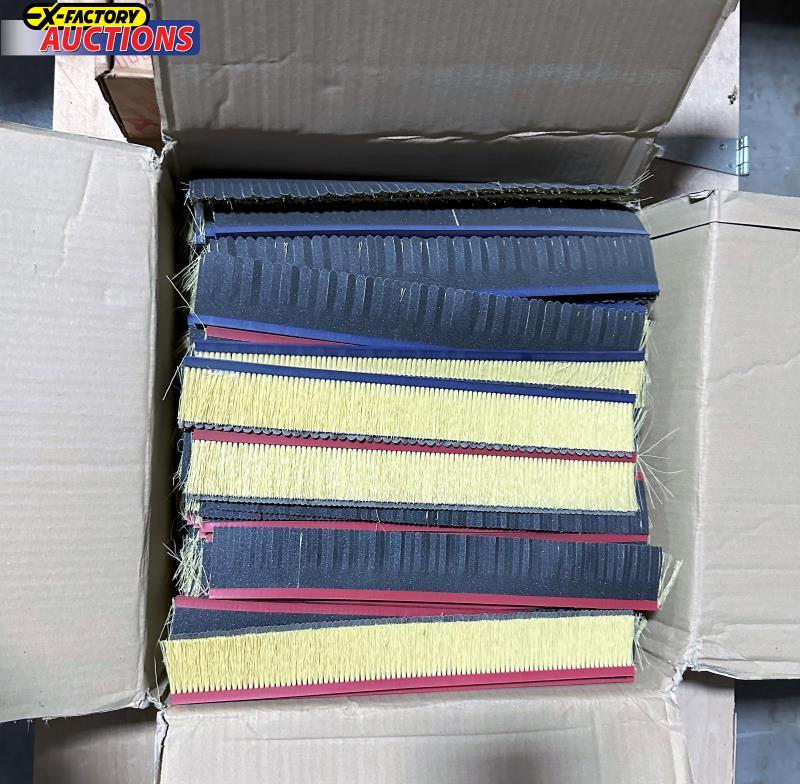

  •   Nylon brushes, or nylon impregnated discs
  • 10" - 14" Max. disc dia., brush loadings mounted on a slight angle to create an oscillating motion
  • Control of carousel RPM, brush RPM, conveyor feed speed and thickness opening
  • "Vactronic" Vacuum bed conveyor feed system
  • 10 HP vacuum fan assembly, variable feed speed 6 to 46 FPM via 3 HP feed drive
  •   0" to 4" motorized thickness opening with keypad entry and LED readout.

    Includes:  Full sound enclosure
  • (8) 6-1/2" dia. dust collection outlets

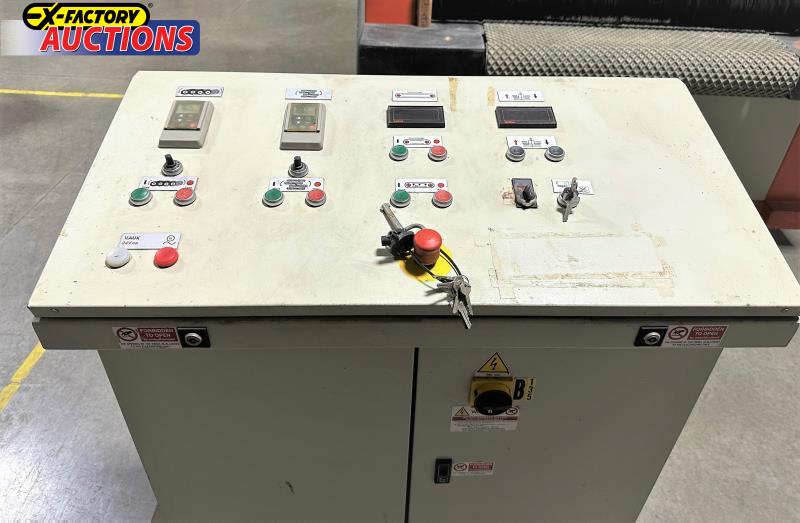

  • 5,500 CFM required and integrated controls at front of the machine.

    NOTE:  Items seen in the background are NOT a part of this Lot.  Above specs taken from literature and thought to be accurate.  As always please take advantage of the inspection period to verify.
