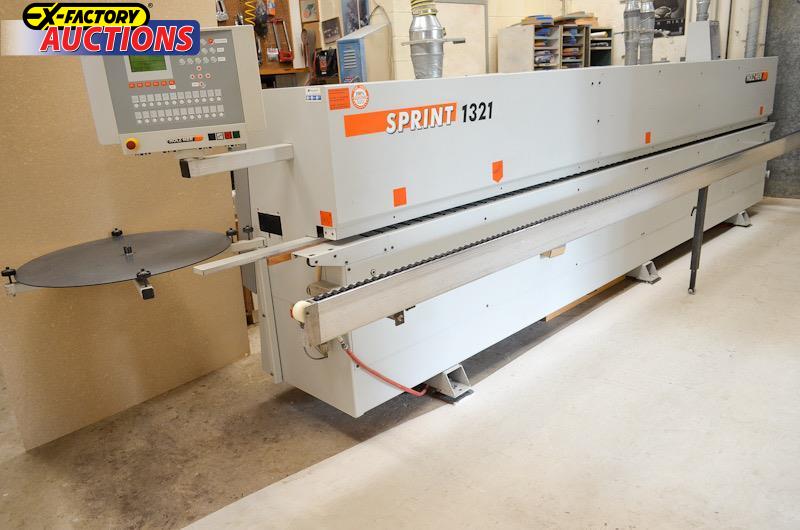

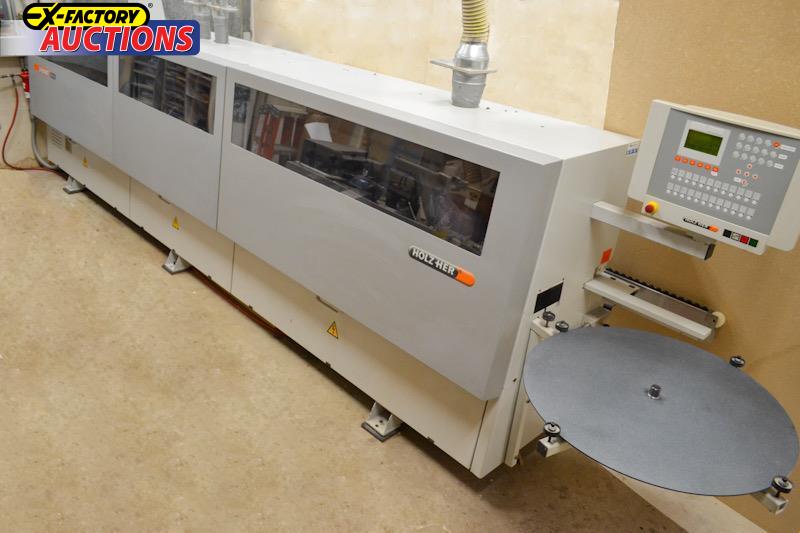

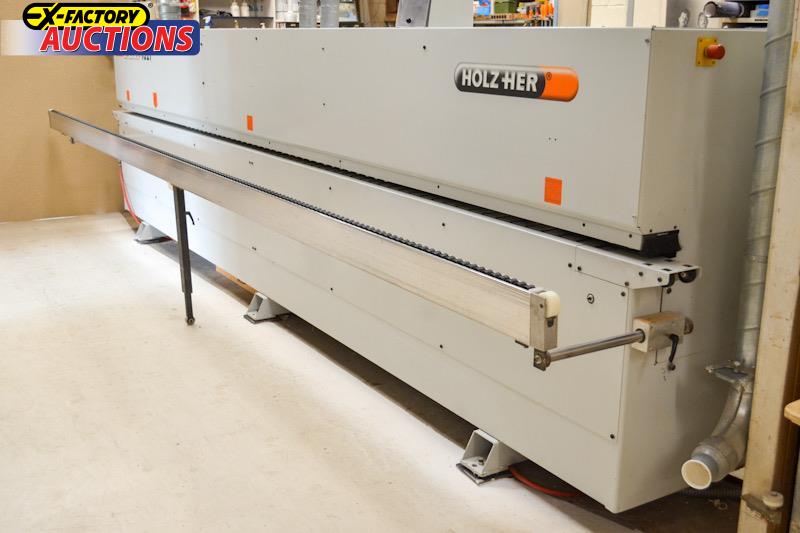

HOLZ-HER "1321 SPRINT" EDGEBANDER (W/PRE-MILL & CORNER ROUNDING)
Equipment Location: BLUE ISLAND, IL
EU-230737   |  Lot # 001
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Kevin Welker
(877) 580-5844 ext. 316
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com

[EU-014290]


This is a non-auction item up for sale. If interested, please call Kevin Welker at (877) 580-5844 ext. 316 or click on the link below.


Event: C-V CUSTOM COUNTER TOPS & CABINETS
Brand/Model: HOLZ-HER "1321 SPRINT"
Year MFG: 2005
Machine Type: EDGEBANDER (W/PRE-MILL & CORNER ROUNDING)

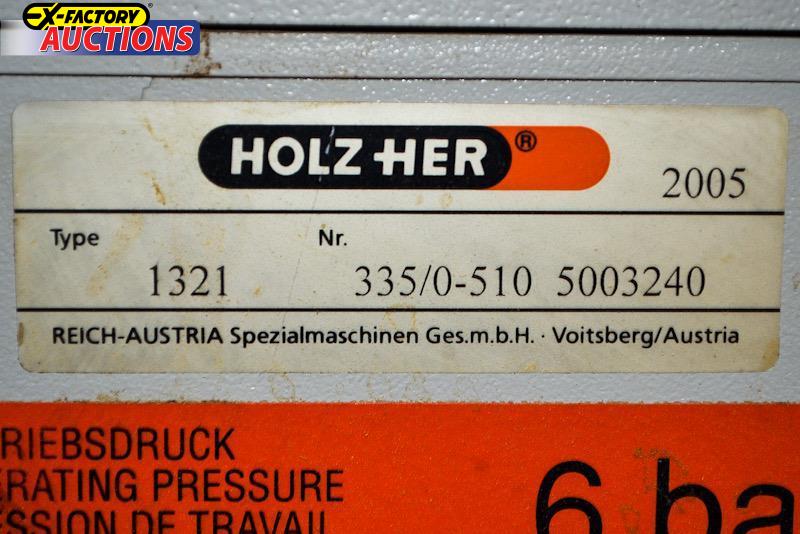

Serial #: 335/0-510 5003240
Elect./Voltage: 230 V, 60 Cy, 3 Ph.
Location: BLUE ISLAND, IL
Value New: $ 110,000
Negotiable Price: $ 27,000     Make an Offer
Condition: Excellent condition
Dimensions: 252" L  x  63" W  x  70" H
Weight: 5,500 Lbs (estimate)
Loading: Rigger Required
Comment: 633 Hrs. only!

Description:

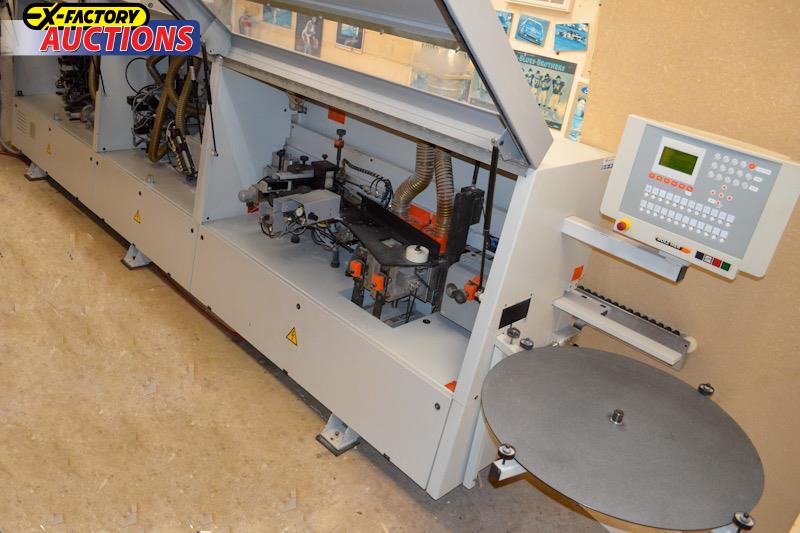

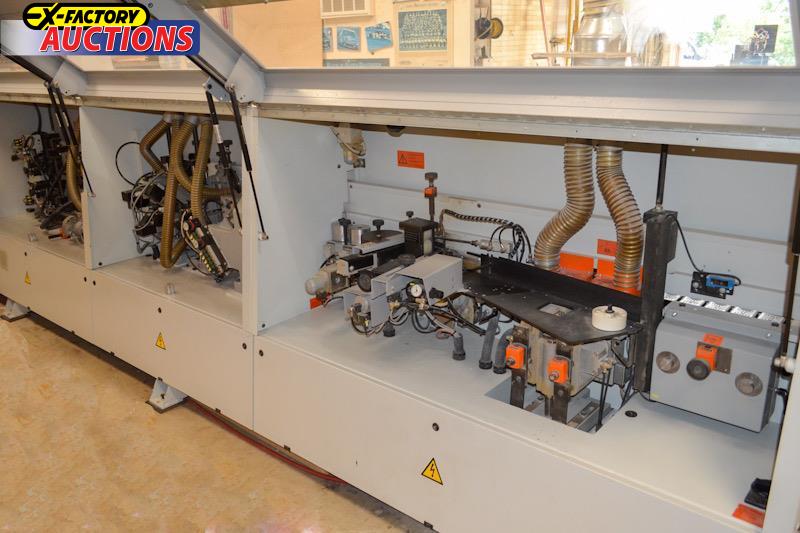

Edgebander, with Pre-Milling & Corner Rounding – 633 Hrs. Only!

  • 0.4 - 15 mm (0.02" - 0.59") Edgebanding thickness, 3 mm (0.12") Maximum coil thickness, 15 mm (0.59") Maximum strip thickness

  • 55 mm (2.17") Edgebanding height

  • 6 - 50 mm (0.24" - 1.97") Panel thickness, 60 mm (2.36") Minimum panel width, 180 mm (7.09") Minimum panel length

  • 35-1/2" Feed chain height, 18 MPM (59 FPM) Feed speed, 14" Outboard support adjustment

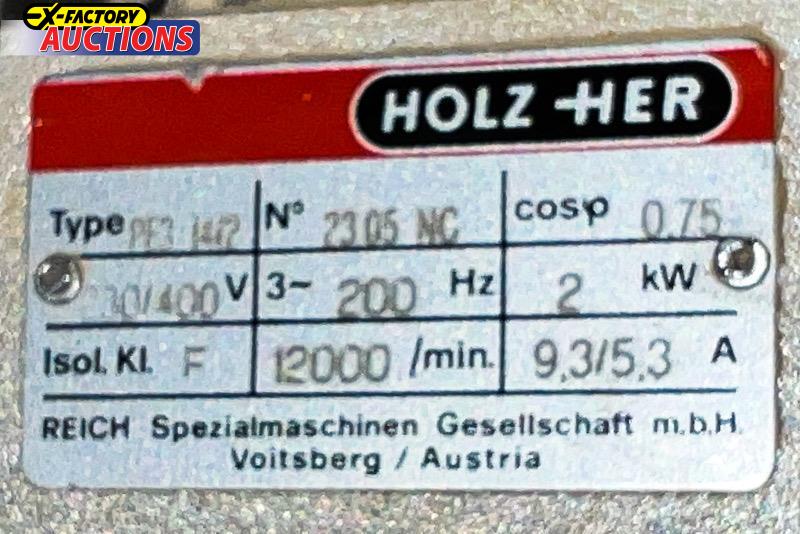

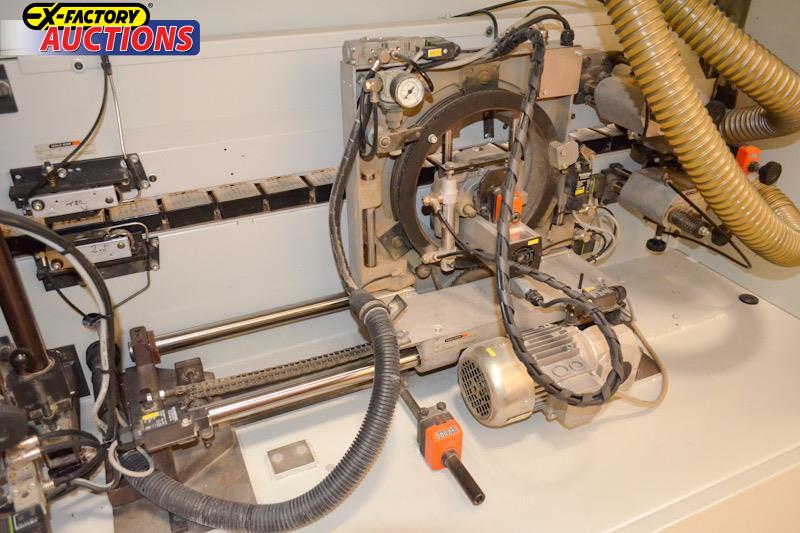

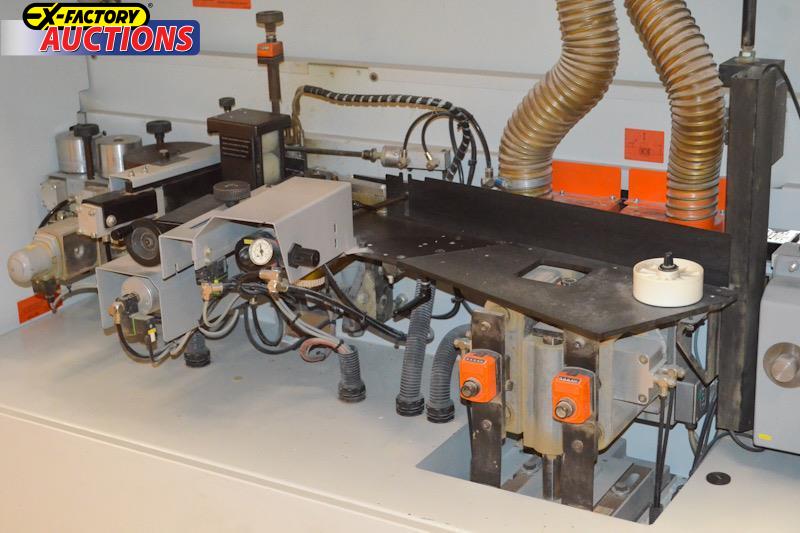

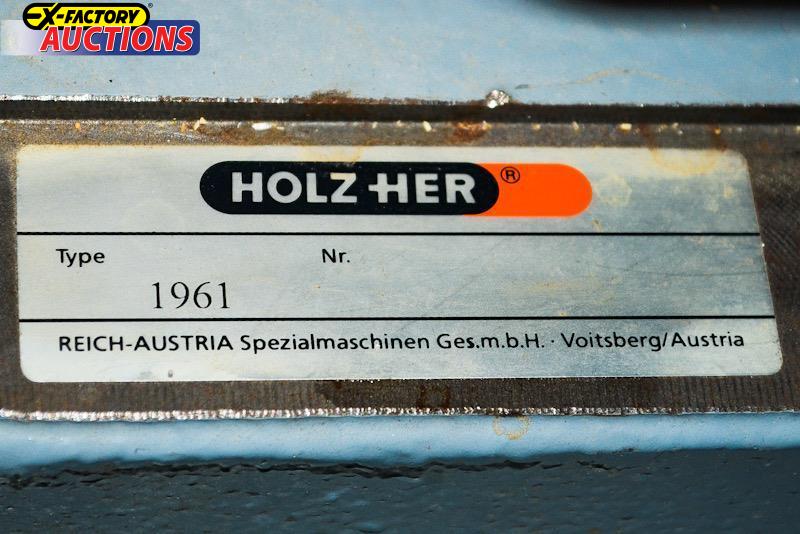

  • "1961" Pre-milling unit, with (2) 2 kW (2-3/4 HP) - 12,000 RPM - 200 Hz Motors, with Up & down cutting modes, & 5 mm (0.20") Plunge travel

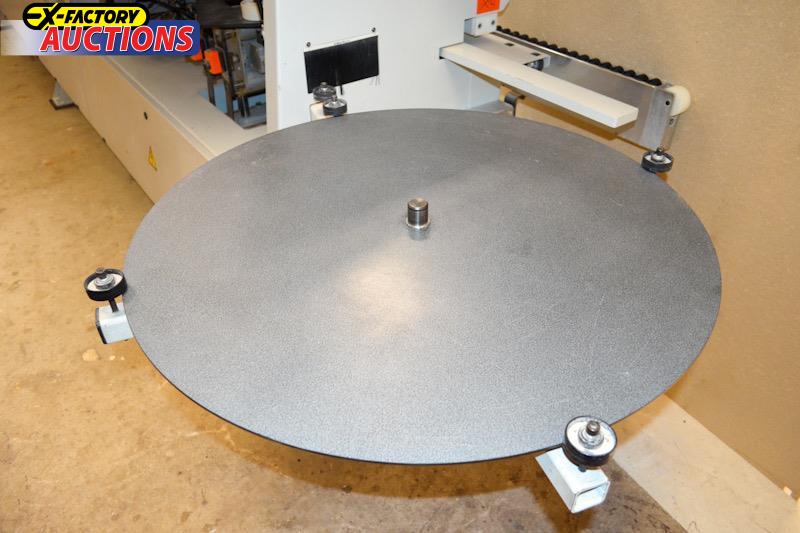

  • 820 mm (32.28") Diameter Coil table

  • "1903" Automatic edge magazine, For solid edges, strips, & coiled material, with 40 mm (1.57") Maximum loading capacity

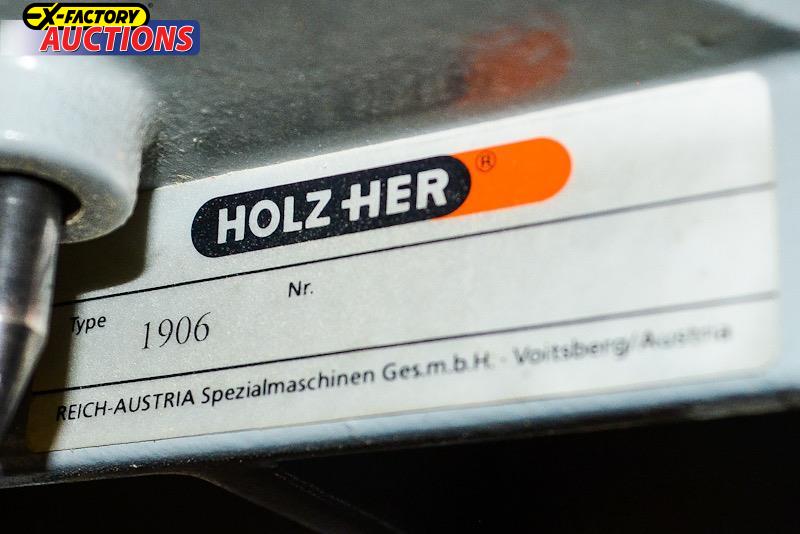

  •  "1906" Cartridge-type gluing application system, For EVA & PUR glue, with 3-1/2 Minimum Heat-up time, Automatic recharge, 4-Cartridge Magazine capacity

  • Pressure section, with (1) Large driven roll & (2) Small idler rolls, All rolls with Pneumatic individual control via PLC

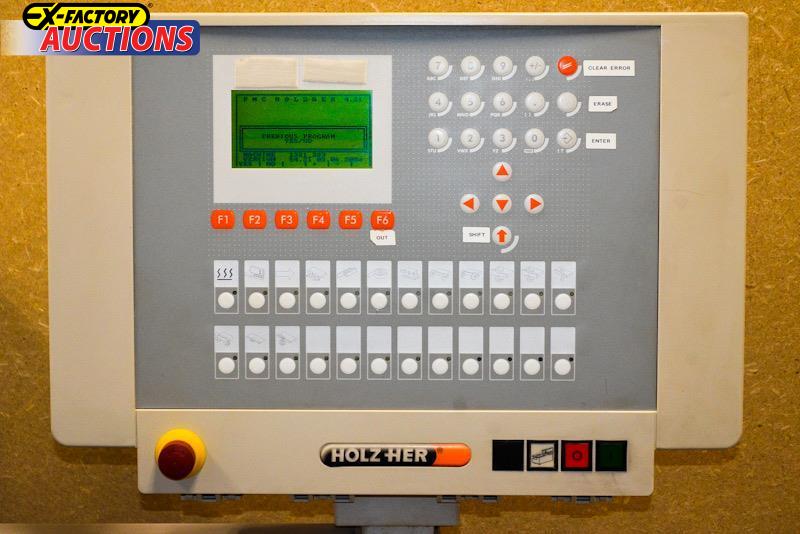

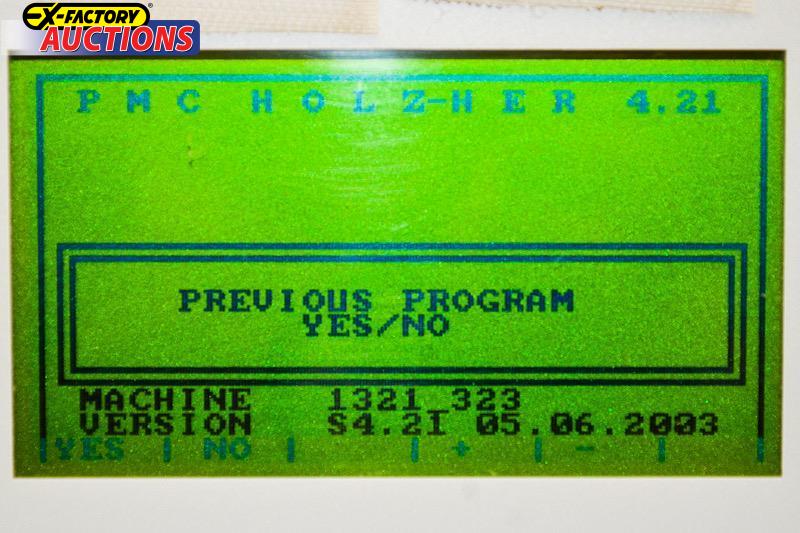

  • Microprocessor PLC Control, with 5" LCD Display, Touchpad, PLC for edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, & buffing, & Manual operation without a program

  • Sound enclosure

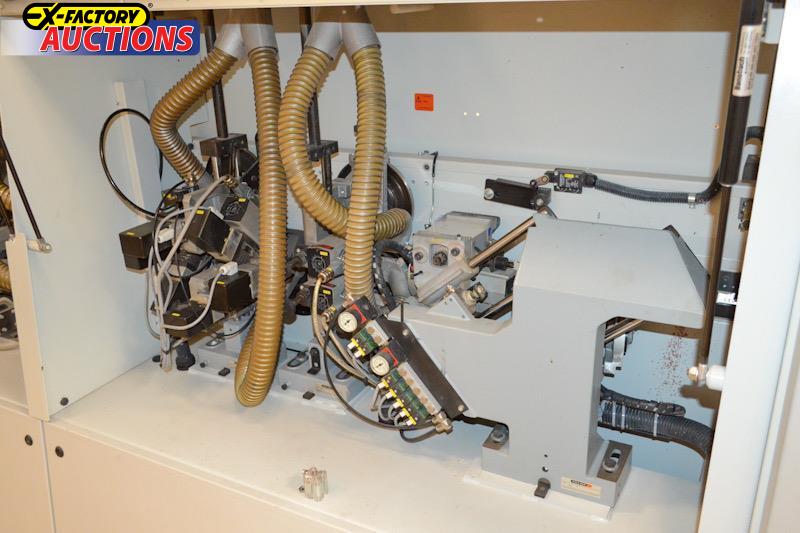

    WORKSTATIONS:

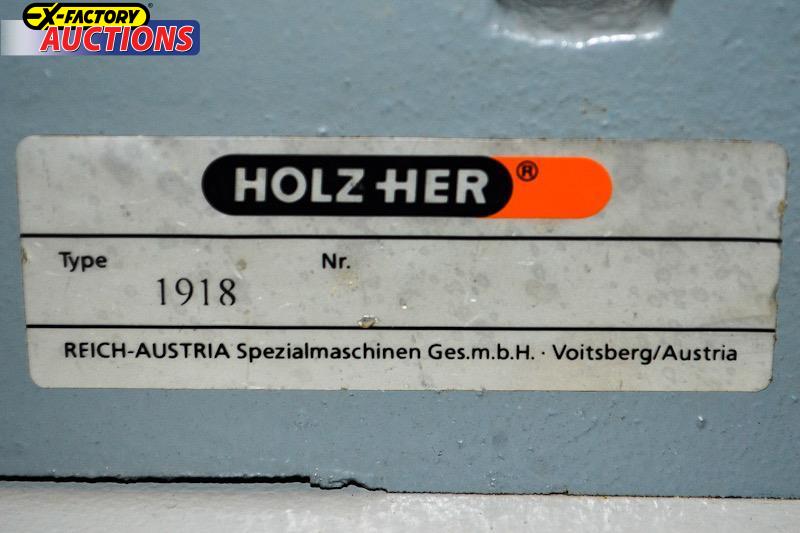

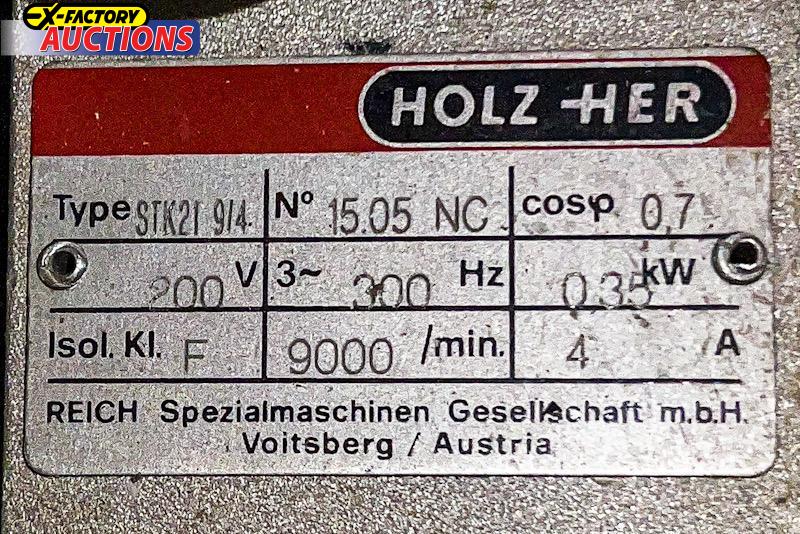

  •  "1918" Front & rear end trim unit, with (2) 0.35 kW (1/2 HP) - 9,000 RPM - 300 Hz Motors & 0° - 10° Horizontal & Vertical tilt

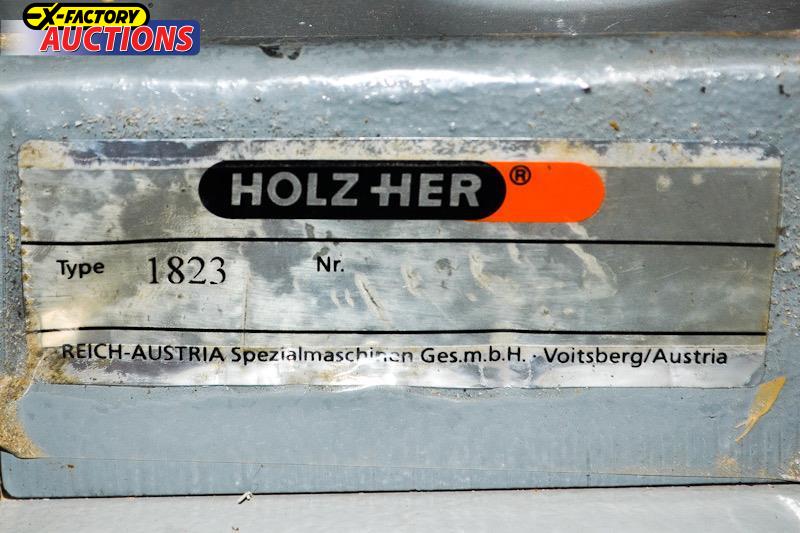

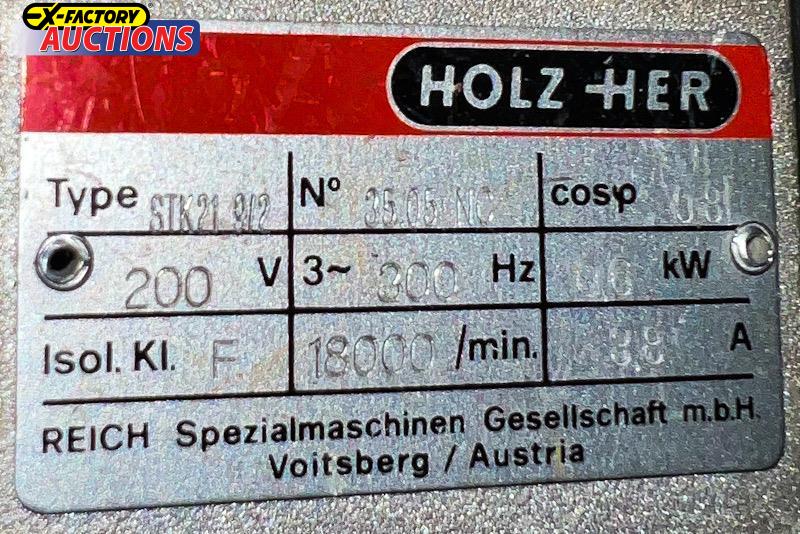

  •  "1823" Top & bottom flush trim unit, with (2) 0.6 kW (3/4 HP) - 18,000 RPM - 300 Hz Motors

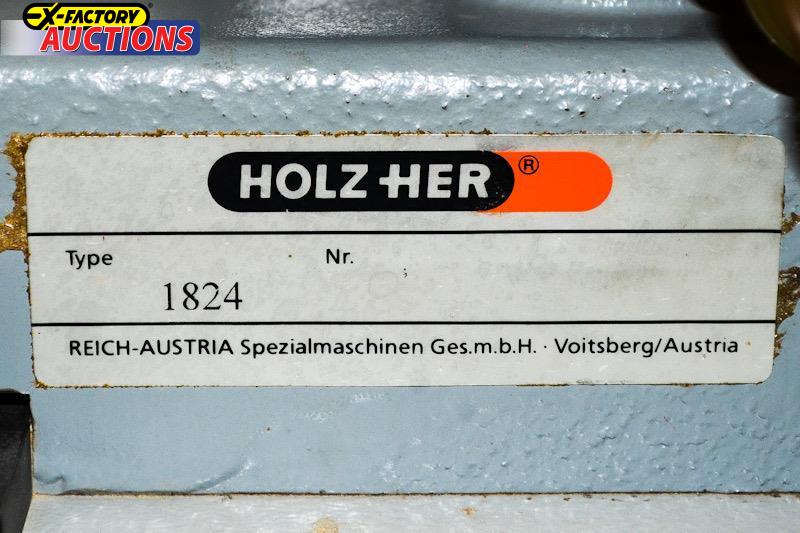

  • "1824" Multifunctional trim unit (flush trim/radius/chamfer), with (2) 0.35 kW (1/2 HP) - 9,000 RPM - 300 Hz Motors, 5 mm (0.20") Maximum radii & flush trim, & 5 mm (0.20") x 45° Maximum chamfer

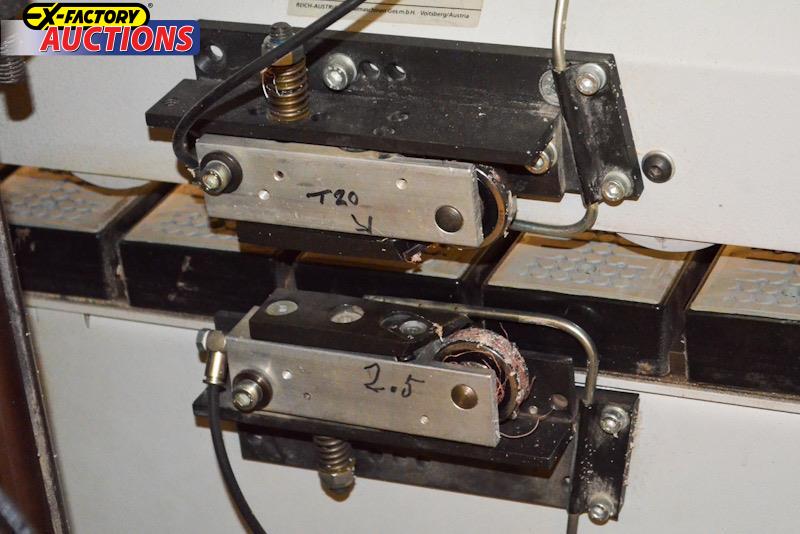

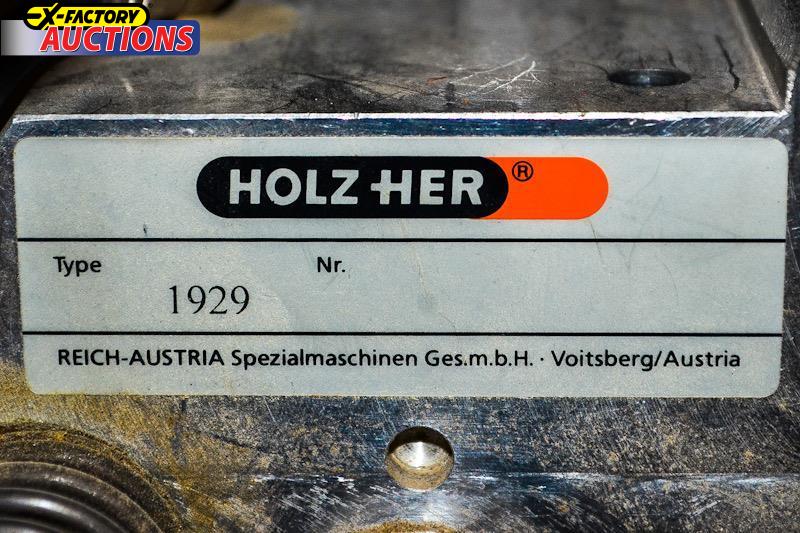

  •  "1929" Top & bottom PVC profile scrape unit, with Reversible insert carbide knives & 3 mm (0.12") Maximum radii

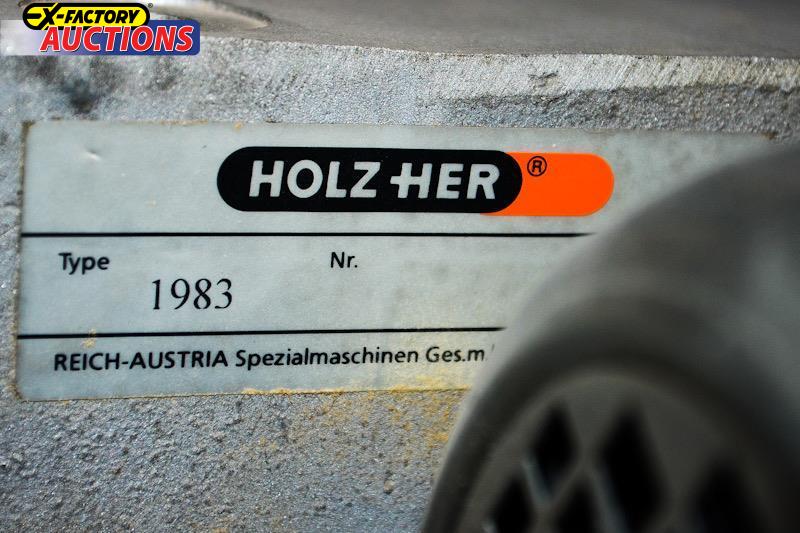

  •  "1983" Single-motor profile trim (corner rounding) unit, with 0.6 kW (3/4 HP) - 18,000 RPM - 300 Hz Motor

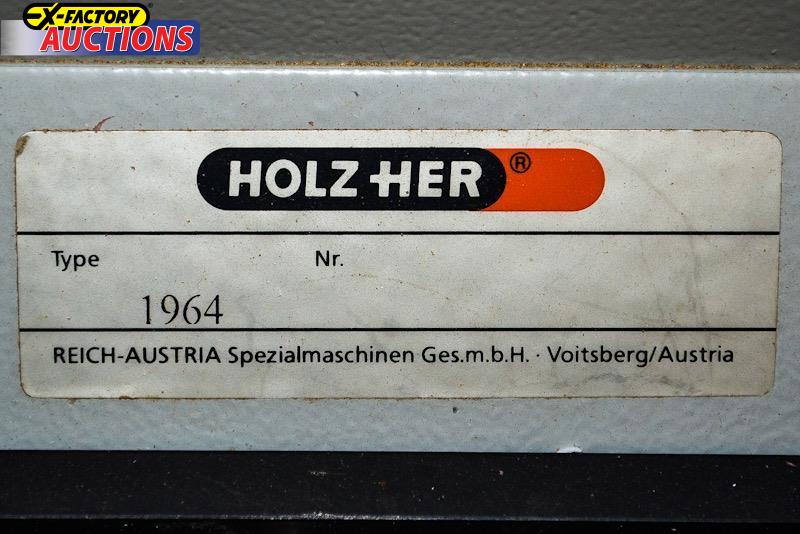

  • "1964" Pneumatically-controlled Top & bottom glue scrape unit

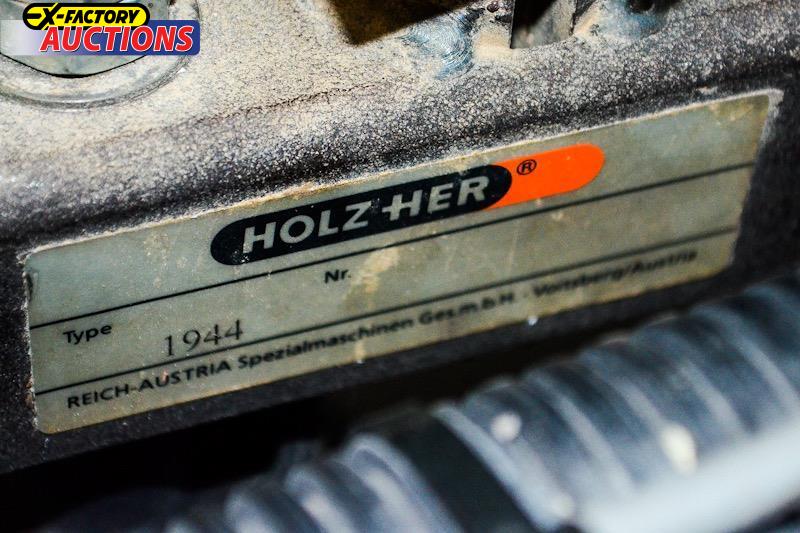

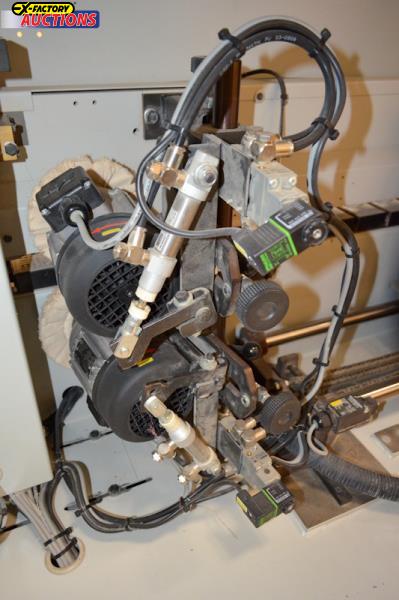

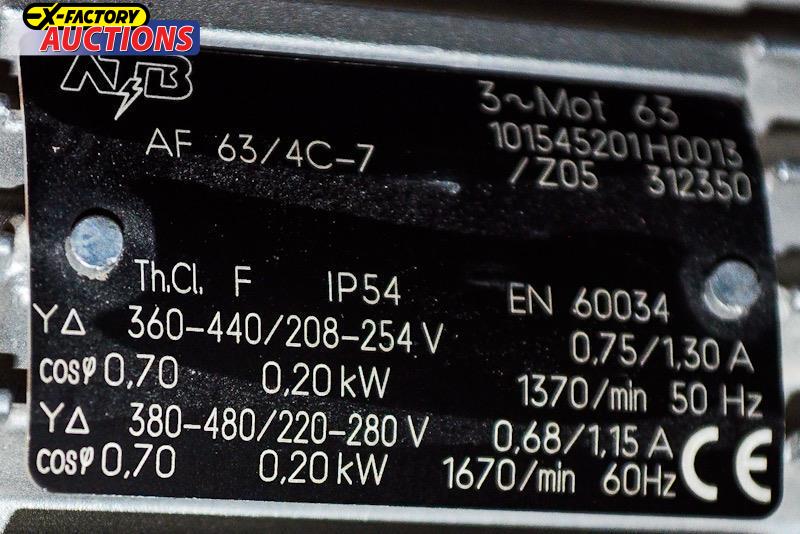

  •  "1944" Top & bottom buffing unit, with (2) 0.20 kW (1/4 HP) 1,670 RPM Motors & 45° Swivel

  • Dimensions of this specific machine with outboard support extended: 252" x 63" x 70" H.
