COMEVA "C-400 B" DOOR MACHINING CENTER
Equipment Location: Zeeland, MI
DM-320017   |  Lot # 2471-14
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Amanda Solomon
(877) 580-5844 ext. 374
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com



Opening Bid: $ 1,500   Reserve Not Met
The current Bid has not reached or exceeded the Seller's Reserve price for this Lot.
This Lot will not be sold until the current Bid has reached or exceeded the Seller's Reserve price for this Lot.
Next Bid Increment: $ 1,500


Your Bid:
(Click or Enter Bid) 		  Place Your Bid

Your Proxy Bid:
   Place Proxy Bid  Help

Proxy Bid:

A Proxy bid is the maximum dollar amount you are willing to bid for a specific lot. The system automatically bids up to that amount on your behalf against competing bidders (if any).

EXAMPLE: You enter a "Max Proxy Bid" amount of $500 when the lot's reserve is met and the high bid is $100.  Your Proxy Bid automatically raises your bid to the next minimum bid amount, which in this example is $125, and thus makes you the current high bidder.  When a competing bidder bids $150, the system again automatically places a next increment bid of $175 for you, making you the high bidder again.  If a competing bidder bids again, proxy bidding continues until your "Max Proxy Bid" of $500 is exceeded by a bid from a competing bidder. If your high bid is not exceeded by the end of the Auction, then you win the lot.

ADVANTAGES: Should your schedule prevent you from participating near the closing of an Auction, your "Proxy Bid" quickly bids on your behalf.  Also, when your and a competing bidder's proxy bids are of equal amount ($500 in the example) at the end of the Auction, your bid wins, because you entered your $500 "Proxy Bid" amount first.
# of Bids: 0
End Time:
Auction Closed.
Auto Refresh:   Enable Refresh Every
Brand/Model: COMEVA "C-400 B"
Year MFG: 2017
Machine Type: DOOR MACHINING CENTER
Serial #: M -160272
Elect./Voltage: 400 V, 50/60 Cy, 3 Ph.
Location: Zeeland, MI
Condition: Good condition
Dimensions: 110" L  x  80" W  x  60" H
Weight: 1,654 Lbs (estimate)
Loading: $ 0 Loading fee
Comment: Total of (7) Routers - for all machining operations on a door!
Buyer Premium: 12.5%
Description:

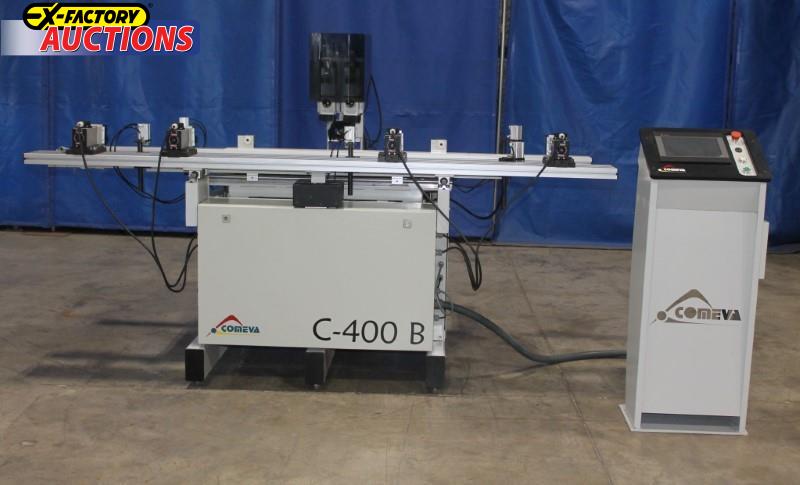

COMEVA C-400 B Programmable European Door Milling Machine:

Specifications:

  •  Maximum door length, X-Axis 96" (2,440 mm). Maximum machining length from center to center of the farthest slots is 74.8" (1900 mm) based on  a 120 mm hinge length.
  • Working field Y-Axis 23.6" - 39.3" (600- 1,000 mm) min/max door width.
  • Working field "Z" axis 1.18" - 2.36" (30 - 60 mm) min/max door thickness.

    Positioning:
  • NC Controlled working table for X-, Y- & Z-axis  part positioning & processing. X- Y- & Z- Axis movement via hardened round ways & ground ball screws.

    Work Table:

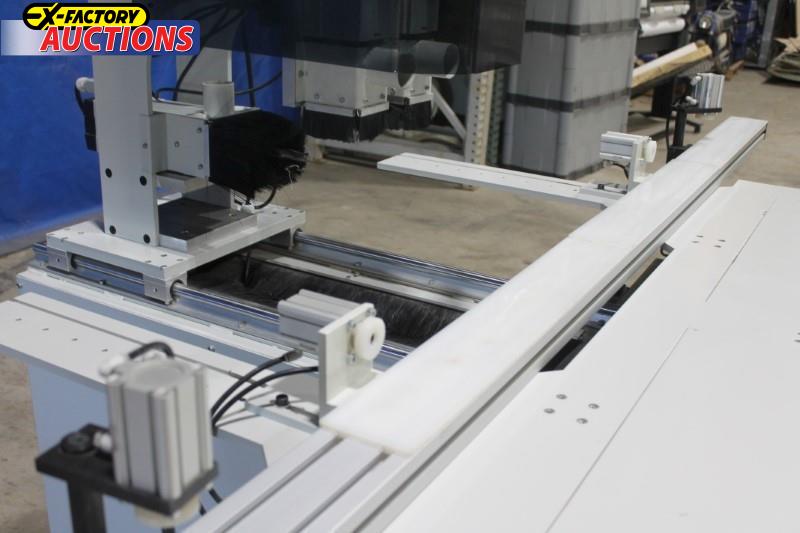

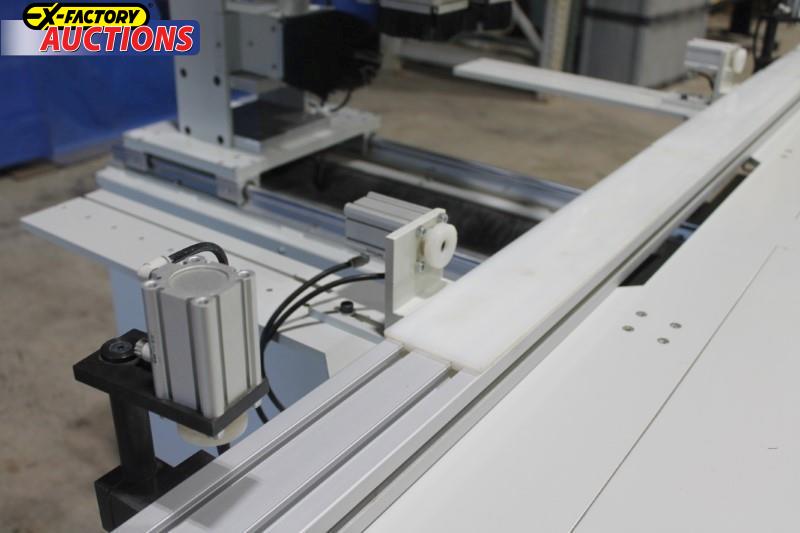

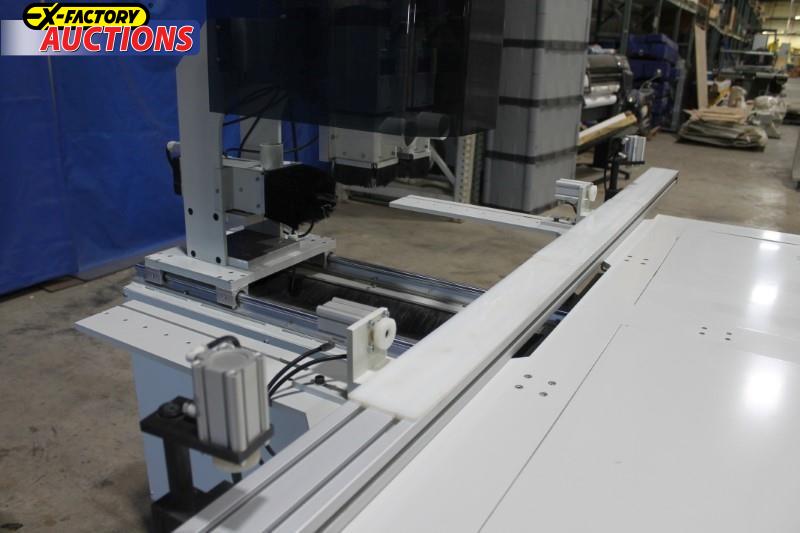

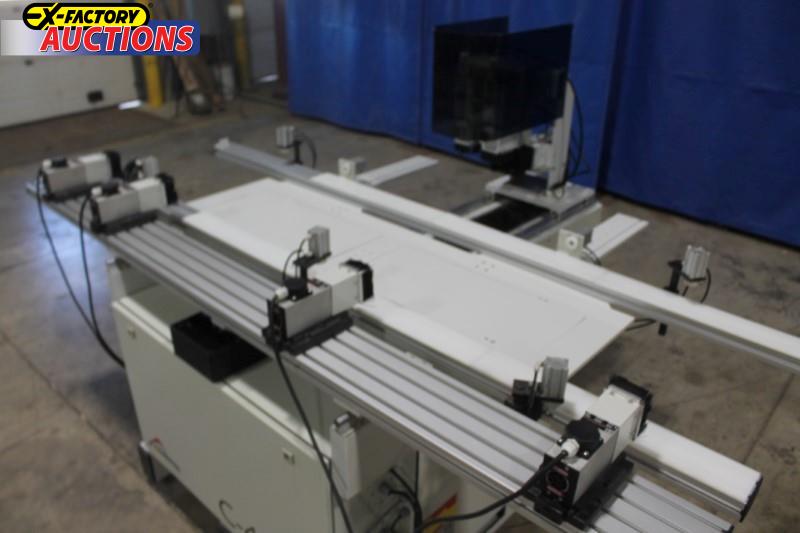

  • (2) NC Controlled extruded aluminum support rails with (6) Non-Marking manually positioned pneumatic panel clamps.
  • (1) NC Controlled extruded aluminum support table for "Hinge Plate" router spindles.

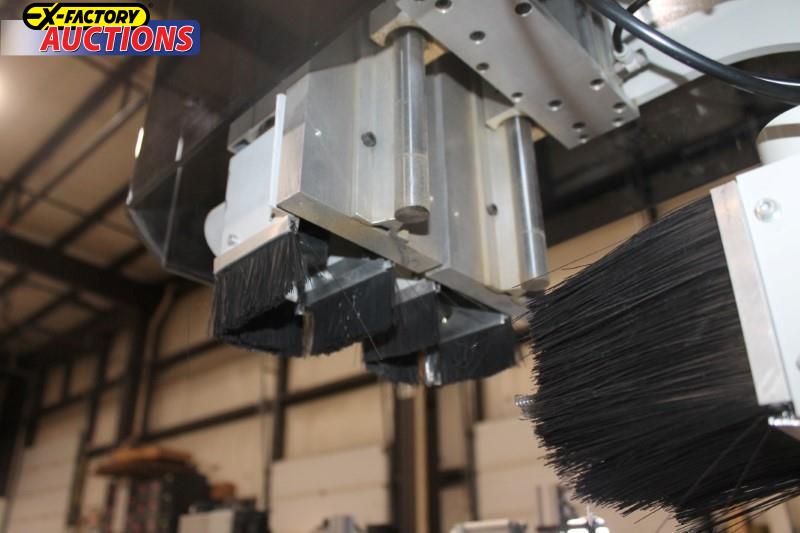

    Machining:

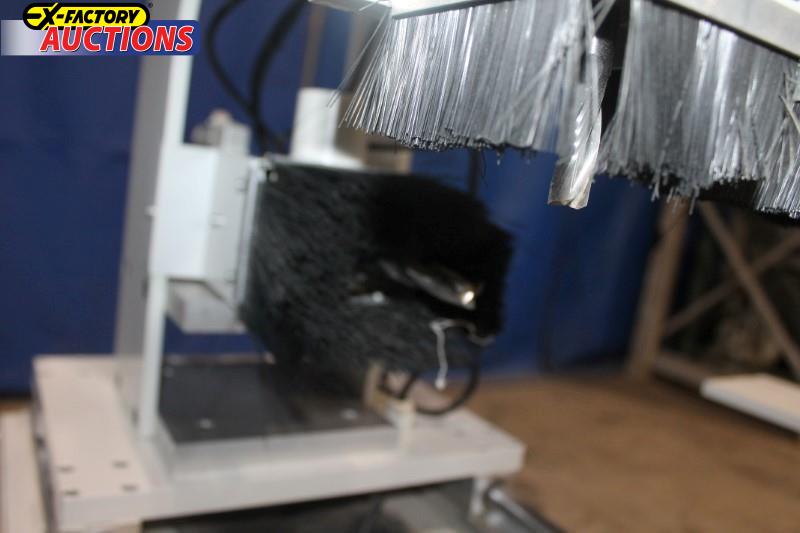

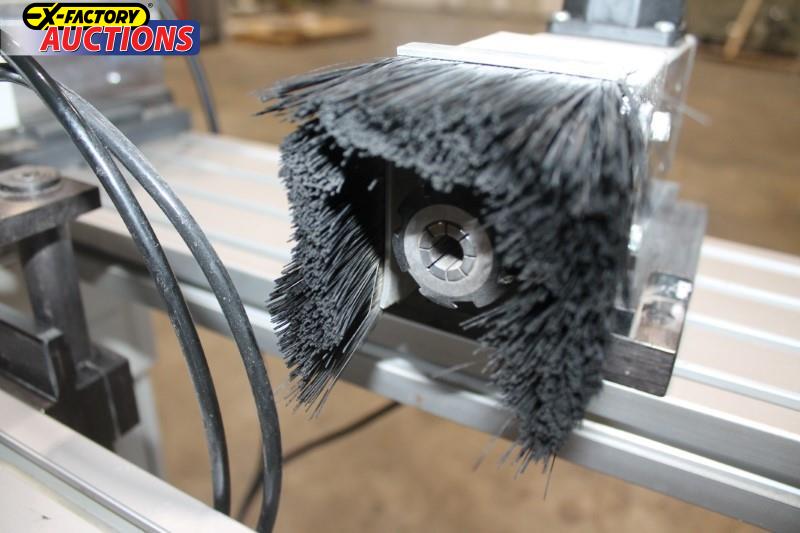

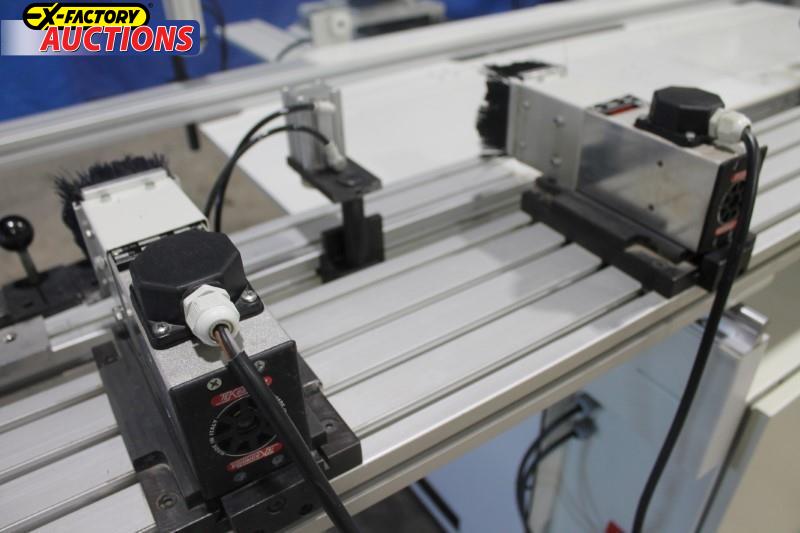

  • (4) Manually adjusted 0.5 HP (0.37 kW), 12,000 RPM air cooled "Hinge Plate" router spindles with ERC 32 collets, RH rotation.
  • (1) NC Controlled 3 HP (2.2 kW) air cooled 12,000 RPM horizontal "Case Lock" router spindles with ERC 32 collets, RH rotation.
  • (2) NC Controlled 2 HP (1.5 kW) air cooled 12,000 RPM vertical "Hardware" router spindles with ERC 32 collets, RH rotation.

    Operator & Machine Control:
  • Separate control console with "ADTECH CNC 4640"  Controller with numerical and function keyboard;
  • Monitor displays programming graphics, machine data & subroutines, runs production programs while programming and editing
  • Programming storage for 30 individual programs.
  • Includes: Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by Warranty on parts.


    Available Options at additional cost (when ordered with machine from the factory):
  •  Additional 0.5 HP (0.37 kW), 12,000 RPM air cooled "Hinge Plate" router spindles with ERC 32 collets = $1,976.00 each.
  •  Engineered & Manufactured by COMEVA S.L, in Spain.


    Machine State: Cleaned & placed in storage
    Inspection: Available for Inspection (By Appointment Only)
 Final Removal Date: 2/15/2023
