HOLZ-HER "1623.1" BORING (2-HEAD LINEBORER)
Equipment Location: BLUE ISLAND, IL
BM-238273   |  Lot # 003
Additional Photos (Click to view Larger)

For Immediate Answers Contact:
Kevin Welker
(877) 580-5844 ext. 316
Intl. +1 (704) 841-2001



If not available, try his/her backup:
Talice Luna ext 379
talice@exfactory.com

[BM-012383]


This is a non-auction item up for sale. If interested, please call Kevin Welker at (877) 580-5844 ext. 316 or click on the link below.


Event: C-V CUSTOM COUNTER TOPS & CABINETS
Brand/Model: HOLZ-HER "1623.1"
Year MFG: 1987
Machine Type: BORING (2-HEAD LINEBORER)

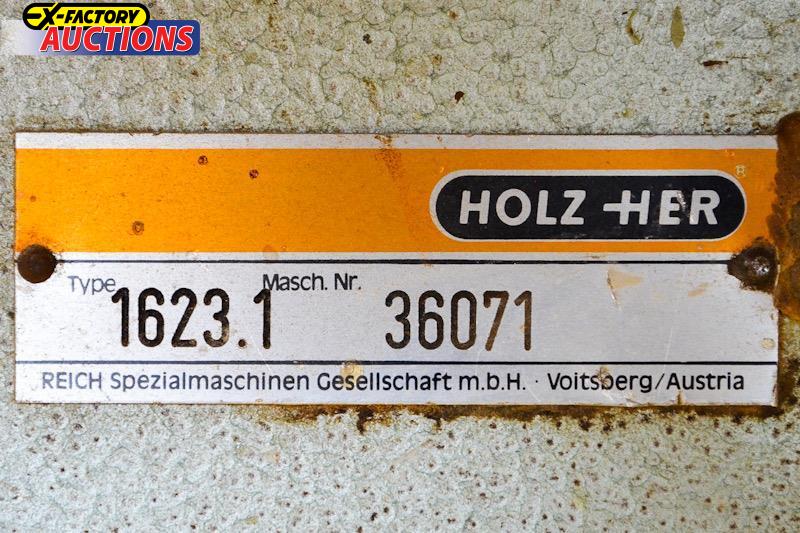

Serial #: 36071
Elect./Voltage: 440 V, 60 Cy, 3 Ph.
Location: BLUE ISLAND, IL
Value New: $ 14,800
Negotiable Price: $ 2,700     Make an Offer
Condition: Good condition
Dimensions: 80" L  x  43" W  x  66" H
Weight: 620 Lbs (estimate)
Loading: Seller Loading
Comment: Adjustable pneumatic stop for incremental line boring!

Description:

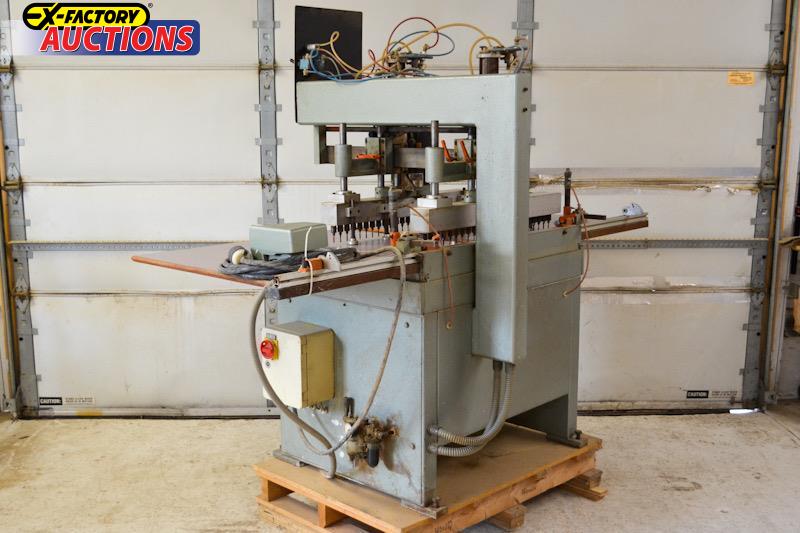

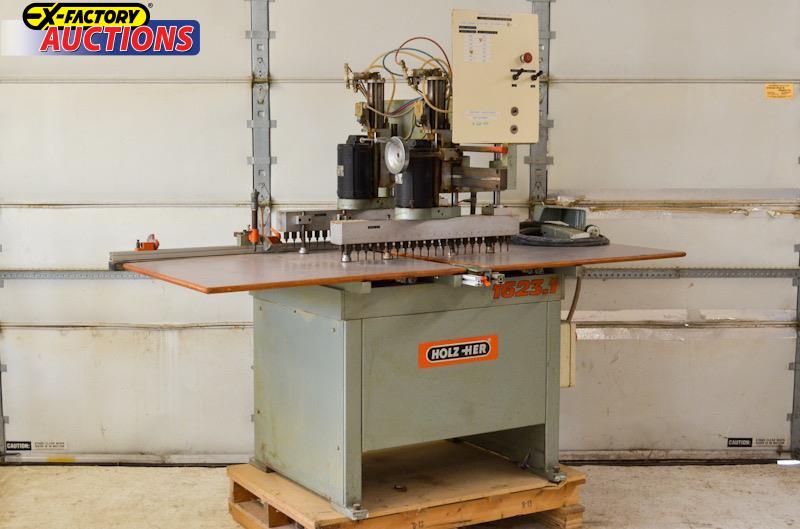

46-Spindle 2-Head Line Boring Machine

  • Table size 29" x 37" x 32-1/2" H

  • Working width: 700 mm (27.56") with Horizontal clamping, Unlimited without Horizontal clamping on (1) side

  •  Space between hole track 150 - 650 mm (5.91" - 25.59")

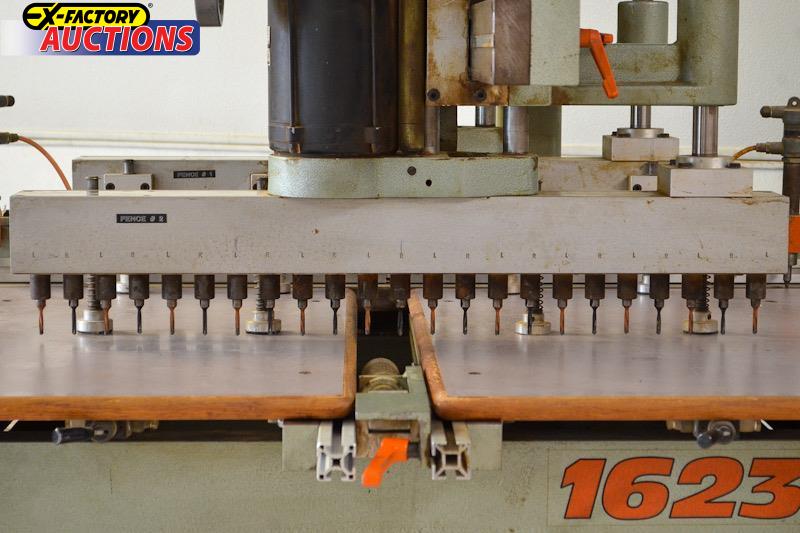

  •  Drill stroke 100 mm (3.94"), Spindle centers 32 mm (1.26"), Chuck capacity 10 mm (0.39")

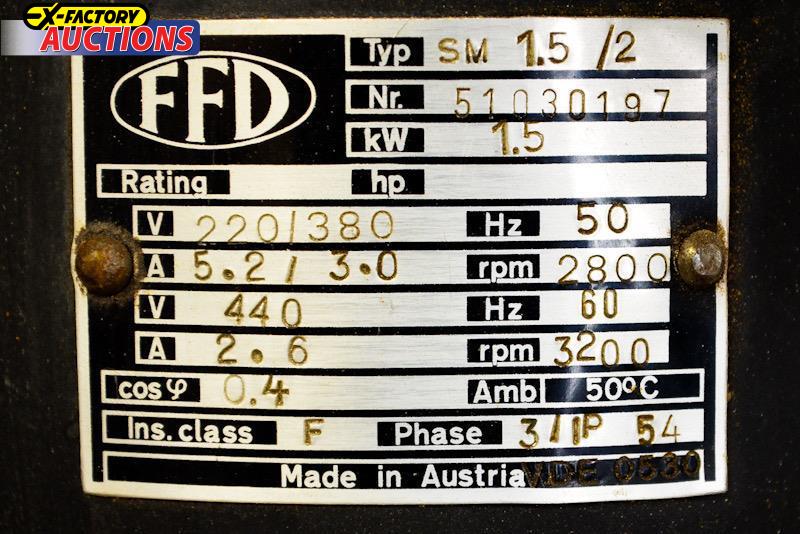

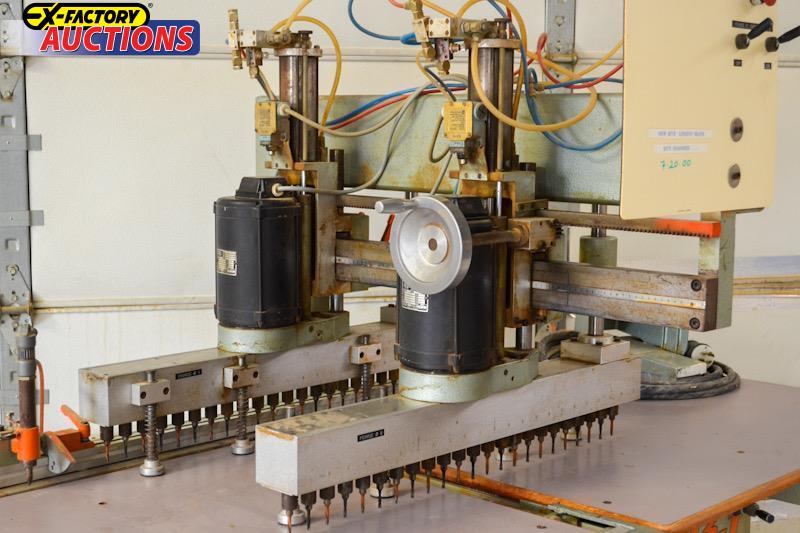

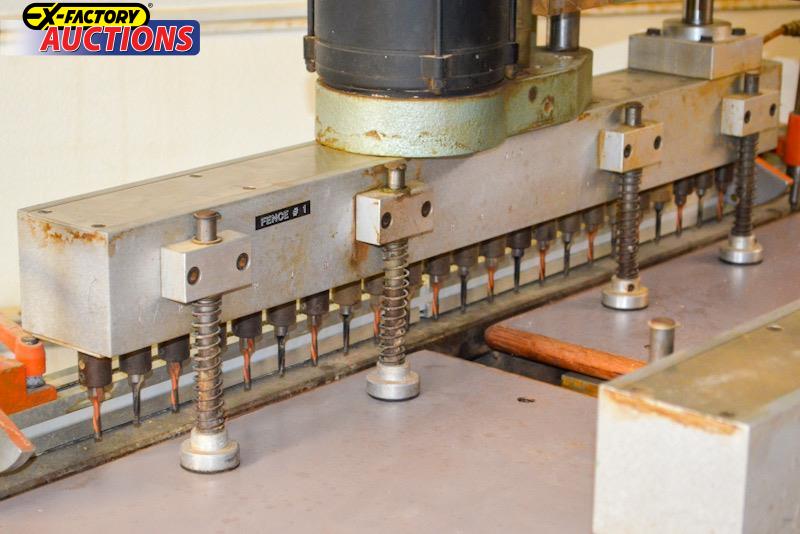

  •  (2) 23-Spindle Heads, each Head with (12) Left-hand & (11) Right-hand rotating spindles, 1-1/2 kW (2 HP) - 3,200 RPM Motor, 3-Position Pneumatic drill depth stop, & Spring-loaded hold-downs

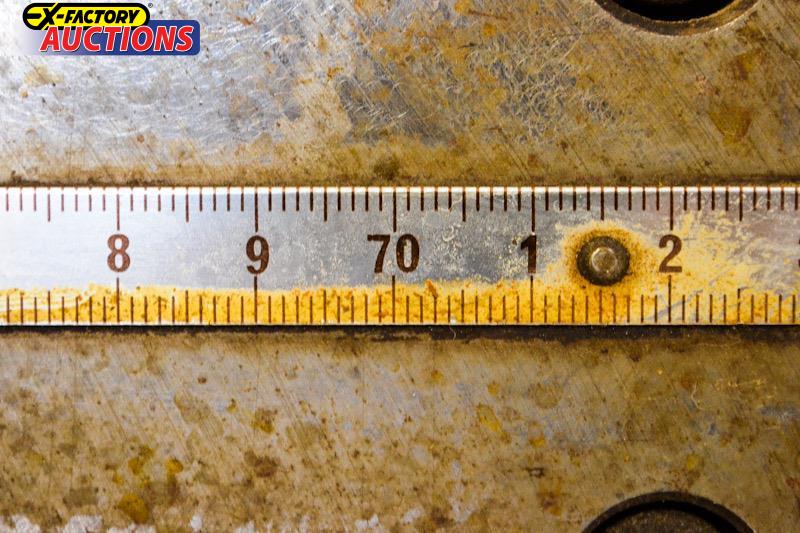

  •  Table with Aluminum fence, (4) Flip stops, Pneumatic pin stops for continuous line boring & (2) Adjustable pneumatic finger clamps

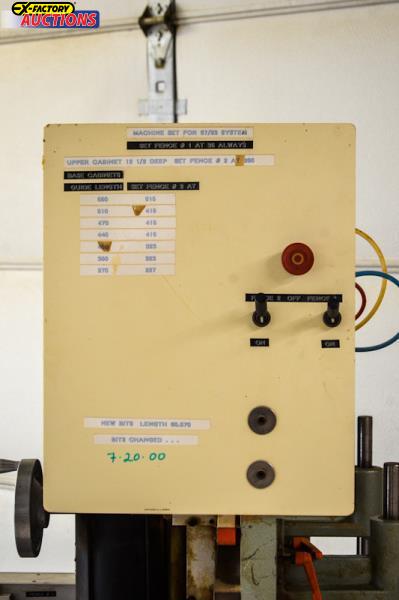

  • Foot pedal control

  • Dimensions with pallet: 80" x 43" x 74 H
