Item # BP-011329
|
|
# of Bids: |
57
|
| End Time: |
Auction Closed.
|
| Brand/Model: |

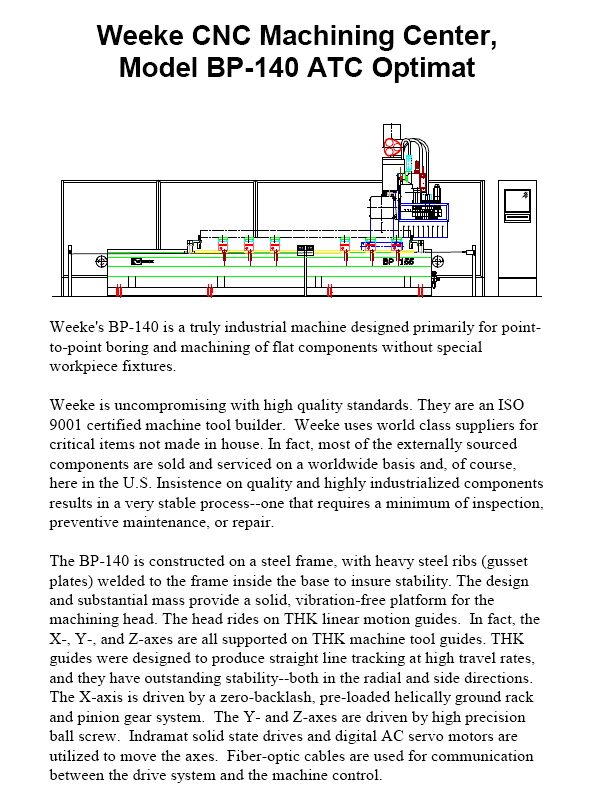

WEEKE "BP-140" |
| Year MFG: |
1997 |
| Machine Type: |
CNC P.T.P. MACHINING CENTER W/ATC |
| Serial #: |
0-250-05-2315 |
| Elect./Voltage: |
208-220/440, 60 Cy, 3 Ph. |
| Location: |
OSCEOLA, WI |
|
Dimensions: |
4025" L x 2133" W x 1970" H |
|
Weight: |
9,020 Lbs |
| |
|
| Comment: |
Great Looking Machine and still in operation! |
Work area cap.: X-axis: 110.25" (2,800 mm), Y-axis: 39.3" (1,000 mm) and Z-axis: 6.7" (170 mm); boring unit with (15) independent vertical spindles, (10) in X-axis, (5) in Y-axis with, (1) special separate spindle for up to 35 mm dia. drills,
 (4) Horizontal spindles with (1 + 1) in X-axis for edge boring in the left & right hand panel edges and (1 + 1) spindle for edge boring in the rear panel edge.

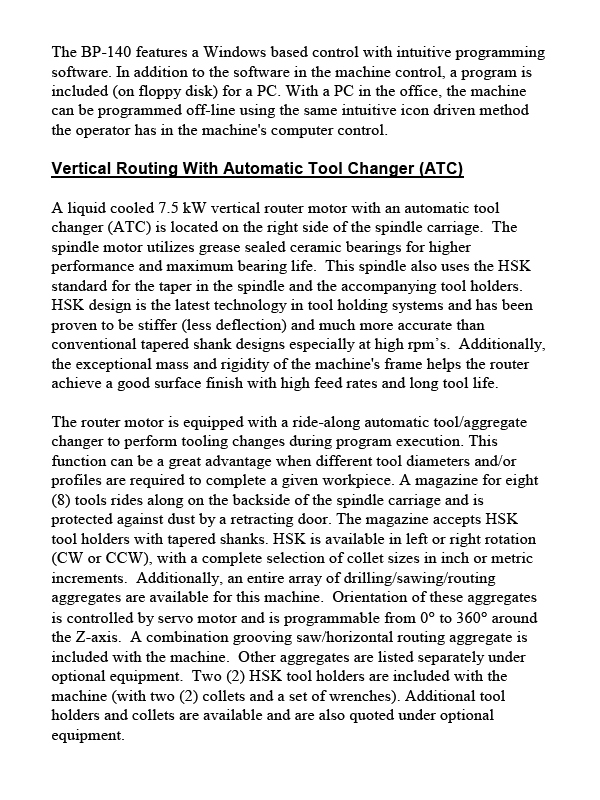

Equipped with: (1) 8 HP High speed vertical router with on board - ride along 8-tool Tool Changer (HSK63) tool holders) for "on the fly" tool changes, router equipped with 360° C-axis rotation around operating unit for various aggregates capable of machining 360° with the (+/- 180°) rotation operating head.

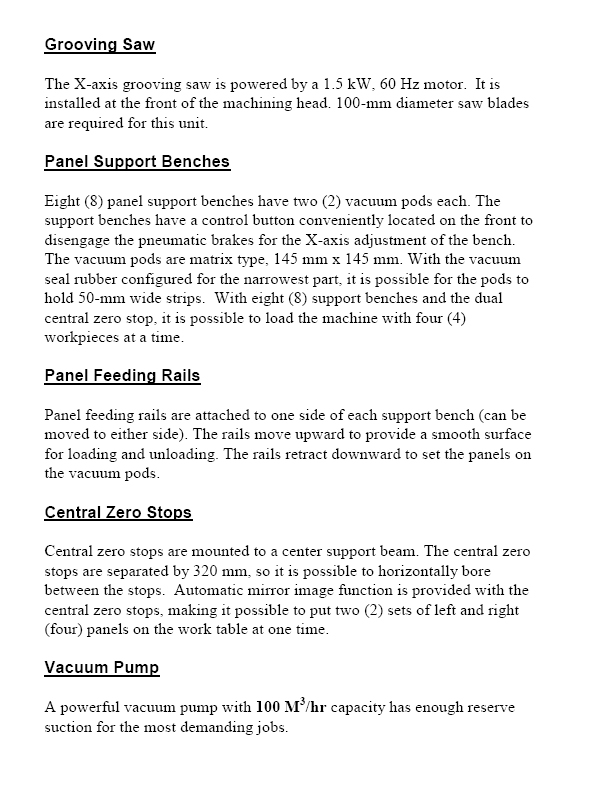

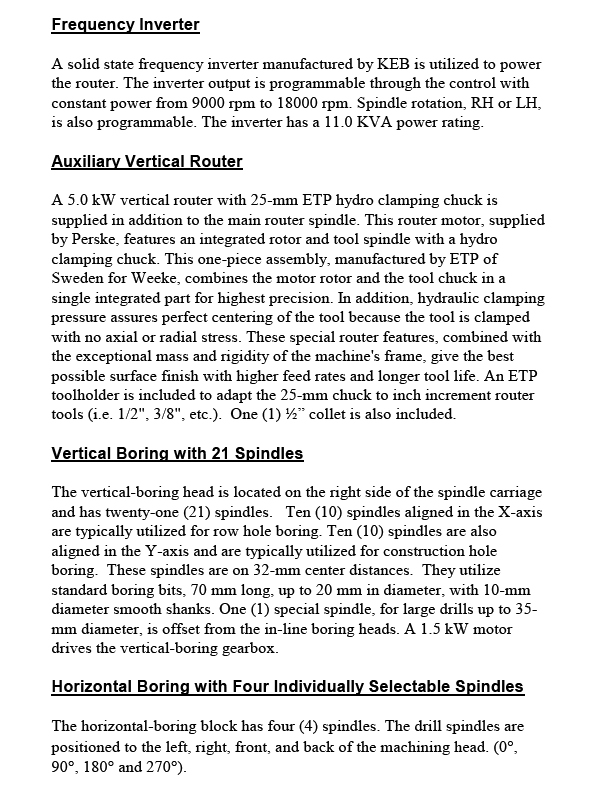

Router powered by 11 KVA frequency inverter w/programmable 9,000 - 18,000 RPM constant power spindle speed; 2 HP grooving saw with 100 mm dia. blade for X-axis operation.
Work area with: (8) Moveable support rails w/side mounted raise & lower panel feeding rails, (2) square matrix vacuum cups ea., (8) pneumatic backstops for large panels, (2) movable pneumatic side stops and the dual central zero-stop creates (2) working zones and allows for (2) workpieces at a time.

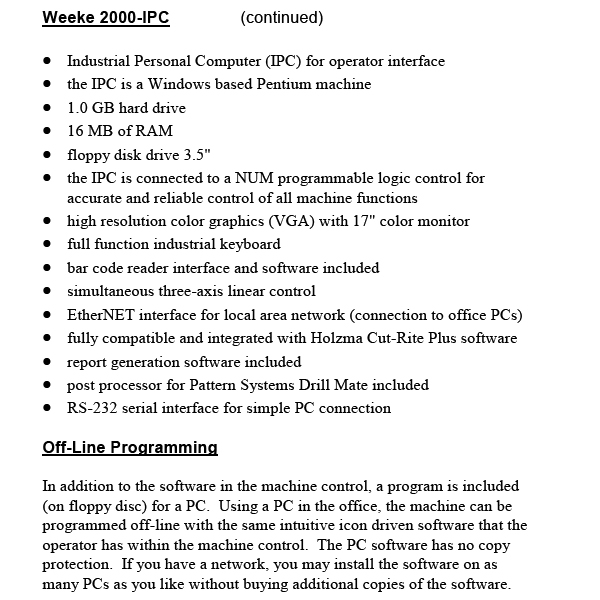

WEEKE "HOMATIC-2000" Windows based controller w/WoodWOP 4.0; linear, circular & helical interpolation; NUM programmable logic control machine operating system, 17" color graphic monitor, industrial keyboard for data entry, 3-1/2" floppy disk drive, 2.0 GB hard drive, 32-bit processor.
EtherNET interface for LAN connection to office PC, RS-232 serial interface for simple PC connection; all mounted in separate free-standing control cabinet.
Includes: WoodWOP 4.0 Programming Software.

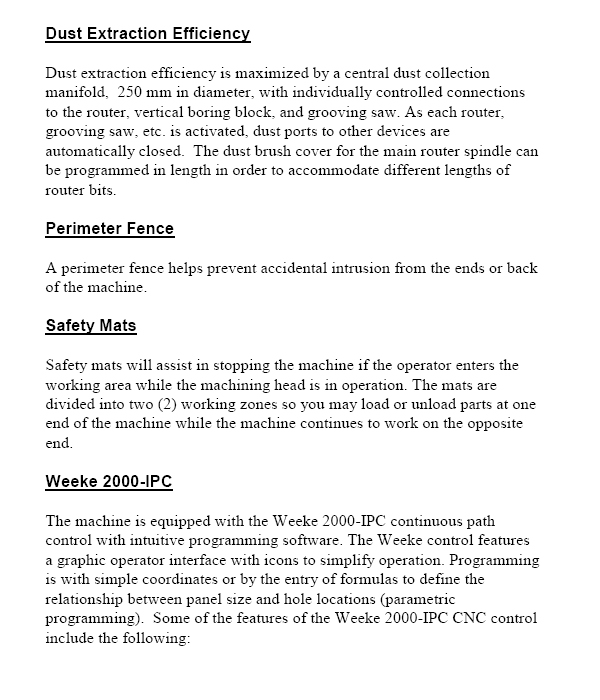

Complete with: 100 cbm/Hr Vacuum pump, man-height safety enclosure around rear & sides of machine, 2-zone safety lights (will stop machine if operator enters work area).
Final Removal Date: 5/23/2009
|
